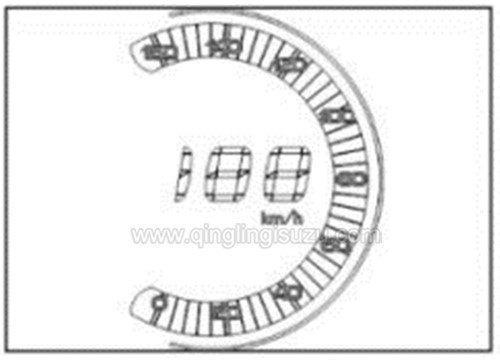

Speedometer
The speedometer indicates the speed of a vehicle(km/h).
Odometer
The odometer records the accumulated distance of the vehicle traveled.
Engine tachometer
The engine tachometer indicates engine speed in revolutions per minute (rpm), and the red area indicates the critical engine rotation speed.
Attention
Please park the vehicle when its tachometer needle is in the red zone, otherwise, it can cause severe damage to the engine.

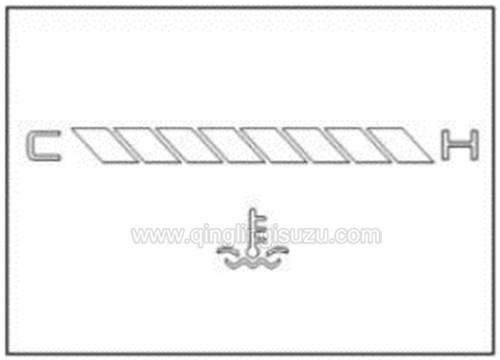

Water temperature gauge
When the Starting switch is "ON," the water temperature gauge will indicate the engine’s coolant temperature.
The two letters "C" and "H" on the dial indicate "low temperature" and "high temperature". The coolant temperature is normal if the water temperature gauge needle is within the yellow line.
Attention
The engine is overheating if the needle is in the red line area, and it will damage the engine if the status lasts.

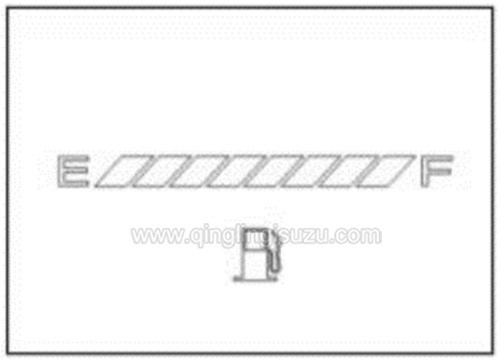

Fuel gauge
The fuel gauge will indicate the fuel level inside the fuel tank. When the Starting switch is on the "LOCK" (locking) position, the pointer does not return to the "E" (empty) mark, but maintains the indicated fuel level in the tank. The letters "F" and "E" indicate "full" and "empty".
Attention
Keeping the fuel tank low or empty is not good for the vehicle.

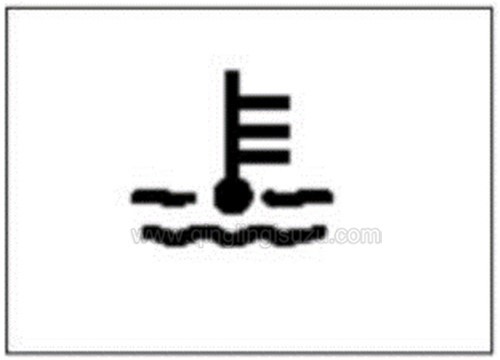

Water temperature light
It shows the temperature of the engine coolant is too high. When the light goes up, you should immediately pull over and keep the engine running at an idle speed, and then continue driving only after it cools down to a normal temperature.

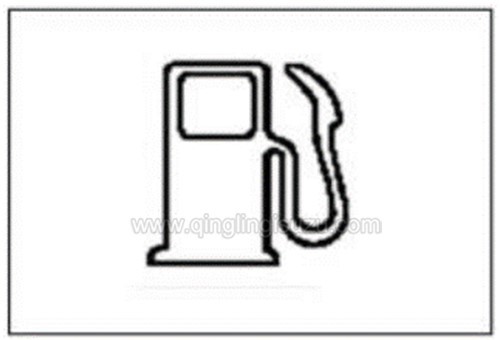

Low fuel level light
A low fuel light displays insufficient fuel.
Attention
When this light is ON, it means that the fuel is about to run out and needs a refill as soon as possible.
