What’s The Difference Between 100P, 600P And 700P Qingling Isuzu's N-Series Light-Duty Truck?

Nov 10, 2021

1. Specific types of N-Series Light-Duty Trucks

The N-Series (ELF in Japan) is Japan's representative light-duty truck, which was launched in 1959. It was introduced into China at the beginning of the 21st century. Since Qingling Isuzu factory combines the quality characteristics of Japan and China, we have 100P, 600P and 700P newly named Qingling Isuzu's light-duty truck models.

N-Series light-duty trucks support a wide range of applications including arterial transportation and inner-city delivery. This N-Series light-duty trucks chassis can also be applied to various special vehicles, such as van truck, fire fighting truck, drop side truck, water tank truck, aerial working platform truck, dump truck and refrigerated truck and so on.

Recognized for its outstanding combination of economy, safety, reliability and durability. Now it has become the best-selling light truck in many countries around the world.

2. The difference of Engine & Transmission

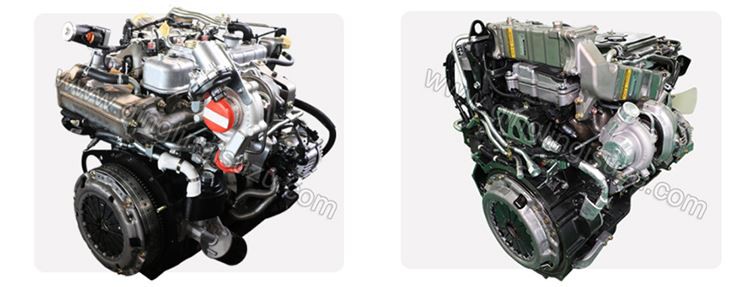

N-Series light-duty trucks use diesel engines. Isuzu offers a wide-ranging line-up of low- and high-displacement engines.

ISUZU 4JB diesel engine, which has the advantages of strong power and low use and maintenance cost (7 liters per 100 km).

ISUZU 4K diesel engine is characterized by an output power of 130 horsepower, electronic injection and Inter cooled supercharging technology, and a supercharger with cooling device.

ISUZU 4H diesel engine’s Displacement: 5.2L, maximum power: 139kW. It has the characteristics of high power, low fuel consumption, reliability and durability, more environmental protection, stronger fuel adaptability and more economy.

Different light truck models are equipped with different engines, as shown in the table below:

Vehicle	Engine Model	Emission standard	Tail gas treatment technology	Horsepower	Displacement	Transmission
100P	4JB1-CN	Euro4	EGR	98PS	2.8L	MSB-5MT
	4KH1CN5LS	Euro5	SCR	98PS	3.0L
	4KH1CN5MD		DPF	115PS
	4KH1CN5HD			130PS
	4KH1CN6LB	Euro6	DPF+SCR	120PS
600P	4KH1-TCG40	Euro4	EGR	120PS		MSB-5MT
	4KH1CN5HS	Euro5	SCR	130PS
	4KH1CN5HD		DPF	130PS
	4KH1-TCG51		PF	120PS
	4KH1CN6LB	Euro6	DPF+SCR	120PS
	4KH1CN6HB		DPF+SCR	130PS
700P	4HK1-TCG40	Euro4	EGR	190PS	5.2L	MLD-6Q
	4HK1-TC50	Euro5	DPF	205PS
	4HK1-TC51	Euro5	DPF	190PS
	4HK1-TCG61	Euro6	DPF+SCR	189PS
	4HK1-TCG60	Euro6	DPF+SCR	205PS

3. The difference of Payload

For 100p, 600P and 700p payloads, refer to the following table:

Vehicle Model	GVW	Curb Weight	Payload
100P	3.66-7.23T	1.75-2.2T	1.95-5.2T
600P	3.66-7.23T	2.15-2.54T	2-5.2T
700P	8.1-11.4T	3.2-3.55T	5-8T

4. The difference of the length of the additional body

Different light trucks can be loaded with different body lengths. Taking the van truck as an example, the following table shows several common truck box specifications. If necessary, it can be used as a reference.

Vehicle	Wheel	Wheelbase	Overall Dimension(L x W x H)	Box length
100P	4 wheels	2490mm	4870x1785x2670mm	3142mm
	6 wheels	3360mm	5995x2150x3100mm	4250mm
600P	6 wheels	3360mm	5995x2150x3100mm	4250mm
	6 wheels	2765mm	5300x1950x2800mm	3600mm
700P	6 wheels	3360mm	5995x2400x3400mm	4130mm
	6 wheels	3815mm	7010x2396x3465mm	5012mm
	6 wheels	4475mm	8045x2396x3465mm	6050mm
	6 wheels	5200mm	8955x2400x3465mm	7028mm
