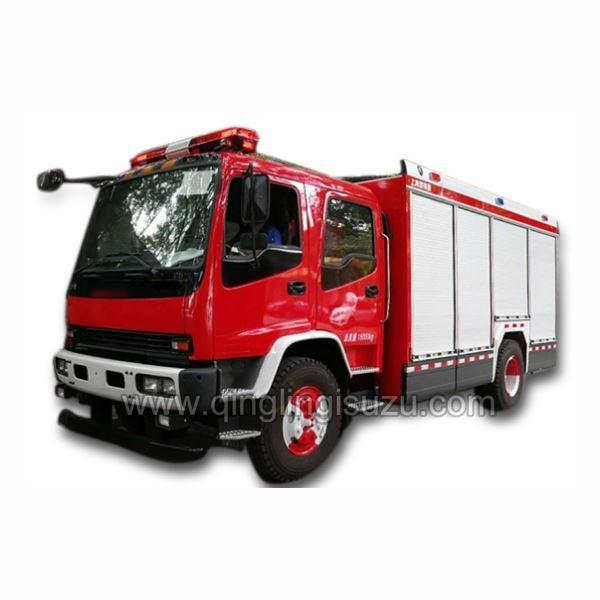

QINGLING FTR 4x2 Water Firefighting Truck

Chassis Dimensions and Parameters

Overall Dimension(L x W x H)

7570×2490×2810mm

Wheelbase:

4500mm

Front/ Rear Wheel Distance:

1960/1855mm

Front/Rear Suspension

1335/1735mm

Rear Axle Ratio:

5.571

Approach/Departure angle:

15/17°

Leaf Spring:

7/7+7

Weights and Capacities

Curb Weight:

5250kg

Payload:

12555kg

GVW:

18000kg

Axle Loads:

6500/11500kg

Engine

Engine Model:

4HK1-TC50

Max output:

150Kw

Displacement:

5193ml

Horsepower:

204Ps

Exhaust Gas Treatment Technology：

DPF

Transmission

Transmission:

MLD-6Q

Forward Gear:

6 Speed Gear

Backward Gear:

1 Speed Gear

Brake

Air Brake

Generator

24V-120A

Cab

Number of Seats:

3

Chassis

Drive Type:

4x2

Tires:

7(Including Spare Tire)

Tire Model:

11.00R20 16PR

Fuel Tank

Number:

1

Capacity:

200L

Configurations:

1

Power Steering System

2

Air Conditioning

3

Retro-reflective Marking

4

ABS

5

Free Maintenance Battery

6

Central Lock

7

Power Window

8

Data Recorder

Water Tank

Capacity:

4000L(Water)+1000L(Foam)

Material：

stainless steel 304

Tank Equipment

Manhole:

1 Pcs manhole with quick lock and open device

Overflow Valve Device

1 Pcs

Liquid Level Sensor:

1 Pcs

Sewage draining exit:

1 Pcs, Manual valve control

Fire Pump:

Model:

CB20.10/15.30

Assemble Type:

Rear-mounted

Main perfromance:

Situation 1: When pressure is 1.0MPa, flow is 30L/s,
Situation 2: When pressure is 2.0MPa, flow is 15L/s

Water diversion time

≤35s

Pipe System

Suction pipe

The pump is equipped with a DN125 water inlet, which can suck water from natural water sources or from liquid tanks

Outer water inlet pipe:

※The diameter of the outer water inlet on the rear side of the pump is DN125, connected to the outside Suction tube, internal buckle tube tooth type interface (seal with stuffy cap); suction Water pipe DN125×4m (2 pieces).
※ There are 1 Normal atmospheric pressure water outlet controlled by DN80 ball valve on the left and right sides of the pump.
※ One DN80 gun pipeline adopts DN80 flexible joint and is controlled by DN80 ball valve.

Water injection pipe:

※ 1 DN65 water injection pipeline, which can directly inject water into the tank through a water pump;
※ There is a DN65 external water injection port on both sides of the vehicle body.

Drain Residual Water Pipe:

To protect the water pump and each ball valve, a residual water valve is installed at the lowest point of the pipeline

Cooling water pipe:

PTO equipped with cooling pipe and stainless steel ball valve.

Fire Monitor:

Model:

PS30W (adjustable)

Rated Flow:

30L/S

Work pressure:

≤1.0MPa

Shooting range:

≥55m

Horizontal rotation angle:

360°

Back leaning Angle：

-30～70°
