CATL Batteries Maintenance For Qingling Isuzu Commercial Electric Trucks

Aug 18, 2022

Common Instructions:

1. Check the vehicle dashboard before starting to ensure no alarm popping out.

2. When the SOC is less than 30% before leaving, go to the nearest station for charging as soon as possible.

3. No more than 150kw·h charging per day; no more than 2 times during daytime, no more than 30 minutes each time, and only 1 time is allowed for more than 30 minutes to prevent the battery in high temperature during summertime. When the temperature is lower than 0℃, charge it as soon as possible to avoid the charging time from being extended due to the decrease in the battery temperature.

4. Charge the battery to 100% at least once every three days, and a charger with more than 700V is required.

5. Do "battery maintenance" at least once a year.


Storage Requirements for the Vehicle Not Used Longer Than 15 Days:

1. Keep the battery power at 40-80% when storing.

2. Storage environment requires ventilation, dry, not subject to direct sunlight, rain, and away from heat sources.

3. Do "battery maintenance" every three months to prevent battery damage.

4. Do "battery maintenance" for the first use after the storage to have the best performance for the battery.

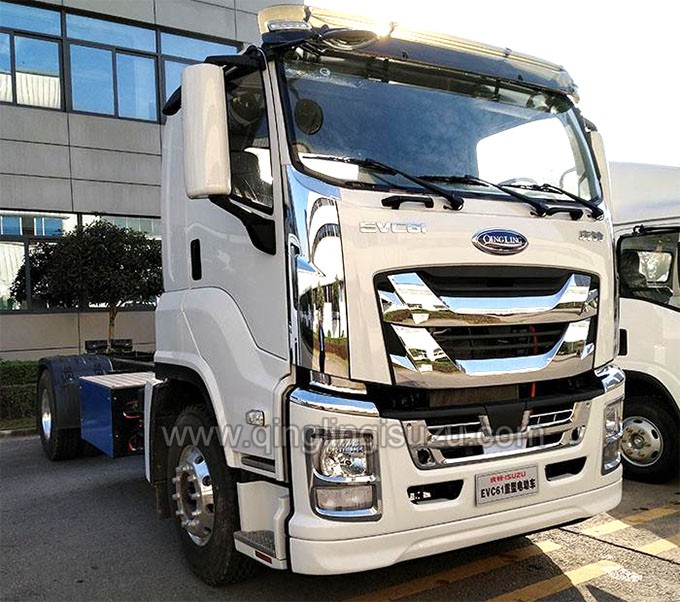

Qingling Isuzu Commercial Electric Trucks

Qingling Isuzu Commercial Electric Trucks

"Battery Maintenance" Method

1. Go to the charger station when the power is approx. 25%-40%.

2. Turn the key to ON position(only light up the dashboard, not in Ready set), turn off the AC, lights, and other electrical appliances, then leave the vehicle stationary for 12-15 hours; however, the stationary time can be divided into 2-3 times in a month if the duty cycle is tight. It needs to be charged 100% after the stationary time.
