China ISUZU NKR light duty 100P Garbage Compactor Truck, and the overall size is 6835×1880×2340mm， with wheelbase 3360mm, The world's leading Isuzu 4KH1-TCG40, engine was developed by Isuzu in Japan, using MSB-5SM manual transmission and if you want this garbage compactor truck,we can equip with the refrigerator, our trucks is equiped with good quality and competitive price. Please contact us, if you wanna know the quotation.
ISUZU CHINA 100P 6m³ Garbage Compactor Specs (Euro V)
Vehicle Model: | QL1040A6HAY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6700×2190×2430mm |
Wheelbase: | 3360mm | |
Front/ Rear Wheel Distance: | 1377/1425mm | |
Front/Rear Suspension | 1015/1525mm | |
Rear Axle Ratio: | 5.375 | |
Approach/Departure Angle: | 24/16° | |
Leaf Spring: | 3/3+2 | |
Weights and Capacities | Curb Weight: | 5120Kg |
Payload: | 2050Kg | |
GVW: | 7300Kg | |
Engine | Engine Model: | 4KH1CN5HD |
Max output: | 95Kw | |
Displacement: | 2999ml | |
Horsepower: | 130Ps | |
Transmission | Transmission: | MSB-5MT |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
Generator | 12V- 60A | |
Cab | Number of Seats: | 2 |
Chassis | Drive Type: | 4×2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16 8PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Top Parameters | Garbage Container Capacity | 6m³ |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Retro-Reflective Marking | |
4 | ABS | |
5 | Tubeless Tire | |
6 | Free Maintenance Battery | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

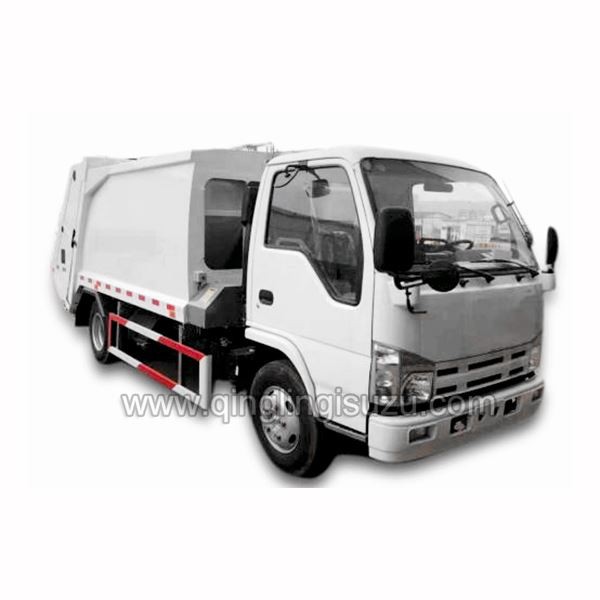

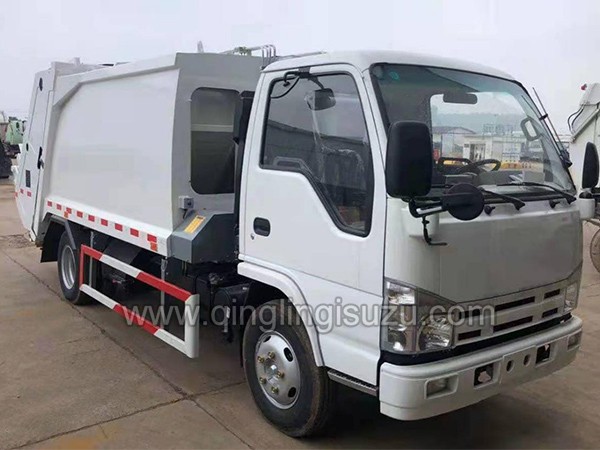

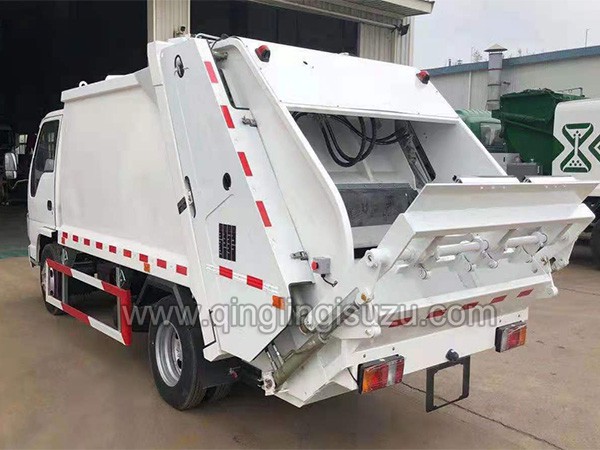

Photo for Reference:
