Qingling Isuzu VC61 10 wheels heavy duty truck, Standard roof one-bed cab, 4565+1370mm wheelbase, Isuzu vehicle emission Ⅴ standard 460 horsepower engine, ZF8S transmission, ABS, direction assistance, air brake.with the best quality and competitive price

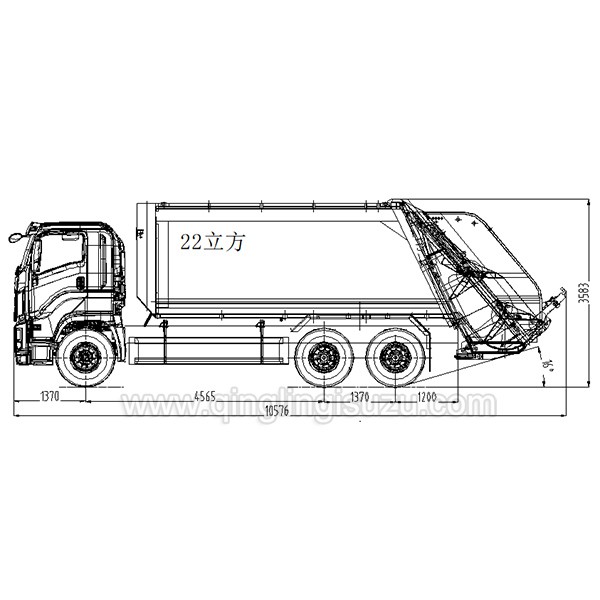

ISUZU CHINA VC61 6×4 22m³Garbage Compactor Truck Specs(Euro V)
Vehicle Model: | QL5330GXFW2SDZY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 9895×2540×3055mm |
Wheelbase: | 4565+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1855/1855mm | |
Front/Rear Suspension: | 1370/2590mm | |
Rear Axle Ratio: | 4.555 | |
Approach/Departure angle: | 17/18° | |
Leaf Spring: | 7/10 | |
Weights and Capacities | Curb Weight: | 9400kg |
Payload: | 23470kg | |
GVW: | 33000kg | |
Axle Loads: | 7000/26000kg (Two-Axis Group) | |
Engine | Engine Model: | 6WG1-TCG51 |
Max output: | 338Kw | |
Displacement: | 15681ml | |
Horsepower: | 460Ps | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF8S2230TO |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-120A | |
Cab | Number of Seats: | 2 |
Cabin Type: | Standard Roof One Bed | |
Chassis | Drive Type: | 6×4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 315/80R22.5 18PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Top Parameters | Garbage Container Capacity | 22m3 |
Filler Volume | 2.2m3 | |
Cycling time of Filling | ≤25S | |
Lifting time of Filler | 8-10S | |
Time of Discharging | ≤60S | |
Hydraulic System Pressure | 20Mpa | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Central Lock | |
4 | Power Window | |
5 | ABS | |
6 | Driving Data Recorder | |
7 | Tubeless Tire | |
8 | Free Maintenance Battery | |
9 | Aluminum Alloy Gas Tank | |
10 | Air Suspension Cabin | |
11 | Air Suspension Seat | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

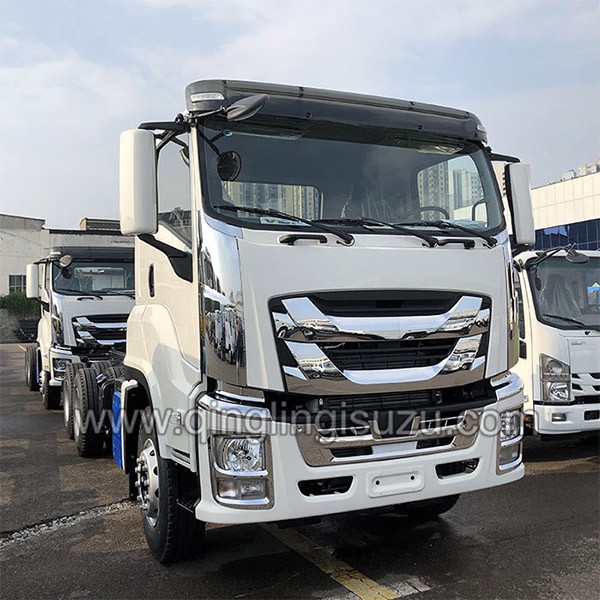

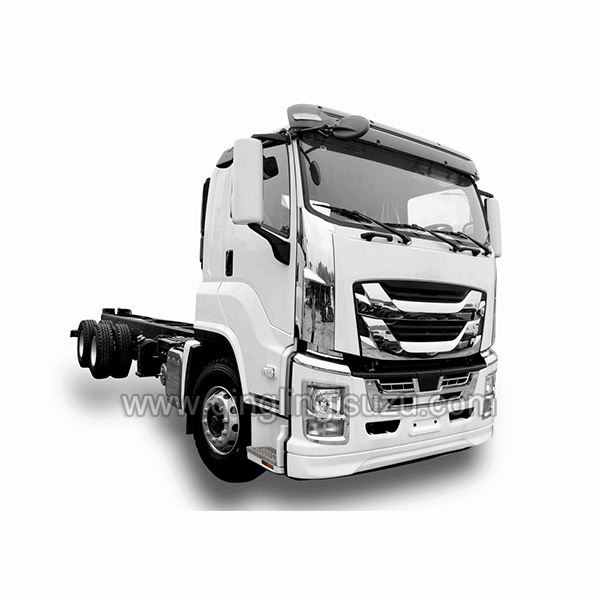

Photo for Reference:
