China Supplier VC61 20m3 Garbage Compactor Truck With Chassis

Vehicle Parameters

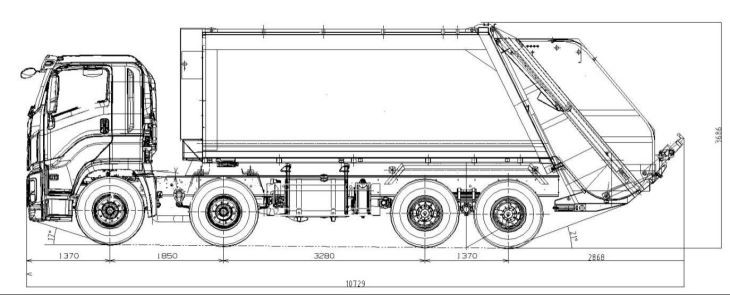

Overall Dimension(L x W x H)

10729×2520×3686mm

GVW:

31000Kg

Wheelbase:

1850+3280+1370mm

Drive Type:

8x4

Brake System:

Air Brake

Engine

Cylinder

6 In-line

Engine Model:

6UZ1-TCG50

Max output:

279w

Displacement:

9839ml

Horsepower:

380ps

Max torque:

1421N.m

Transmission

Transmission:

ZF8S2030T0

Transmission type:

8 Speed Manual(8Forward,2 Reverse)

Cabin

Cabin Type:

Plat roof single sleeper

Front Seat:

2

Chassis

Front Track:

2065/2065mm

Rear Track:

1855/1855mm

Rear Axle Ratio:

4.55

Tires:

13(Including spare tire)

Tire Model:

11.00R20 18PR

Standard Configuration

1

Power Steering

2

AC

3

Tubeless Tire

4

ABS

5

Free Maintenance Battery

6

Central Lock

7

Power Window

8

Data Recorder

9

Air suspension Seat

10

Air suspension Cabin

11

Aluminum alloy fuel tank

Top Parameters

Garbage Container Capacity

20m3

Filler Volume

2.2m3

Cycling time of Filling

≤25S

Lifting time of Filler

8-10S

Time of Discharging

≤45S

Hydraulic System Pressure

≤20Mpa

Hydraulic system control mode

Manual/electric integrated

Oil cylinder type

Double-acting piston type

Oil pump

Dual gear pump

Directional control valve

Multiple way reversing valve

Power supply voltage of hydraulic control electrical system (V)

DC24

Manipulator configuration (standard)

Standard double-barrel manipulator (240L)
