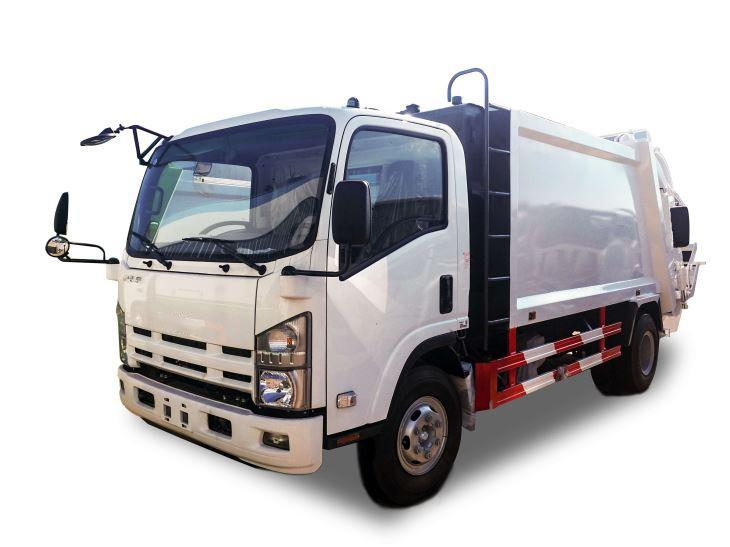

As one of the most professional ISUZU 700P 6m3 Compression Garbage Truck For Sale, we're featured by quality products and competitive price. Please rest assured to buy or wholesale bulk discount from our factory. Also, quotation is available.......
CHINA ISUZU 700P 6m3 Garbage Truck Specs(Euro IV)
Vehicle parameters | Vehicle Model: | QL11009HARY |
Chassis Dimension(L x W x H) | 6777*2170*2550mm | |
Curb Weight: | 2950Kg | |
GVW: | 10000Kg | |
Wheelbase: | 3360mm | |
Drive Type: | 4x2 | |
Engine | Engine Model: | 4HK1-TCG40 |
Engine Power: | 139(kw) | |
Delivery Capacity: | 5193(ml) | |
Horsepower: | 189PS | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Seats | Front Seat: | 3 |
Chassis | Front Wheel Distance: | 1680mm |
Rear Wheel Distance: | 1650mm | |
Axle Loads: | 3350/6650kg | |
Rear Axle Ratio: | 4.1 | |
Tires: | 7(including spare tire) | |
Tire Model: | 8.25R20-14PR | |
Configuration: | 1 | Power Steering |
2 | AC | |
3 | Retro-reflective Marking | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Radial Tire | |
7 | Air Brake | |
Top parameter
| Garbage Container Capacity | 6m3 |
Filler Volume | 0.85m3 | |
Cycling time of Filling | ≤12S | |
Lifting time of Filler | 8-10S | |
Time of Discharging | ≤40S | |
Hydraulic System Pressure | 18Mpa | |
Standard Equipment: | Semi-automatic Cycling | |
Auto Back Pack | ||
Auto lock Tailgate | ||
PTO&Pump | ||
Riding Steps on Rear |
Notes: Above specs is for reference, any otherspecs needed, or special requirements, can be discussed accordingly.
