China ISUZU NKR light duty 700P Garbage Compactor Truck and the overall size is 6777×2170×2550mm， with a wheelbase of 3360mm, The world's leading Isuzu 4HK1-TCG40, the engine was developed by Isuzu in Japan, using MLD-6Q manual transmission and if you want this garbage compactor truck, we can equip with the refrigerator, our trucks are equipped with good quality and competitive price. Please contact us, if you wanna know the quotation.
ISUZU CHINA 700P 4x2 6m³ Garbage Compactor Truck Specs(Euro IV)
Vehicle Model: | QL11009HARY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6777×2170×2550mm |
Wheelbase: | 3360mm | |
Front/ Rear Wheel Distance: | 1680/1650mm | |
Front/Rear Suspension | 1110/1525mm | |
Rear Axle Ratio: | 4.1 | |
Approach/Departure angle: | 18/20° | |
Leaf Spring: | 8/10+6 | |
Weights and Capacities | Curb Weight: | 6070Kg |
Payload: | 3800Kg | |
GVW: | 10000Kg | |
Axle Loads: | 3350/6650kg | |
Engine | Engine Model: | 4HK1-TCG40 |
Max output: | 139Kw | |
Displacement: | 5193ml | |
Horsepower: | 189Ps | |
Exhaust Gas Treatment Technology： | EGR | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-80A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 235/75R17.5 14PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Top Parameters | Garbage Container Capacity | 6m3 |
Filler Volume | 0.85m3 | |
Cycling time of Filling | ≤12S | |
Lifting time of Filler | 8-10S | |
Time of Discharging | ≤40S | |
Hydraulic System Pressure | 18Mpa | |
Hydraulic system control mode | Manual/electric integrated control | |
Oil cylinder type | Double-acting piston type | |
Oil pump | Dual gear pump | |
Directional control valve | Multiple way reversing valve | |
Manipulator configuration | Standard double barrel manipulator | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Retro-Reflective Marking | |
4 | ABS | |
5 | Tubeless Tire | |
6 | Free Maintenance Battery | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

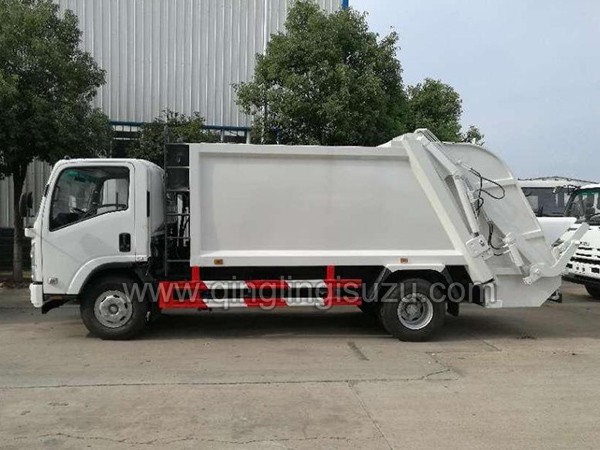

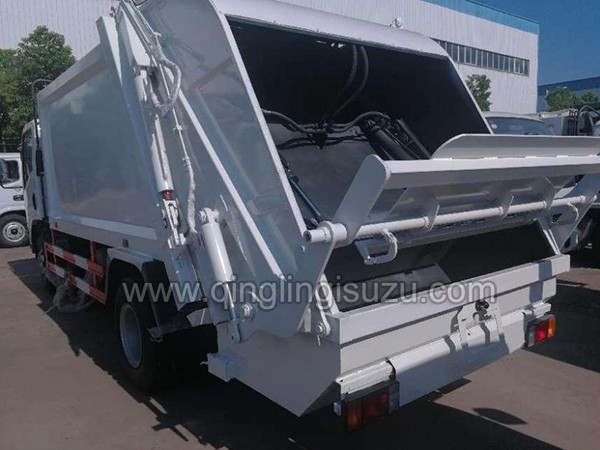

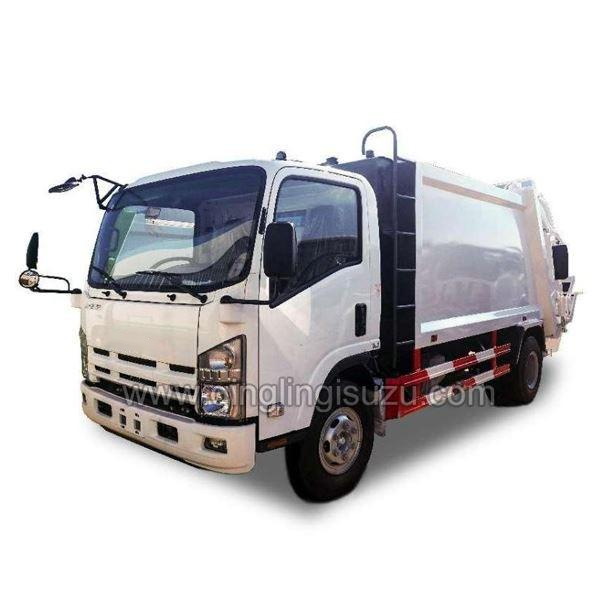

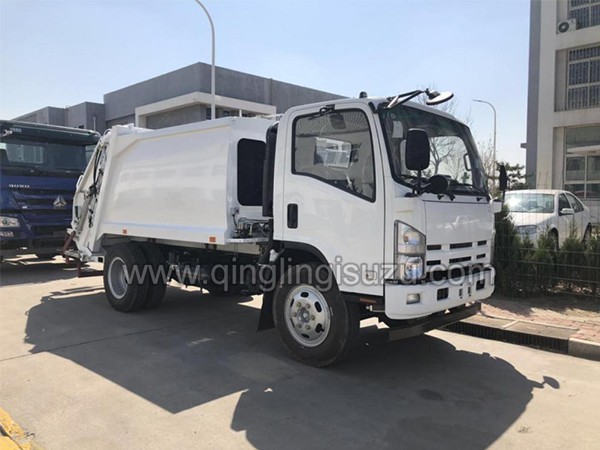

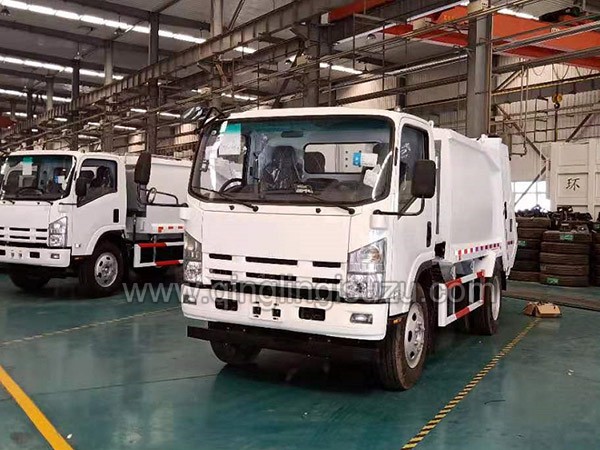

Photo for Reference:
