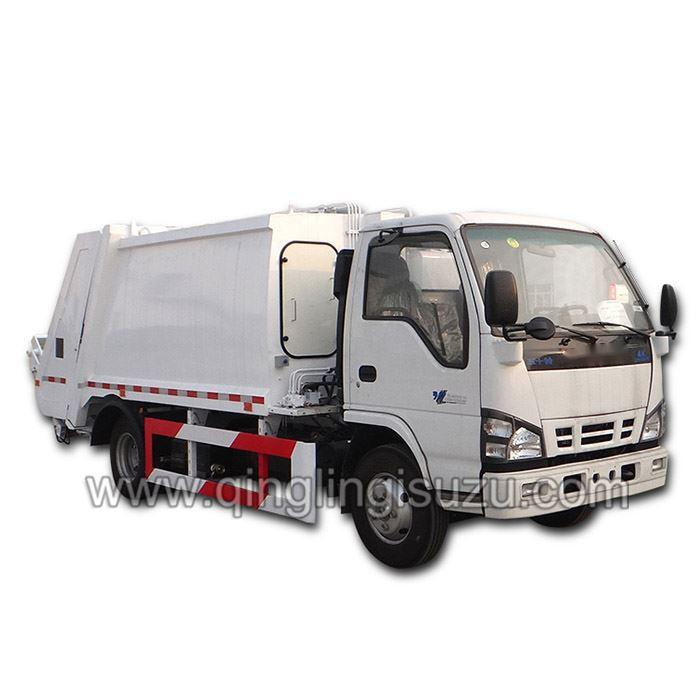

CHINA NKR 600P 6.2m³ Garbage Compactor Truck

Overall Dimension(L x W x H)

6835×1880×2340mm

Vehicle Parameters

Curb Weight:

4880Kg

GVW:

7300Kg

Loading Weight：

2290Kg

Wheelbase:

3360mm

Drive Type:

4x2

Engine Model:

4KH1-TCG40

Engine

Engine Power:

88Kw

Displacement:

2999ml

Horsepower:

120PS

Transmission:

 MSB-5S

Transmission

Forward Gear:

5 Speed Gear

Reverse Gear:

1 Speed Gear

Seats

Front Seat:

2

Front Track:

1504mm

Rear Track:

1425mm

Chassis

Axle Loads:

Double Axles

Rear Axle Ratio:

6.142

Tires:

7(including spare tire)

Tire Model:

7.00R16 14PR

Configuration:

1

Power Steering

2

AC

3

Retro-reflective Marking

4

Radial Tire

5

ABS

6

Free Maintenance Battery

7

Hydraulic Brake

Tops Parameters:

Garbage Container Capacity

6.2m³

Filler Volume

0.6m³

Water tank volume

0.3m³

Garbage compression density

0.3 T/m3

Cycling time of Filling

16S

Hydraulic System Pressure

18Mpa

Standard Equipment:

Superimposed solenoid valve group control system

Gear pump, solenoid valve, hydraulic cylinder

Imported PLC, program automation control

Siemens PLC controller, corui sensor

Working voltage DC12V

Plate material: Wear plate NM400

Dustbin: high strength board
