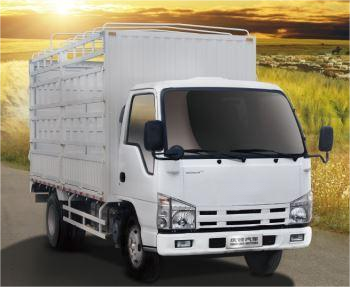

QingLing 100P fence stake truck is the good partner suitable for agricultural and sideline products transportation and livestock animals transportation.
![[[smallImgAlt]]](png/4x2-fence-lorry-stake-truckdb22aeac-e66e-4aca-8326-b60928b25ae1-2.png)
QingLing 100P fence stake truck is the good partner suitable for agricultural and sideline products transportation and livestock animals transportation. In the shape design, the truck is designed to be beautiful in appearance, reasonable in internal structure, advanced in technology, high-quality materials as the skeleton, high in strength, and light in weight, easy to install, safe and reliable.
The customer can choose 12ft 14ft stake body single row or double row cabin trucks according to their need.
100P new model cabin is adopted front headlight follow-up steering technology, more beautiful, confortable and safe.
the world-leading 4KH1CN-type brand new diesel engine with fully-electronic precise control and high-pressure common rail is employed, with stronger power, lower oil consumption, better oil adaptability and better low-temperature starting property: The new 4KH1CN engine, in line with the high quality of the 4KH1 engine, matches the world-class Bosch diesel all-electronic precision control high-pressure common rail injection system. The system has high injection pressure and can improve the visible pollutant emission of the engine. Multi-injection of electronic injectors, precise and precise injection of diesel fuel to improve engine noise and vibration. Supercharged intercooling technology,SCR Post processing system. The engine has strong power, low fuel consumption, reliable and durable.
Qingling Trucks have achieved low pollution and low fuel consumption throughout the life cycle, and the perfromance of the whole vehicle is simultaneously improved, lower noise, smaller jitter, and the vehicle is quieter and more comfortable.
Low fuel consumption, compared with other vehicles of the same load capacity, fuel economy 10%-15%; high reliability, maintenance costs low.
Taking full account of user's conditions of use, matching development, improved the adaptability of oil products.
100P Stake Truck Specifications:
| Truck Brand | QINGLING |
Drive Type | Left Hand Drive |
Overall Dimension(L*W*H) | 5995*2160*2960mm |
Box Dimension (L*W*H) | 4250*2030*400mm |
GVW | 4125Kg |
Curb Weight | 2500Kg |
Axle loading: | 1680/2445Kg |
Wheelbase | 3360mm(Optional) |
F/R Track | 1504/1525mm |
Approaching Angle/Departure Angle(o) | 24/16 |
Tire No. | 7(Including Spare Tire) |
Tire | 7.00R16 8PR |
Color: | Optional |
Max Speed(Km/h) | 98Km/h |
Engine | |
Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
Model | 4KH1CN5LS |
Fuel Type | Diesel Engine |
Max output | 70Kw |
Horsepower: | 98HP |
Max Torque | 220N.m/1700rpm |
Emission Standard | Euro V |
Displacement: | 2999ml |
Transmission: | |
Model: | MSB-5MT |
Type | Manual |
Forward/Reverse | 5F/1R |
Brake System: | |
Service Brake | Vacuum Boosting Hydraulic brake |
Parking Brake | Drive Shaft Drum Brake |
Auxiliary System | Engine Exhaust Brake |
Electrical System | |
Battery | 2*12V-60Ah |
Alternator | 14V-60A |
Starter | 12V/2.5Kw |
Cabin | |
Single-Row Cabin with Air Conditioner | |
Other Equipment: | |
Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
Notes:Above specs is for reference, any other specs needed or special requirements can be discussed accordingly.
