QINGLING Fire Fighting Truck

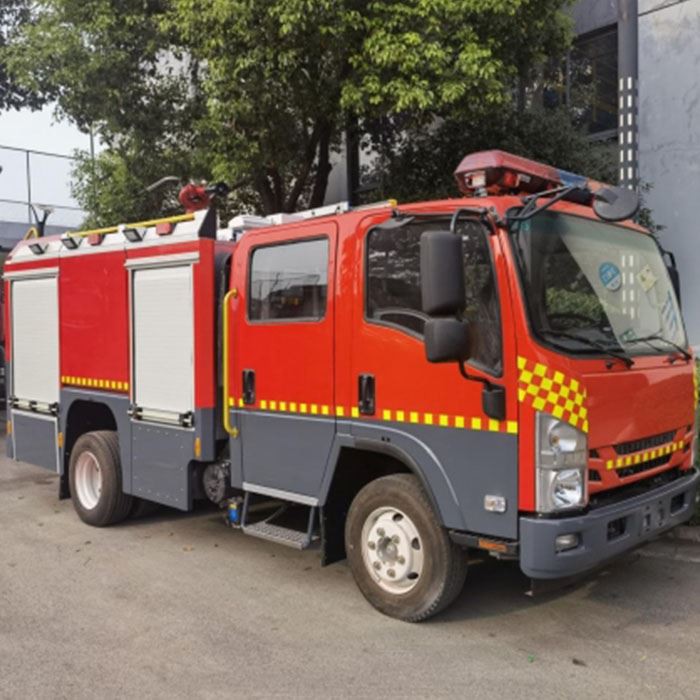

QingLing ISUZU 700P Fire Fighting Truck:

Liquid tanker：Volume:total 4000L water tanker

Water tank material:Stainless steel 304.

Structure:welding,there is baffle plate inner

Equipment:1 manhole,with speediness lock and turn on ; 2 overflow mechanism;3 drainage exit

Fire fighting pump and pipeline system：Model of fire fighting pump:CB10/30 ,

Pressure:1.0mpa

Flux:30L/s

Suction depth: ≤7m

Suction time: ≤30s

Fire fighting nozzle：Model:PS30

Flux:30L/S

Range:water≥48m

Pressure:1.0Mpa

Rotation angle：horizontal 360°,pitch angle: -30°～80°

Pump room：there are pump system and pipeline,reasonable structure.Easily operate all meters and operate-switch.

Rolling shutter door：Light and high quality aluminum alloy rolling shutter door,neatly open and close,good seal,low noise,beauty outside ,and with one set lock

Electric control system：

1,alarm: Warning light:light weight rectangular,installed on the top of cab,in accordance with outside of whole truck.

Siren:100W. With FM/public address system and megaphone

2, light in equipment and pump room can be controlled in carriage.

3,other light: one emergency rotation light,one light on the top of vehicle ,the switch in the cab

The world's leading Isuzu 4H engine: 4HK1-TC51

The world's leading Isuzu 4HK1-TC51 engine was newly developed by Isuzu in Japan, using Japan's Denso electronically controlled high-pressure common rail system, which produces stable high fuel injection pressure at low engine speed and high speed, and better fuel atomization effect. More complete combustion, better power, lower emissions, smoother operation and lower noise. Electronically controlled variable section supercharger + intercooling technology,DPF aftertreatment system. The engine has strong power, low fuel consumption, reliable and durable.

More environmentally friendly

Qingling ISUZU products achieve low emission and low fuel consumption throughout the life cycle, and the perfromance of the whole vehicle is simultaneously improved, the noise is lower, the jitter is smaller, and the vehicle is quieter and more comfortable.

ISUZU CHINA 700P Fire Fighting Truck Specifications:

Notes:Above specs is for reference, any other specs needed or special requirements can be discussed accordingly.
