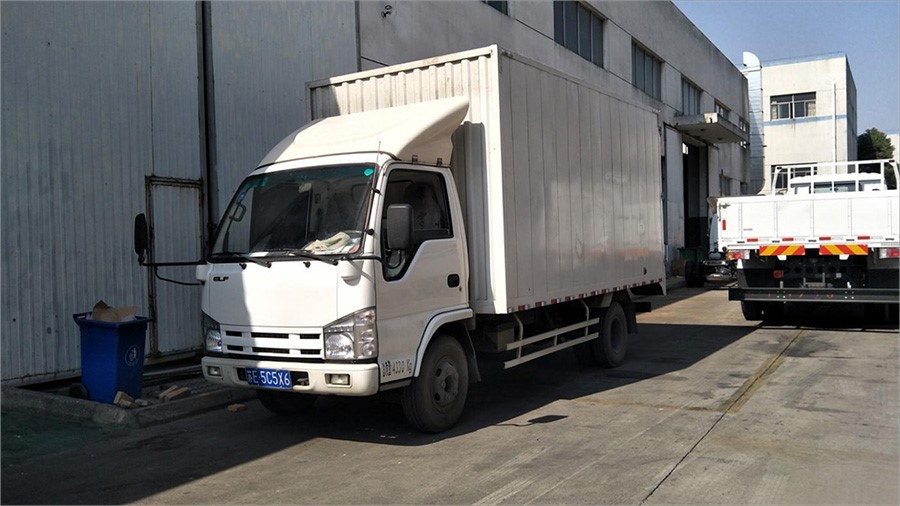

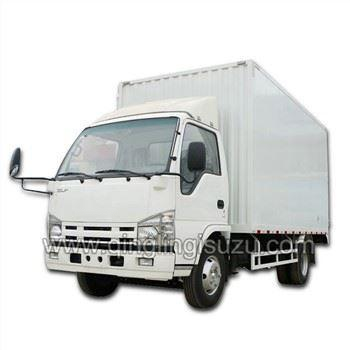

QINGLING NKR/100P Small Steel Corrugated Cargo Body Truck

Box Dimension:

5050×1784×1810(mm)

Vehicle Parameters

Box Material:

Steel Corrugated

Curb Weight:

2900kg

GVW:

7030kg

Wheelbase:

3815mm

Drive Type:

4x2

Engine Model:

4JB1-CN

Engine

Engine Power:

72w

Displacement:

2771ml

Horsepower:

98Ps

Overall Dimension(L x   W x H)

6790×1880×2900(mm)

Box Dimension:

5050×1784×1810(mm)

Vehicle Parameters

Box Material:

Steel Corrugated

Curb Weight:

2900kg

GVW:

7030kg

Wheelbase:

3815mm

Drive Type:

4x2

Engine Model:

4JB1-CN

Engine

Engine Power:

72w

Displacement:

2771ml

Horsepower:

98Ps

Transmission:

Manual MSB-5MT

Transmission

Forward Gear:

5 Speed Gear

Backward Gear:

1 Speed Gear

Cab

Front Seat:

2

Front/ Rear Wheel   Distance:

1504/1425mm

Front/Rear Suspension

1015/1960mm

Chassis

Axle Loads:

2370/4660kg

Rear Axle Ratio:

5.375

Tires:

7(Including Spare   Tire)

Tire Model:

7.00R16 14PR

1

Power steering system

Standard Configuration:

2

Air Conditioning

3

Retro-reflective   Marking

4

Tubeless Tire

5

ABS

6

Free Maintenance   Battery

Optional   Configuration:

1

Cab metal paint

2

Air diversion device

3

Single side door/Double   side door

4

Speed limiting device   (80km/h)

5

Central lock

6

Electric doors and windows

7

Cab tilting mechanism   (included in KV100)
