Fire fighting trucks are vehicles designed and manufactured to suit the needs of firefighters and equipped with various fire-fighting equipment or fire-extinguishing agents for firefighting, auxiliary firefighting or firefighting, including firefighting in most countries including China.

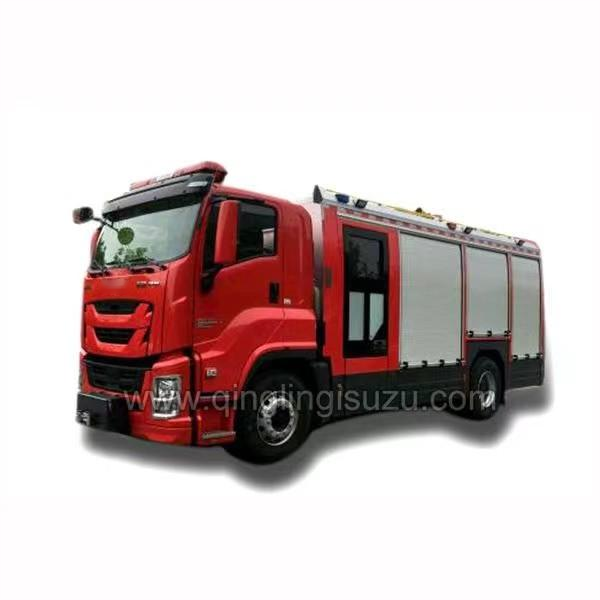

QingLing ISUZU 8x4 Fire Fighting Truck:
-----Fire fighting trucks are vehicles designed and manufactured to suit the needs of firefighters and equipped with various fire-fighting equipment or fire-extinguishing agents for firefighting, auxiliary firefighting or firefighting, including firefighting in most countries including China. The department will also use it for other emergency rescue purposes. Fire trucks can transport firefighters to the scene of the disaster and provide a variety of tools for their disaster relief missions.
-----ISUZU 6W Engine:
Pursuing the fuel consumption perfromance of the practical speed zone with high frequency of use, from supercharging to cooling, fuel multi-point injection, the pursuit of maximizing fuel cost reduction, achieving large torque, large economic speed and strong power.
Low speed and high twist, continuous maximum torque in the 800-1400 rpm range
------ZF Transmission:
The latest 4th generation ZF gearbox with high transmission efficiency (0.965-0.98), more fuel-efficient, high reliability
Lightweight: Optimized two-section aluminum housing, light weight 100 kg
Long life: short stroke long life synchronizer; gear full grinding process; built-in oil pump forced lubrication; optimized speed ratio distribution; low noise design
Fuel-saving: ZF 8-speed products, the engine is running at economic speed
Lightweight and flexible shifting: with shift servo
Dump Body：
A tipper is consisted of vehicle chassis, hydraulic lifting system, cargo body and takeoff device. The dump truck is used in the civil engineering, usually jointly operated with excavators, loaders, belt conveyor and other engineering equipment, constituting a load-transport-unload production line, which finishes earth, sand, powder material loading-transportation work.
With superior reliable product perfromance and rich accessories choices, we make a user-customized platfrom.
The whole vehicle axle load distribution is reasonable to meet the user needs.
Low gravity center, good discharge stability and vehicle perfromance.
Optimization of the structure of the hydraulic lifting system, high work efficiency, the strong lifting ability, the light overall weight, stable and reliable operation.
ISUZU CHINA VC61 8x4 Fire Fighting Truck Chassis Specifications:
| Vehicle Model | QL5420GXFW2VDHY | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 11285×2540×3055mm |
| Wheelbase: | 1850+4575+1370mm | |
| Front Wheel Distance: | 2060/2060mm | |
| Rear Wheel Distance: | 1855/1855mm | |
| Front/Rear Suspension | 1370/2120mm | |
| Weights and Capacities | Curb Weight: | 10650kg |
| GVW: | 42000kg | |
| Axle Loads: | 8000/8000/26000kg(Two-Axis Group) | |
| Engine | Engine Model: | 6WG1-TCG51 |
| Max output: | 338Kw | |
| Displacement: | 15681ml | |
| Horsepower: | 460Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof One Berth | |
| Chassis | Drive Type: | 8x4 |
| Tires: | 12(Including Spare Tire） | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |
