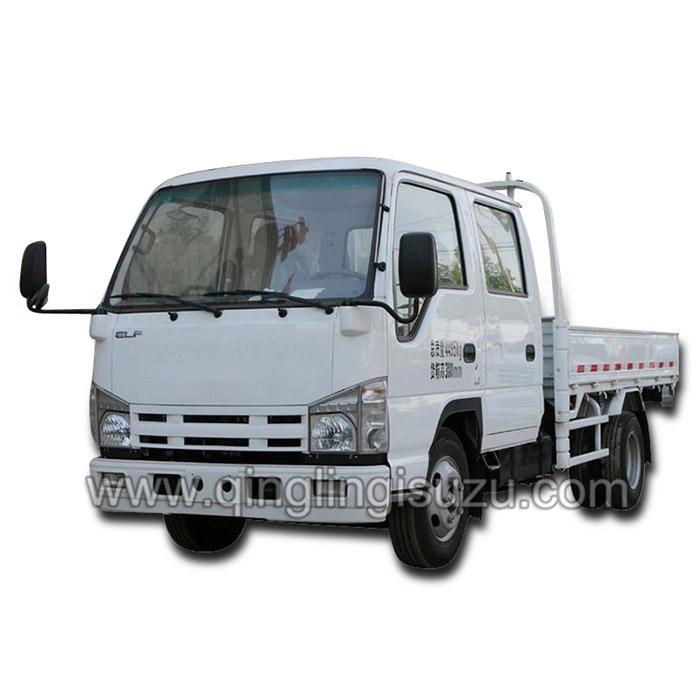

100P 4-wheeler cargo truck,2490mm wheelbase,the loading capacity is about 2 Tons, 10ft cargo box length.6-wheeler cargo truck has more wheelbase options,for instance 2765mm,3360mm,3815mm.the cargo box length can be 12ft,14ft,16ft.
![[[smallImgAlt]]](png/98hp-lorry-truck-with-isuzu-engine06c59372-ca74-4cc1-8d1e-f1d64999c0be-2.png)
100P 4 wheeler cargo truck,2490mm wheelbase,the loading capacity is about 2 Tons, 10ft cargo box length.6 wheeler cargo truck has more wheelbase options, for instance 2765mm,3360mm,3815mm.the cargo box length can be 12ft,14ft,16ft.
100P cabin have both single row cabin and double row cabin.The new cabin model is adopted front headlight follow-up steering technology, more beautiful, confortable and safe. The mirror provides an open view;. It adopts a high-quality sound system, refreshing and comfortable, and the driver does not fatigue during long-distance driving.
The world-leading 4KH1CN-type new diesel engine with fully-electronic precise control and high-pressure common rail is employed, with stronger power, lower oil consumption, better oil adaptability and better low-temperature starting property: The new 4KH1CN engine, in line with the high quality of the 4KH1 engine, matches the world-class Bosch diesel all-electronic precision control high-pressure common rail injection system. The system has high injection pressure and can improve the visible pollutant emission of the engine. Multi-injection of electronic injectors, precise and precise injection of diesel fuel to improve engine noise and vibration. Supercharged intercooling technology,SCR Post processing system. The engine has strong power, low fuel consumption, reliable and durable.
100P Truck Specifications:
Truck Brand | QINGLING |
Driving Type | Left Hand Drive |
Overall Dimension(L*W*H) | 4800*1695*2160mm |
Box Dimension (L*W*H) | 3100*1600*380mm |
GVW | 3680Kg |
Curb Weight | 2655Kg |
Axle loading | 1620/2060Kg |
Wheelbase | 2490mm(Optional) |
F/R Track | 1385/1395mm |
Approaching Angle/Departure Angle(o) | 24/20 |
Tire No. | 5(Including Spare Tire) |
Tire | 7.00R15 10PR |
Color: | Optional |
Max Speed(Km/h) | 98Km/h |
Engine | |
Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
Model | 4KH1CN5LS |
Fuel Type | Diesel Engine |
Max output | 70Kw |
Horsepower | 98HP |
Max Torque | 220N.m/1700rpm |
Emission Standard | Euro V |
Displacement | 2999ml |
Transmission | |
Model | MSB-5S |
Type | Manual |
Forward/Reverse | 5F/1R |
Brake System | |
Service Brake | Vacuum Boosting Hydraulic brake |
Parking Brake | Drive Shaft Drum Brake |
Auxiliary System | Engine Exhaust Brake |
Electrical System | |
Battery | 2*12V-60Ah |
Alternator | 14V-60A |
Starter | 12V/2.5Kw |
Cabin | |
Single-Row Cabin with Air Conditioner(Optional: Crew Cab) | |
Other Equipment | |
Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
Notes: Above specs is for reference, any other specs needed or special requirements can be discussed accordingly.
