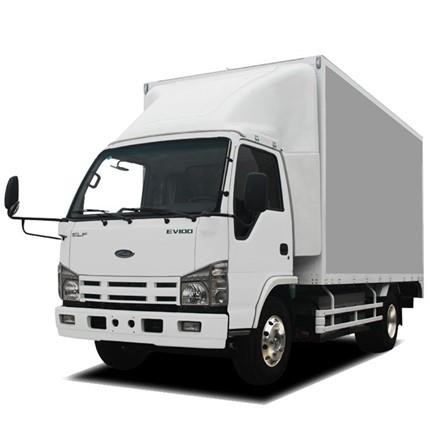

EV100 is the typical model of light duty electric trucks, modified with the aluminum cargo van box and accommodating up to 18m3, has the power of 106kwh, allowing for a driving range up to 260 miles. This model has a payload capacity of 4230kg and the front/rear axle capacity of which is 1805/2690kg.
Vehicle Parameters | Overall Dimension(L x W x H) | 5995×2100×3100(mm) |
Box Body Dimension(L x W x H) | 4250×2050×2100(mm) | |
Curb Weight: | 2940Kg | |
Payload: | 1555kg | |
GVW: | 4495Kg | |
Wheelbase: | 3360mm | |
Drive Type: | Motor Direct Driving |
EV100 Pure Electric Van Truck Specs
Chassis Model: | QL5041XXYBEVECHA2 | |
Vehicle Parameters | Overall Dimension(LxWxH) | 5995x2100x3100(mm) |
Body Dimension(LxWxH) | 4250x2050x2100(mm) | |
Curb Weight: | 2940Kg | |
Payload: | 1555kg | |
GVW: | 4495Kg | |
Wheelbase: | 3360mm | |
Drive Type: | Motor Direct Driving | |
Driving Motor | Model No.: | YTD060W23 |
Type: | Permanent magnet synchronous motor | |
Rated/Peak Power: | 60/110kw | |
Rated/Peak Torque: | 310/1000N.m | |
Battery | Type/Model/Brand: | Lithium iron phosphate battery/CB220/CATL |
Capacity: | 106.95kwh | |
Voltage: | 537.6V | |
Performance | Maximum Speed: | 100km/h |
Driving Range: | 260km | |
Charge mode: | Fast charge | |
Max Climb Capability | 30% | |
Cabin | Front Seat: | 2 |
Front/ Rear Wheel Distance: | 1504/1525mm | |
Front/Rear Suspension: | 1015/1620(mm) | |
Front Suspension Type: | 3 pcs leaf spring | |
Chassis | Rear Suspension Type: | 3+2 pcs leaf spring |
Front/Rear Brake Type: | Drum type, double circuit hydraulic brake | |
Axle Loads: | 1805/2690kg | |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16 8PR | |
Standard Configuration | 1 | Power Steering |
2 | AC | |
3 | ABS | |
4 | Tubeless Tires |
