The e-motor, for the model EV700, the CATL LFP, 1 hour charging, has the power of 218.54kwh, allowing for a driving range up to 240km. Payload capacity is going up to 5490kg, and the front/rear axle capacity is 3700/6800kg. 163ps makes it possible to be modified onto different body applications.

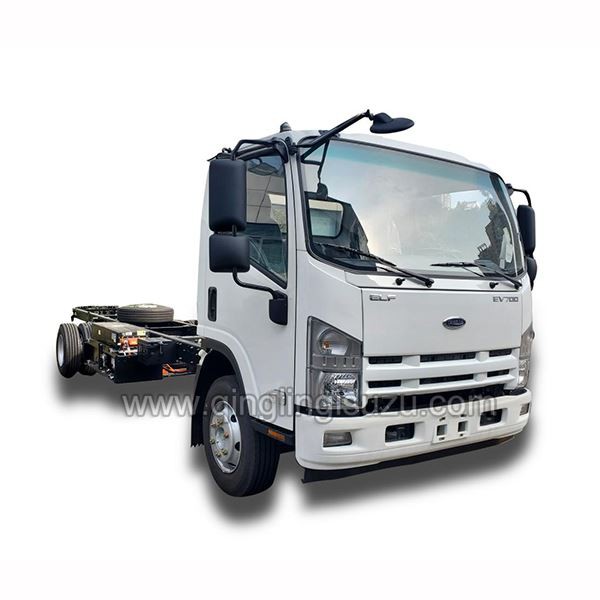

EV700 is the typical model of the light duty electric truck chassis with more horsepower. From cutting-edge fuel efficiency and industry-leading powertrain system to our current zero-emission commercial electric truck, we come a long way to be actively supportive for the basic policy of environmental reservation. Different countries require different fuel conditions to operate internal combustion engines well, now with the background of launching electric vehicles, there won’t be any difference among the world.
The e-motor, for the model EV700, the CATL LFP, 1 hour charging, has the power of 218.54kwh, allowing for a driving range up to 240km. Payload capacity is going up to 5490kg, and the front/rear axle capacity is 3700/6800kg. Wheelbase 4175mm and 7430mm overall length make it possible to be modified onto different body applications.
We are ready to enter the future by building the greenest possible commercial trucks on the road. We will also continue to stick on our mission of better profiting our customers. No business will ever getting bigger by only benefiting itself.
Vehicle Model: | QL1100BEVEMLAY | |
Dimensions and Parameters | Overall Dimension(L x W x H) | 7430×2200x2285mm |
Wheelbase: | 4175mm | |
Front/ Rear Wheel Distance: | 1680/1650mm | |
Front/Rear Suspension: | 1110/2145mm | |
Weights and Capacities | Curb Weight: | 4830kg |
GVW: | 10500kg | |
Axle Loads: | 3700/6800kg | |
Driving Motor | Model: | TZ370XS-LKM0851 |
Type: | PMSM | |
Rated/Peak Power: | 75/120kw | |
Cabin | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including 1 Spare Tire) | |
Battery | Type: | LFP |
Capacity: | 218.54kwh | |
Charge mode: | Fast Charge(2h) | |
Standard Configurations: | Air Conditioning | |
Radio | ||
ABS | ||
