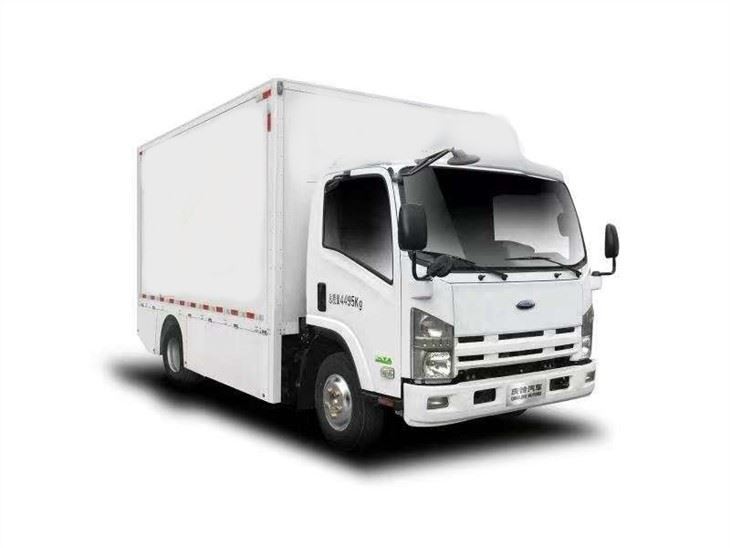

EVK100 is the typical model of electric light duty trucks for three passengers, modified with the aluminum cargo van box and accommodating up to 21m3, has the power of 106kwh, allowing for a driving range up to 260km. This model has a payload capacity of 3400kg and the front/rear axle capacity of which is 2580/4720kg.
![[[smallImgAlt]]](jpg/qingling-evk100-7300kg-pure-electric-lorry41534900959-2.jpg)
EVK100 is the typical model of electric light duty trucks for three passengers, representing the upcoming idea of easy driving, easy working and easy operating. Modified with the aluminum cargo box and accommodating up to 21m3, it is the best means of transportation for city logistics, and intercity delivery.
The e-motor, for the model EVK100, the CATL LFP, has the power of 106kwh, allowing for a driving range up to 260km. This model has a payload capacity of 3400kg and the front/rear axle capacity of which is 2580/4720kg to realize the function of carrying more cargo during the urban distribution of goods in various industries.
Nowadays, the fuel price has grown fast. Using electricity would be an efficient way to save energy and money. Furthermore, the e-motor plus aluminum box comes with lightweight, low energy consumption, simple structure, and easy maintenance. Moreover, the recycling value of the aluminum boxes is higher, and the vehicle can also get a considerable income when it needs to calculate the residual value.
Chassis Model: | QL5070XXYBEVECDA | |
Vehicle Parameters | Overall Dimension (L x W x H) | 6790×2110×3110 (mm) |
Curb Weight: | 3685kg | |
GVW: | 7300kg | |
Wheelbase: | 3815mm | |
Drive Type: | Motor Direct Driving | |
Motor | Motor Model: | YTD060W23 |
Motor Type: | PMSM | |
Rated /Peak Power: | 60/110kw | |
Rated /Peak Peak torque: | 310/1000N.m | |
Battery | Battery Brand/ Model: | CATL/ CB220 |
Battery Type: | LFP | |
Battery Capacity: | 106.95kwh | |
Perfromance | Maximum Speed: | 100km/h |
Driving Range: | 260km | |
Max Climb Capability | 30% | |
Cabin | Front Seat: | 3 |
Chassis | Front/ Rear Wheel Distance: | 1685/1525mm |
Front/Rear Suspension | 1110/1865mm | |
Axle Loads: | 2580/4720kg | |
Approach/Departure angle: | 18/13 | |
Leaf Spring: | 3/3+2,8/6+5 | |
Tires: | 7 (Including Spare Tire) | |
Tire Model: | 7.00R16 14PR | |
Standard Configuration: | Power steering system | |
Air Conditioning | ||
ABS | ||
Tubeless Tire | ||
Box | Box Dimension (L x W x H) | 4970×2050×2100mm |
Material | Aluminum | |
Hot Tags: qingling commercial electric cargo truck payload 3.4 tons, suppliers, wholesale, buy, price, discount, quotation
←Qingling Commercial Electric Truck Chassis Payload 9.4 tons

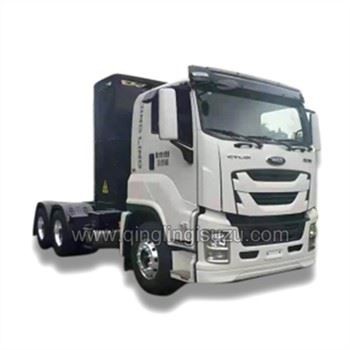

Qingling Commercial Electric Tractor Head Semi-trailer GVW 38690kg→
