China ISUZU heavy duty VC61 10 wheels Garbage Compactor Truck, and the overall size is 9937×2500×3135mm， with a wheelbase of 3985+1370mm, The world's leading Isuzu 6WG1-TCG51, the engine was developed by Isuzu in Japan, using ZF8S manual transmission and if you want this garbage compactor truck, we can equip with the refrigerator, our trucks are equipped with good quality and competitive price. Please contact us, if you wanna know the quotation.

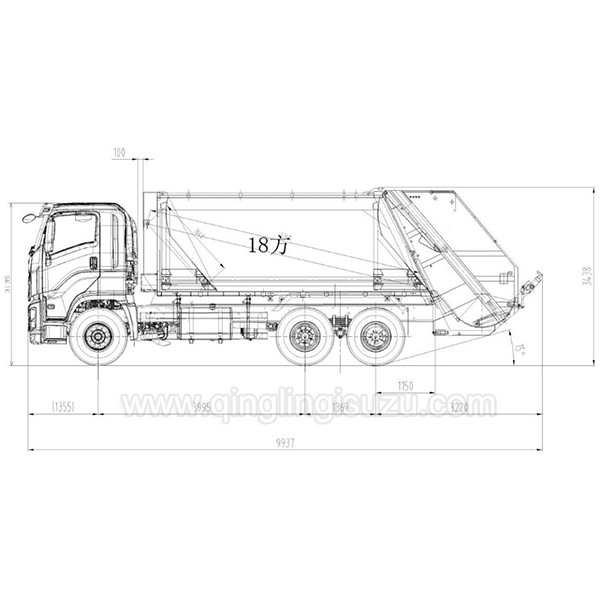

ISUZU CHINA VC61 6×4 18m³Garbage Compactor Truck Specs(Euro V)
Vehicle Model: | QL5330GXFW2QDZY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 9937×2500×3135mm |
Wheelbase: | 3985+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1855/1855mm | |
Front/Rear Suspension: | 1370/1740mm | |
Rear Axle Ratio: | 4.555 | |
Approach/Departure angle: | 17/27° | |
Leaf Spring: | 7/10 | |
Weights and Capacities | Curb Weight: | 9260kg |
Payload: | 23610kg | |
GVW: | 33000kg | |
Axle Loads: | 7000/26000kg (Two-Axis Group) | |
Engine | Engine Model: | 6WG1-TCG51 |
Max output: | 338Kw | |
Displacement: | 15681ml | |
Horsepower: | 460Ps | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF8S2230TO |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-120A | |
Cab | Number of Seats: | 2 |
Cabin Type: | Standard Roof One Bed | |
Chassis | Drive Type: | 6×4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 315/80R22.5 18PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Top Parameters | Garbage Container Capacity | 18m3 |
Filler Volume | 2.5m3 | |
Cycling time of Filling | ≤25S | |
Lifting time of Filler | 8-10S | |
Time of Discharging | ≤40S | |
Hydraulic System Pressure | 20Mpa | |
Maximum crushing compression force | 25000Kg | |
Hydraulic system control mode | Manual/electric integrated | |
Oil cylinder type | Double-acting piston type | |
Oil pump | Dual gear pump | |
Directional control valve | Multiple way reversing valve | |
Power supply voltage of hydraulic control electrical system (V) | DC24 | |
Manipulator configuration (standard) | Standard double-barrel manipulator (240L) | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Central Lock | |
4 | Power Window | |
5 | ABS | |
6 | Driving Data Recorder | |
7 | Tubeless Tire | |
8 | Free Maintenance Battery | |
9 | Aluminum Alloy Gas Tank | |
10 | Air Suspension Cabin | |
11 | Air Suspension Seat | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;
Photo for Reference:
