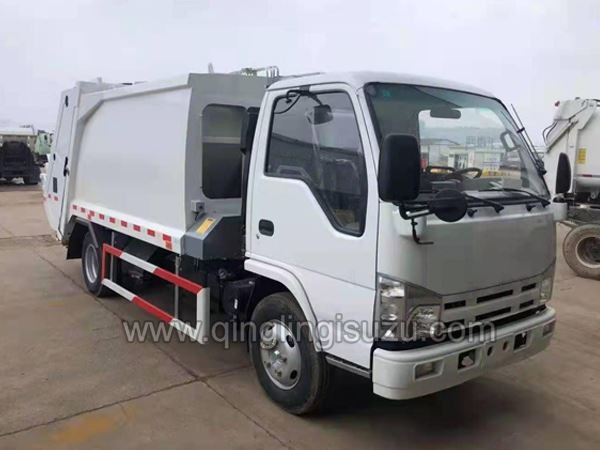

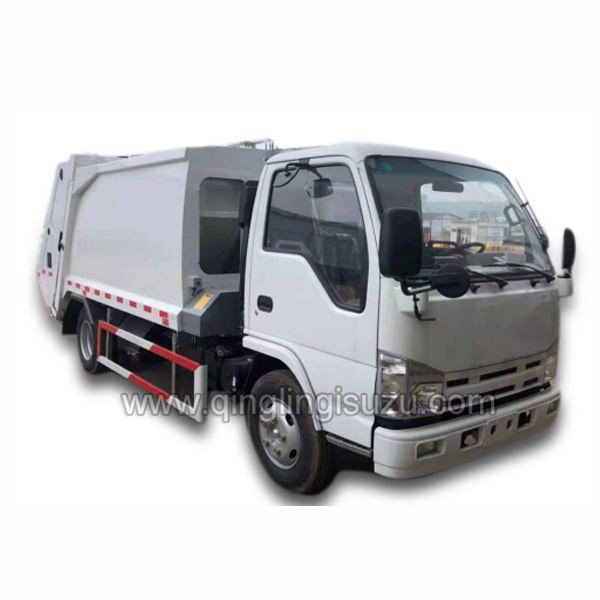

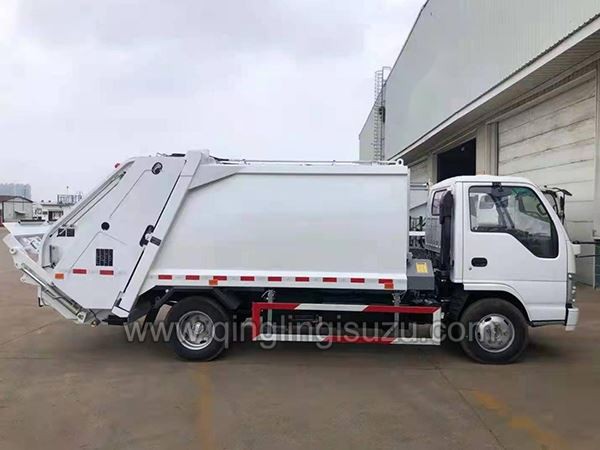

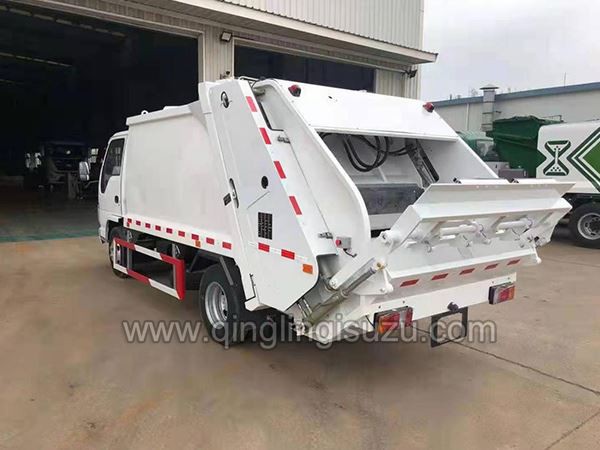

100P Garbage Compactor Truck

Vehicle Parameters

Overall Dimension(L x W x H)

6600*2050*2570mm

Curb Weight:

4100Kg

GVW:

7300Kg

Wheelbase:

3360mm

Drive Type:

4x2

Engine

Engine Model:

4KH1CN5HD

Engine Power:

96Kw

Displacement:

2999ml

Horsepower:

130Ps

Transmission

Transmission:

Manual MSB-5MT

Forward Gear:

5 Speed Gear

Reverse Gear:

1 Speed Gear

Seats

Front Seat:

2

Chassis

Front Track:

1504mm

Rear Track:

1525mm

Rear Axle Ratio:

5.375

Tires:

7(including spare tire)

Tire Model:

7.00R16 14PR

Configuration:

1

Power Steering

2

AC

3

Retro-reflective Marking

4

Radial Tire

5

ABS

6

Free Maintenance Battery

Tops Parameters:

Garbage Container Capacity

5m3

Filler Volume

0.6m3

Cycling time of Filling

≤25S

Lifting time of Filler

8-10S

Time of Discharging

≤45S

Hydraulic System Pressure

20Mpa

Hydraulic system control mode

Manual/electric integrated control

Manipulator configuration

Standard double barrel manipulator
