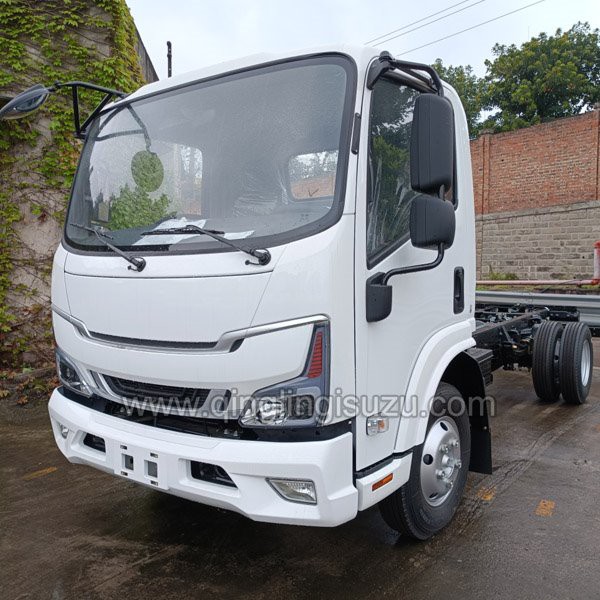

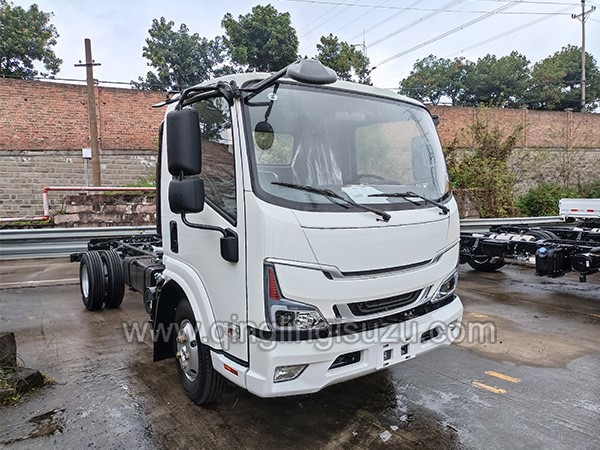

QINGLING highly recommended product, newly developed chassis with 3 seats, wheelbase 3360mm, GVW7300kg, 127hp; hydraulic brake or air brake optional, multi-function steering wheel, rear view camera, modern body design, low fuel consumption, low maintenance cost, highly manoeuvrable, fitting for...
QINGLING highly recommended product, newly developed chassis with 3 seats, wheelbase 3360mm, GVW7300kg, 127hp; hydraulic brake or air brake optional, multi-function steering wheel, rear view camera, modern body design, low fuel consumption, low maintenance cost, highly manoeuvrable, fitting for many vocational modifications.
Specifications
Vehicle Model: | QL1049A5HAY | |
Dimensions and Parameters | Overall Dimension(L x W x H) | 5875×2130×2315mm |
Wheelbase: | 3360mm | |
Front/ Rear Wheel Distance: | 1690/1655mm | |
Front/Rear Suspension | 1120/1510mm | |
Approach/Departure angle: | 20/21° | |
Leaf Spring: | 3/3+2 | |
Weights and Capacities | Curb Weight: | 2250kg |
Payload: | 4855kg | |
GVW: | 7300kgkg | |
Axle Loads: | 1750/2745kg | |
Engine | Model: | 4KH1CN5HS |
Cylinder | 4 cylinders in line | |
Torque(N.m/rpm) | 290N.m | |
Max output: | 97Kw | |
Displacement: | 2999ml | |
Horsepower: | 130hp | |
Exhaust Technology： | DPF | |
Transmission | Forward Gear: | 5 Speed Gear |
Brake | Air Brake | |
Cab | Number of Seats: | 3 |
Chassis | Tires: | 7(Including Spare Tire) |
Tire Model: | 7.00R16LT 8PR | |
Fuel Tank | Capacity: | 100L |
Configurations: | Power Steering System | |
AC | ||
Retro-Reflective Marking | ||
ABS | ||
Free Maintenance Battery | ||
