This fuel tanker truck is modified from Qingling chassis applied with tanker body with volume of 6m³, it’s powered by engine 4HK1-TCG40 which is competent to achieve reliable durability and strength, and conforms to the emission standard of EuroⅣ. The highest speed of the truck reaches 110 km per hour, and the equipped transmission has 6 forward gears and 1 reverse gear.
Description of Vocational Quality:
The tanker body is made of carbon steel with thickness of 5mm. It’s an ideal vehicle to transport liquid commodities vary from crude oil to petroleum products such as diesel fuel, gasoline, and kerosene; as well as petrochemicals including ethanol and benzene.
The specifications and configurations of the vehicle can be customized in accordance with your special requirements.
700P 6m³4x2 Fuel Tanker Truck Specifications (Euro IV )
Chassis Model: | QL11009KARY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6740x2165x2460mm |
Wheelbase: | 3815mm | |
Front/ Rear Wheel Distance: | 1680/1650mm | |
Front/Rear Suspension | 1110/2055 | |
Rear Axle Ratio: | 4.1 | |
Approach/Departure angle: | 21/13° | |
Leaf Spring: | 8/10+6 | |
Weights and Capacities | Curb Weight: | 4700Kg |
GVW: | 10000Kg | |
Axle Loads: | 3350/6650kg | |
Engine | Engine Model: | 4HK1-TCG40 |
Engine Power: | 139(kw) | |
Displacement: | 5193(ml) | |
Horsepower: | 189PS | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-80A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 8.25R20 14PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Top Parameters | Tank volume 6m³, carbon steel, 1 bin | |
The thickness of tank body is 5mm, the head is 5mm | ||
Include 1 set sea valves | ||
Include 1 Piece Aluminum alloy manhole cover | ||
Include 65YCB-30 Gear oil pump and | ||
Include 2 pieces 3 "3 m discharge hose (stainless steel tube box) | ||
Include 2 set 8 kg fire extinguisher | ||
Spray paint, wax spray, no sandblasting | ||
Vehicle Standard Configurations | Power Steering System | |
Air Conditioner | ||
Retro-reflective Marking | ||
ABS | ||
Free Maintenance Battery | ||
Cab tilting mechanism | ||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly；

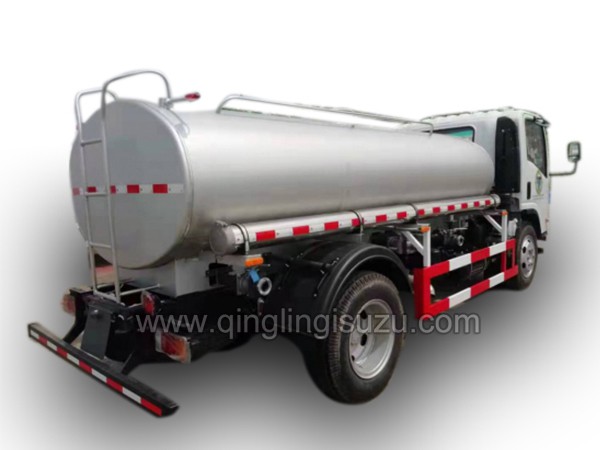

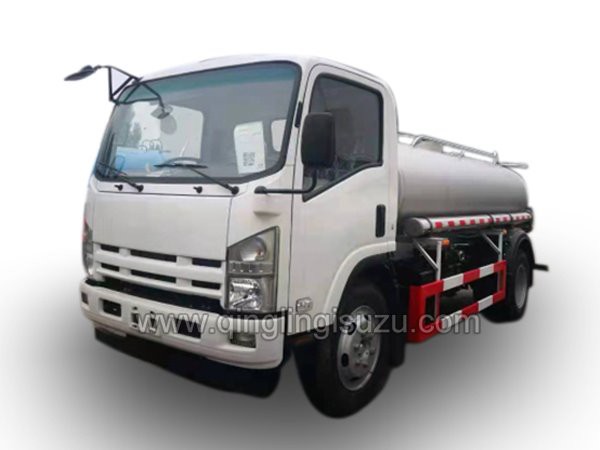

Photo for Reference:
