This semi-tractor head is designed to tow a trailer with a total weight of 40000kg. It fully complies with the Euro 5 emission standard. The equipped engine is powerful and durable enough to use the Isuzu engine 6WG1-TCG51 with 460 horsepower. The transmission has 16 forward gears and 2 backward gears.
Description of Vocational Features:
This tractor head is fitted with a universal fifth wheel coupling to which the semi-trailer can be attached. It is a heavy-duty towing engine that provides the motive power for hauling a load. It is widely used in transporting a variety of heavy cargo, especially for loading heavy-duty trucks. Any special requirements regarding the specification and configuration can be discussed and met accordingly.
ISUZU CHINA VC61 6x4 Tractor Head Specifications (Euro V)
Vehicle Model: | QL4250W2NCZ | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6895×2540x3720mm |
Wheelbase: | 3385+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1855/1855 mm | |
Front/Rear Suspension | 1370/770mm | |
Rear Axle Ratio: | 3.909 | |
Approach/Departure angle: | 17/42° | |
Leaf Spring: | 7/10 | |
Weights and Capacities | Curb Weight: | 8870kg |
Payload: | 16000kg | |
GVW: | 25000kg | |
Axle Loads: | 7000/18000kg | |
Engine | Engine Model: | 6WG1-TCG51 |
Max output: | 338Kw | |
Displacement: | 15681ml | |
Horsepower: | 460HP | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF16S2230T0 |
Forward Gear: | 16 Speed Gear | |
Backward Gear: | 2 Speed Gear | |
Brake | Air Brake | |
Generator | 24V-60A | |
Cab | Number of Seats: | 2 |
Chassis | Drive Type: | 6x4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 315/80R22.5 18PR | |
Fuel Tank | Number: | 1 |
Capacity: | 600L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Central Lock | |
4 | Power Window | |
5 | Retro-reflective Marking | |
6 | ABS | |
7 | Driving Recorder | |
8 | Free Maintenance Battery | |
9 | Widened Bumper | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

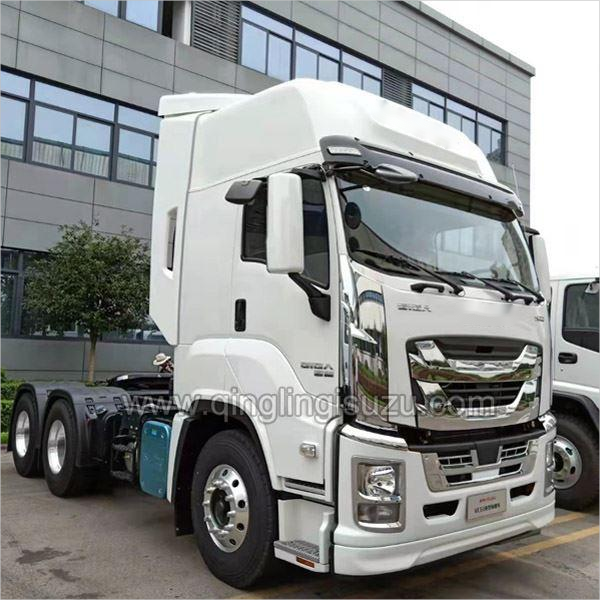

Photo for Reference:
