This semi-tractor head is competent to tow a trailer with a total weight of 34620 kg. It completely conforms to Euro 5 emission standard. The equipped engine is powerful enough to reach strength and durability using the Isuzu engine model 6WG1-TCG51 with 460 horsepower. The transmission has 16 forward gears and 2 backward gears.
Description of Vocational Features:
The tractor head consists of a cab and a short chassis behind the cab that is used to hook up to a semi-trailer. It is fitted with a universal fifth wheel coupling to which the semi-trailer can be attached. It is a heavy-duty towing engine that provides the motive power for hauling a load. It is a common belief that a tractor head has many benefits such as towing heavy-duty trucks, increasing the efficiency of transportation, and reducing the cost of effort and time. Any special requirements for the specifications and configurations can be discussed and met accordingly.
ISUZU CHINA VC61 4x2 Tractor Head Specifications (Euro V)
Vehicle Model: | QL4180W2JDR（D17YR） | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 5790×2540×3720(mm) |
Wheelbase: | 3450mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1875mm | |
Front/Rear Suspension | 1370/970mm | |
Rear Axle Ratio: | 3.909 | |
Approach/Departure angle: | 17/42° | |
Weights and Capacities | Curb Weight: | 7250kg |
GVW: | 18000kg | |
Axle Loads: | 6500/11500 | |
Total mass of semi-trailer: | 34620kg | |
Maximum allowable load | 10620kg | |
Engine | Engine Model: | 6WG1-TCG51 |
Max output: | 338Kw | |
Displacement: | 15681ml | |
Horsepower: | 460HP | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF16S2230TO |
Forward Gear: | 16 Speed Gear | |
Backward Gear: | 2 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Cab | Number of Seats: | 2 |
Type: | Standard Roof One Bed | |
Chassis | Drive Type: | 4x2 |
Tires: | 7 (Including Spare Tire) | |
Tire Model: | 315/80R22.5 16PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Configurations: | Power Steering System | |
Air Conditioning | ||
Tubeless Tire | ||
ABS | ||
Free Maintenance Battery | ||
Central Lock | ||
Widened Bumper | ||
Power Window | ||
Driving Data Recorder | ||
Front Chrome Kit | ||
Rear axle air suspension | ||
Air Suspension Cabin | ||
Air Suspension Seat | ||
Aluminum Alloy Gas Tank | ||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

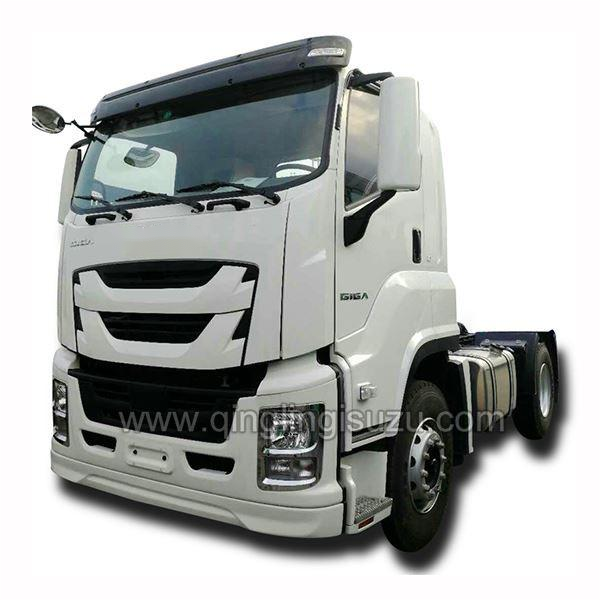

Photo for Reference:
