The Semi-tractor is one of truck types designed to tow a trailer with maximum weight of 34620 kg. It fully complies with Euro 5 emission standard. And the equipped engine is Isuzu engine 6WG1-TCG52 with 420 horsepower which is strong enough to reach strength and durability. The transmission has 16 forward gears and 2 backward gears.
Description of Vocational Features:
This heavy-duty towing engine which provides motive power for hauling load can be a good choice for loading and transporting various heavy cargos efficiently many times. It is commonly used in towing heavy-duty trucks that demand a lot of strength from the engine. Any special requirements for the specification and configuration can be discussed and met accordingly.
ISUZU CHINA VC61 4x2 Tractor Head Specifications (Euro V)
Vehicle Model: | QL4180W1JDR | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 5790×2540x3720mm |
Wheelbase: | 3450mm | |
Front/ Rear Wheel Distance: | 2065/1875mm | |
Front/Rear Suspension | 1370/970mm | |
Rear Axle Ratio: | 3.909 | |
Approach/Departure angle: | 17/42° | |
Leaf Spring: | 4/4+3 | |
Weights and Capacities | Curb Weight: | 7250kg |
Payload: | 10620kg | |
GVW: | 18000kg | |
Axle Loads: | 6500/11500kg | |
Engine | Engine Model: | 6WG1-TCG52 |
Max output: | 308Kw | |
Displacement: | 15681ml | |
Horsepower: | 420hp | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF16S2230T0 |
Forward Gear: | 16 Speed Gear | |
Backward Gear: | 2 Speed Gear | |
Brake | Air Brake | |
Generator | 24V-60A | |
Cab | Number of Seats: | 2 |
Type: | High Roof Two Beds | |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 315/80R22.5 16PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Central Lock | |
4 | Power Window | |
5 | Retro-reflective Marking | |
6 | ABS | |
7 | Driving Recorder | |
8 | Free Maintenance Battery | |
9 | Widened Bumper | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

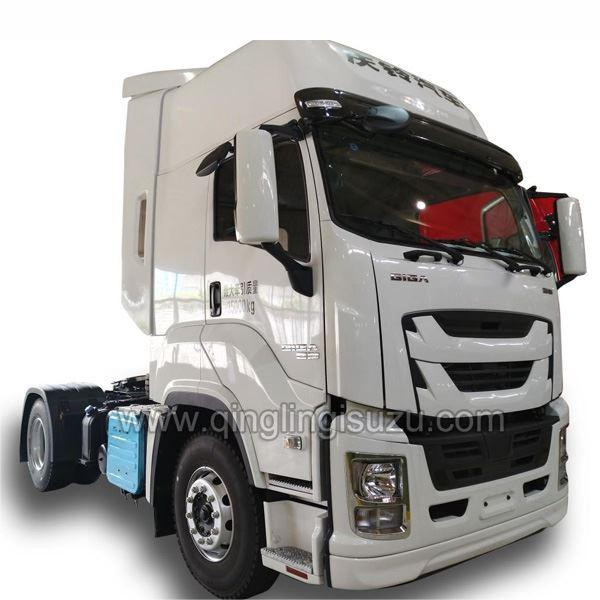

Photo for Reference:
