The water tanker is a special type of car that has been modified based on a sprinkler. The tank body has been specially treated for the purpose of transporting drinking water. Sprinklers are only used to install water for green spraying or road dusting.
Qingling Isuzu food-grade 700P stainless steel water tank truck, 304 stainless steel 6m³ tank body, can also be used to load edible water in addition to meeting the needs of water transportation. The water tank is made of 4mm thickness of the box, and a single warehouse design. The water outlet is equipped with stainless steel pipes and stainless-steel ball valves to avoid oxidation and rust.

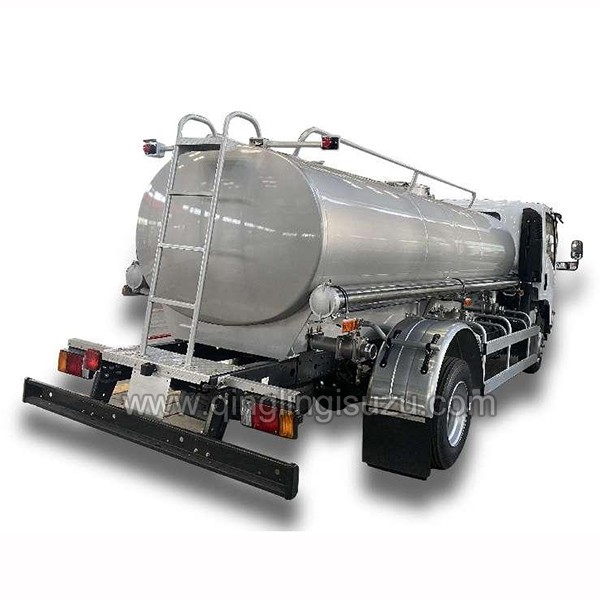

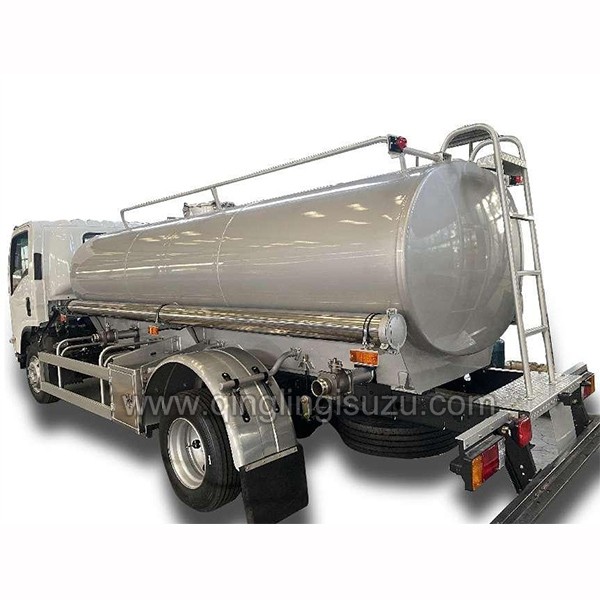

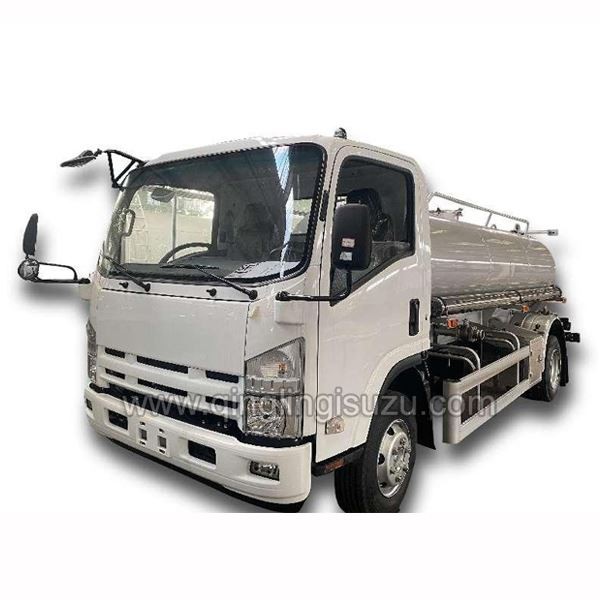

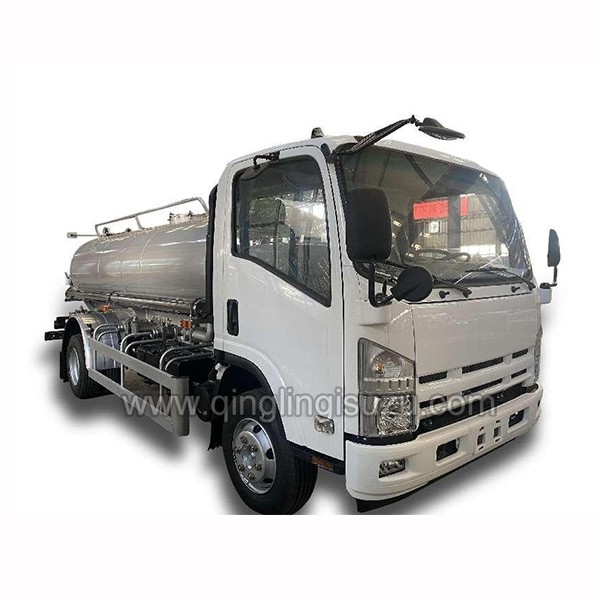

QINGLING ISUZU 700P Stainless Steel Water Tank Truck
Vehicle Model | QL1100A8KAY | |
Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 6950x2170x2350mm |
Wheelbase: | 3815mm | |
Front/ Rear Wheel Distance: | 1680/1650mm | |
Front/Rear Suspension | 1110/2070mm | |
Weights and Capacities | Curb Weight: | 4460kg |
GVW: | 10000kg | |
Axle Loads: | 3350/6650 | |
Engine | Engine Model: | 4HK1-TC51 |
Max output: | 141Kw | |
Displacement: | 5193ml | |
Horsepower: | 192HP | |
Exhaust Gas Treatment Technology： | DPF | |
Cabin | Number of Seats: | 3 |
Chassis | Drive Type: | 4X2 |
Tires: | 8.25-20 14PR | |
Fuel Tank | Capacity | 100L |
Configurations | 1 | Power Steering System |
2 | Air Conditioning | |
3 | ABS | |
4 | Free Maintenance Battery | |
5 | Retro-reflective Marking | |
6 | PTO | |
Tank Body | Water Tank Volume: | 6m3 |
Water Tank Material: | 304 Stainless Steel | |
Water Tank Opening: | 1 stainless steel tank lid, manhole diameter 500mm, 1 breathing valve | |
Number of Bin: | Single, 2 swash plate | |
Thickness of Water Tank: | Tank body 4mm, head 5mm | |
Water Tank Model: | 80QSB-60/90 water tank | |
Other Configurations | Stainless steel pipe, with stainless steel ball valve, | |
20M fire hose | ||
Tail with ladder, side and rear lights, side fence, carbon steel rear bumper, LED lamps, waterproof plug | ||
