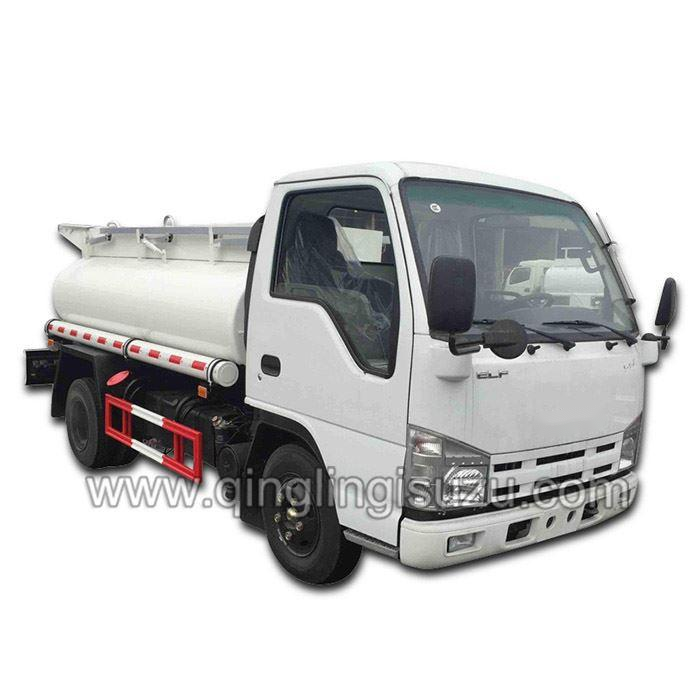

This tanker was converted from a Qingling Isuzu Euro 5 chassis. Powered by a 4KH1CN5HD engine with 130hp. Equipped with manual transmission 5 forward gears and 1 reverse gear. The tank capacity is 4 cubic metres.The tank has high strength, stable gravity,safe and stable vehicle, performance.
Mainly used for transport and storage of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-oil products, alcohols, aldehydes, benzene, ether and other liquid substances. Depending on the purpose and use of the environment, we can design customized various functions for refueling or transporting various types of oil. Has the self-absorption of oil, self-emissions of oil, loading or discharge of oil and other functions more.

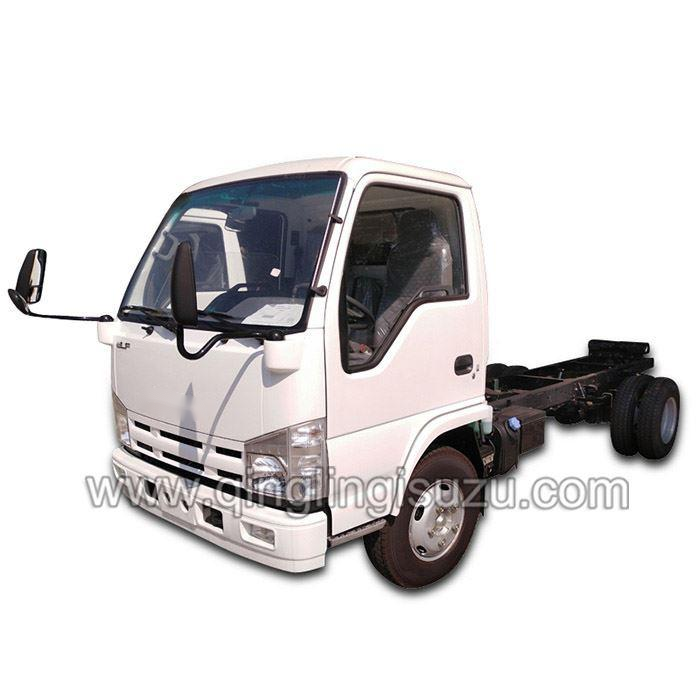

Chassis
Tanker
ISUZU CHINA 100P 4x2 4m³ Tanker Specifications (Euro V)
|
Vehicle Model: |
QL1042A6FAY |
|
|
Vehicle Dimensions and Parameters |
Overall Dimension (L x W x H) |
5900×1860×2420mm |
|
Wheelbase: |
2765mm |
|
|
Front/ Rear Wheel Distance: |
1504/1525mm |
|
|
Front/Rear Suspension |
1015/1450mm |
|
|
Approach/Departure angle: |
24/16° |
|
|
Leaf Spring: |
3/3+2 |
|
|
Weights and Capacities |
Curb Weight: |
2960kg |
|
Payload: |
4340kg |
|
|
GVW: |
7300kg |
|
|
Engine |
Engine Model: |
4KH1CN5HD |
|
Max output: |
96Kw |
|
|
Displacement: |
2999ml |
|
|
Horsepower: |
130Ps |
|
|
Exhaust Gas Treatment Technology： |
DPF |
|
|
Transmission |
Transmission: |
Manual MSB-5MT |
|
Forward Gear: |
5 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Hydraulic Brake |
|
|
Front Drum Back Drum |
||
|
Generator |
12V- 60A |
|
|
Cabin |
Number of Seats: |
2 |
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7(Including Spare Tire) |
|
|
Fuel Tank
|
Number: |
1 |
|
Capacity: |
100L |
|
|
Top Parameters |
Tank volume |
4m³ |
|
Number of tanks |
1 |
|
|
Top Configurations |
Equipped with power take-off, standard gear pump, nonreturn flow meter, metering pressure oil discharge port, non metering pressure oil discharge port, grounding wire, fire cap, fire extinguisher, two pcs 3M oil pipelines, and carbon steel explosion-proof cover. |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-reflective Marking |
|
|
6 |
Cab Tilting System |
|
|
7 |
Free Maintenance Battery |
|
