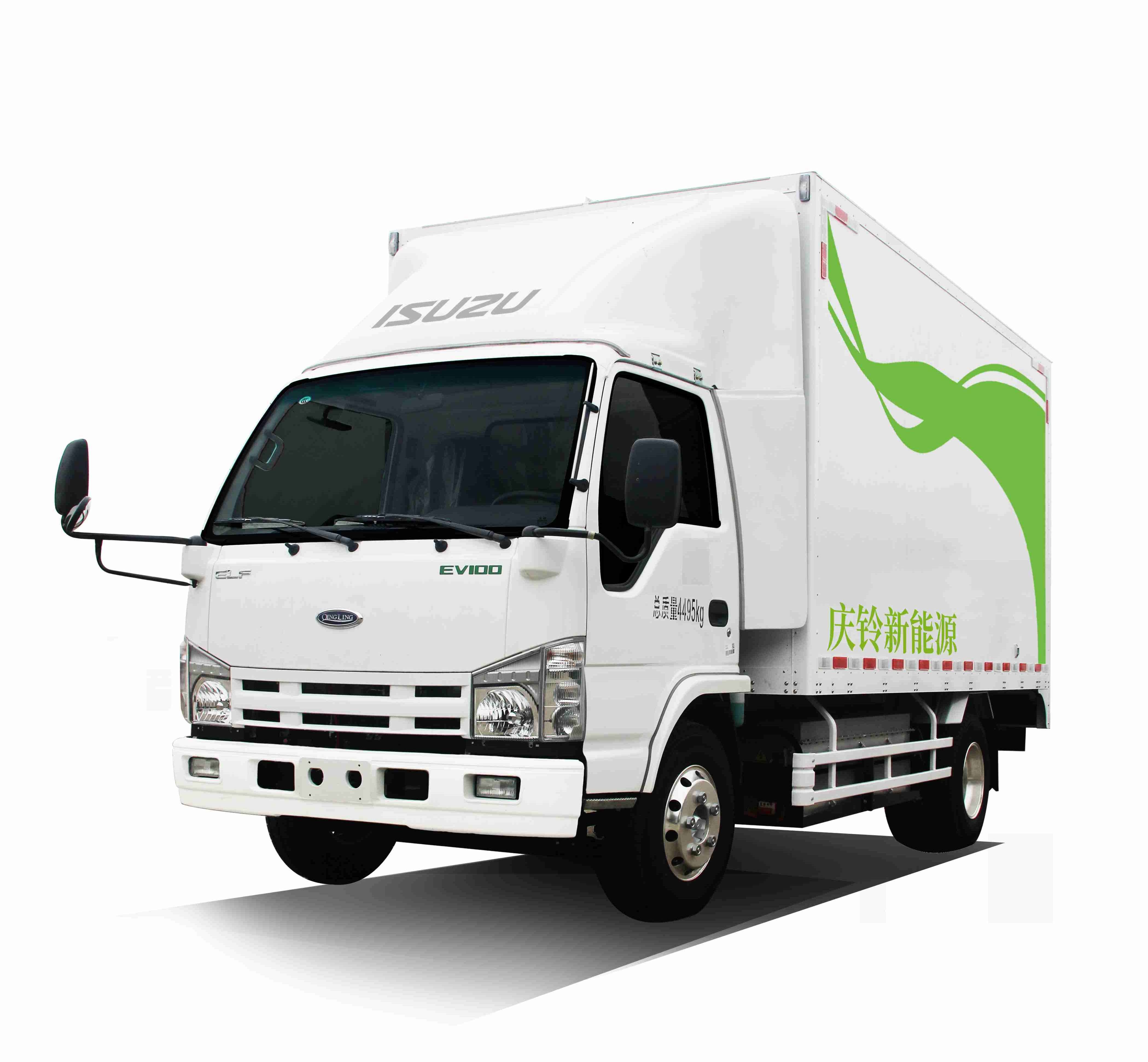

Qingling China 5Ton Commercial Electric Cargo Truck

Vehicle Parameters

Overall Dimension(L x W x H)

5995×2100×3100(mm)

Box Body Dimension(L x W x H)

4250×2050×2100(mm) 

Curb Weight:

2940Kg

Payload:

1555kg

GVW:

4495Kg

Wheelbase:

3360mm

Drive Type:

Motor Direct Driving

Driving Motor

Model No.:

YTD060W23

Type:

Permanent magnet synchronous motor

Rated/Peak Power:

60/110kw

Rated/Peak Torque:

310/1000N.m

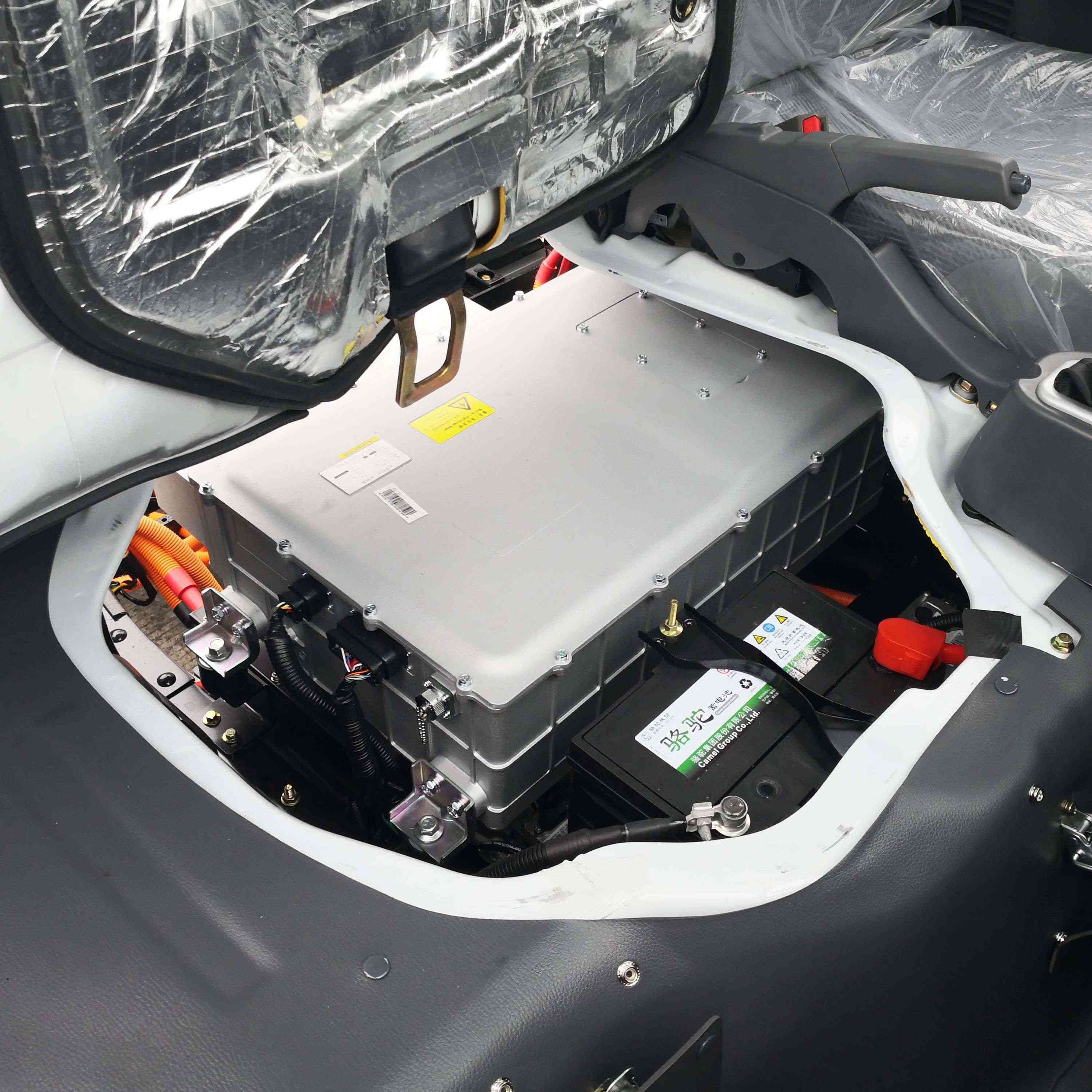

Battery

Type/Model/Brand:

Lithium iron phosphate battery/CB220/CATL

Capacity:

106.95kwh

Voltage:

537.6V

Performance

Maximum Speed:

100km/h

Driving Range:

260km

Charge mode:

Fast charge

Max Climb Capability

30%

Cab

Front Seat:

2

Front/ Rear Wheel Distance:

1504/1525mm

Front/Rear Suspension:

1015/1620(mm) 

Front Suspension Type:

3 pcs leaf spring

Chassis

Rear Suspension Type:

3+2 pcs leaf spring

Front/Rear Brake Type:

Drum type, double circuit hydraulic brake

Axle Loads:

1805/2690kg

Tires:

7(Including Spare Tire)

Tire Model:

7.00R16 8PR

 Standard Configuration

1

Power Steering

2

AC

3

ABS

4

Tubeless Tires
