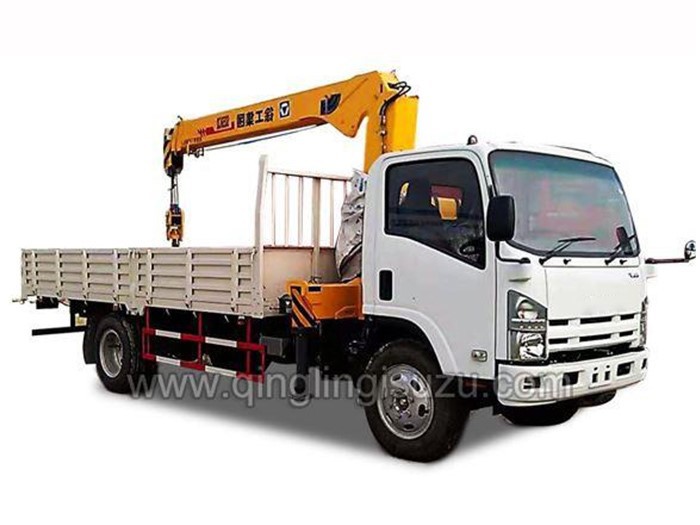

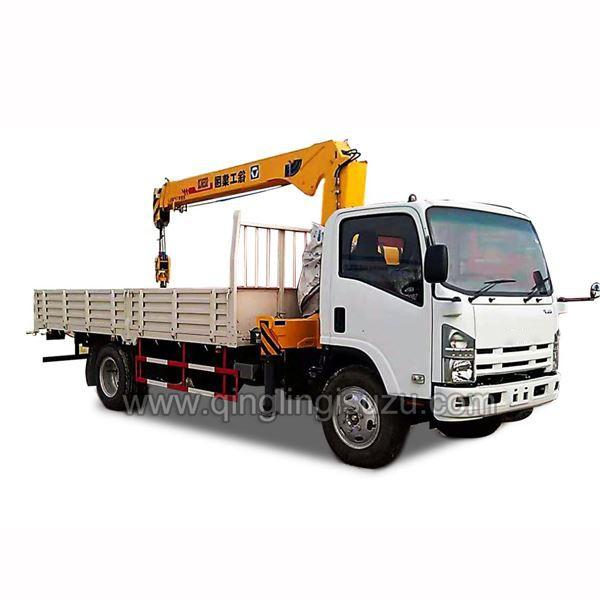

This crane truck is modified from Qingling Isuzu 700P chassis with 5 tons lifting capacity. Its engine is durable and powerful by using the Isuzu engine model 4HK1-TCG40 which can produce 189 horsepower. It conforms to Euro 4 emission standard. And the equipped transmission has 6 forward gears and 1 backward gear.
Description of vocational Features:
This modified crane truck is competent to lift 5 tons of materials. It is very efficient when it comes to moving heavy equipment, machinery, vehicles, and other items. It is widely used in construction sites, manufacturing sectors, mills, factories, and for transportation of heavy tools. Any special requirements regarding the specifications and configurations can be discussed and met accordingly.
New Cabin
The new cabin model adopted front headlight follow-up steering technology, new 700P cabin is more beautiful, comfortable, and safe.
New Power
ISUZU world-leading 4KH1CN-type brand new diesel engine with fully-electronic precise control and high-pressure common rail is employed, with stronger power, lower oil consumption, better oil adaptability, and better low-temperature starting property.
More environmentally friendly
Qingling Isuzu Trucks have achieved low pollution and low fuel consumption throughout the life cycle, and the perfromance of the whole vehicle is simultaneously improved, the noise is lower, the jitter is smaller, and the vehicle is quieter and more comfortable.
More economical (fuel efficient)
Low fuel consumption, compared with other vehicles of the same load capacity, fuel economy 10%-15%; high reliability, maintenance costs low.
Stronger oil adaptability
Taking full account of user's conditions of use, and matching development, improved the adaptability of oil products.
ISUZU CHINA 700P 4x2 5 Tons Crane Truck Specifications (Euro IV )
Vehicle Model: | QL11009PARY | |
Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 8912x2170x2410mm |
Wheelbase: | 5200mm | |
Front/ Rear Wheel Distance: | 1680/1650mm | |
Rear Axle Ratio: | 4.1 | |
Approach/Departure angle: | 21/10° | |
Leaf Spring: | 8/10+6 | |
Weights and Capacities | Curb Weight: | 3100Kg |
Payload: | 6705Kg | |
GVW: | 10000Kg | |
Engine | Engine Model: | 4HK1-TCG40 |
Engine Power: | 139(kw) | |
Displacement: | 5193(ml) | |
Horsepower: | 189PS | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 12V-60A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 235/75R17.5 | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Crane Parameters
| Max. lifting capacity | 5000 kg |
Max. pressure of hydraulic system | 22MPa | |
Max. working radius | 11 m lift 500 kg | |
Crane weight | 2260Kg | |
Pump capacity | 63 ml/r | |
Crane weight | 2000 kg | |
Installation space | 900 mm | |
Rotation angle | 360 Continuous | |
Boom Raising angle | 1°~80° | |
Boom type / section | Hexagon / 4 | |
Outrigger extension | 5100 mm | |
Box Dimension | 6012x2150x450mm | |
Configurations | Power Steering System | |
Air Conditioner | ||
Retro-reflective Marking | ||
ABS | ||
Free Maintenance Battery | ||
Cab tilting mechanism | ||
Notes: Above specs is for reference, any other specs needed, or special requirements, can be discussed accordingly.

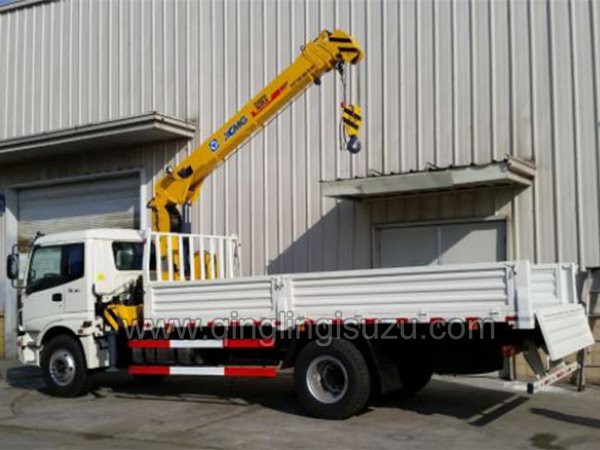

Photo for Reference:
