ISUZU CHINA 700P 3m3 Mixer Truck Specs(Euro IV)
Chassis Model: | QL11009HARY | |

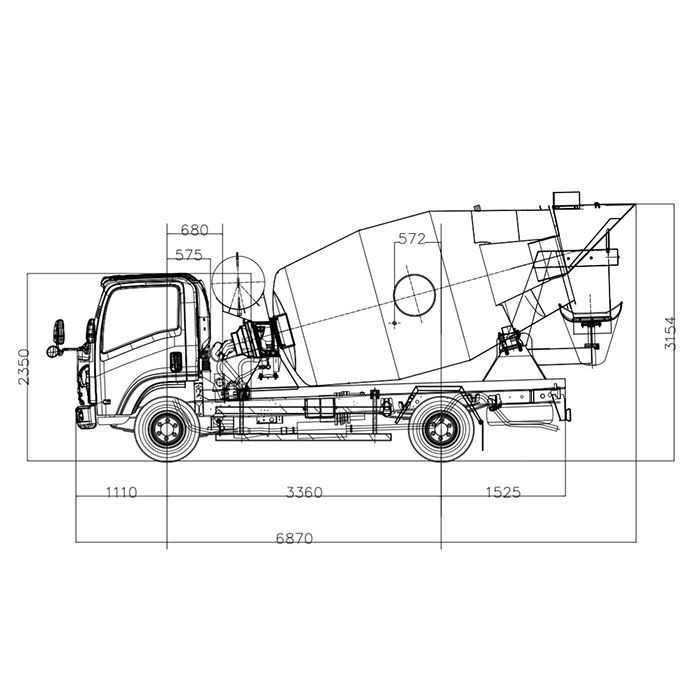

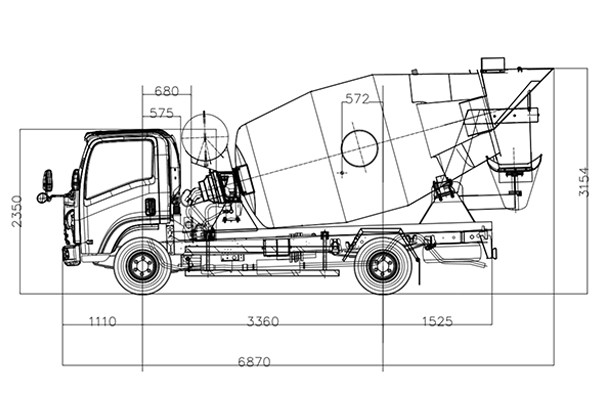

Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6870*2200*3154mm |
Wheelbase: | 3360mm | |
Front/ Rear Wheel Distance: | 1680/1650mm | |
Front/Rear Suspension | 1110/1470mm | |
Rear Axle Ratio: | 4.1 | |
Approach/Departure Angle: | 18/20° | |
Leaf Spring: | 8/10+6 | |
Weights and Capacities | Curb Weight: | 4795Kg |
Payload: | 7070kg | |
GVW: | 11995Kg | |
Axle Loads: | 3350/6650kg | |
Engine | Engine Model: | 4HK1-TCG40 |
Max output: | 139Kw | |
Displacement: | 5193ml | |
Horsepower: | 189HP | |
Exhaust Gas Treatment Technology： | DPF | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V- 80A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7 (Including Spare Tire) | |
Tire Model: | 8.25R20 16PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | ABS | |
4 | Tubeless Tire | |
5 | Retro-Reflective Marking | |
6 | Free Maintenance Battery | |
Mixer Body Parameter: | Rated agitating capacity | 3m3 |
Pump | PMH72 | |
Motor | PMH72 | |
Gear Box | PMB 6SP | |
Oil Cooler | FLG-6 | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly；

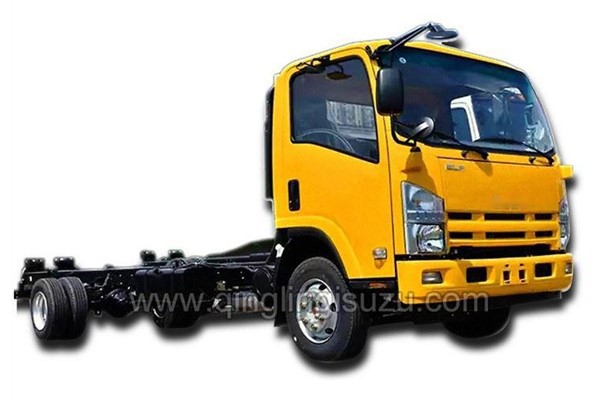

Photo for Reference:
