This dump truck is modified from Qingling Isuzu 700P chassis applied with dumper body with 6 m³volume. The equipped engine model is 4HK1-TCG40 with 189 horsepower which is competent to reliable durability and strength. The highest speed of the truck reaches 110 km per hour, and the transmission has 6 forward gears and 1 reverse gear. The exhaust gas treatment technology applied in the truck make it conform to the Euro 4 emission standard. It’s a good choice for you to load various materials at different scenes, especially at construction sites. If you are interested in this vehicle, please feel free to contact us.
Description of Vocational Quality:
This dump truck is equipped with an open dumper which can be controlled manually using a hydraulic system to raise and lower the truck bed. It is commonly used for transportation of gravel, dirt, and sand from one job site to another, due to its functions differ from the conventional trucks, it plays an important role at any construction sites. In addition, it can be also used for removing waste materials, such as old bricks, tree stumps, excavated dirt, etc. Any special requirements for the specifications and configurations can be discussed and met accordingly.
ISUZU CHINA 700P 6m³4x2 Dump Truck Specifications (Euro IV )
Chassis Model: | QL11009HARY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 5850 x 2190 x 2695mm |
Wheelbase: | 3360mm | |
Front/ Rear Wheel Distance: | 1680/1650mm | |
Front/Rear Suspension | 1110/1470mm | |
Rear Axle Ratio: | 4.1 | |
Approach/Departure angle: | 18/20° | |
Leaf Spring: | 8/10+6 | |
Weights and Capacities | Curb Weight: | 5140kg |
GVW: | 10000kg | |
Axle Loads: | 3350/6650kg | |
Engine | Engine Model: | 4HK1-TCG40 |
Engine Power: | 139(kw) | |
Displacement: | 5193(ml) | |
Horsepower: | 189PS | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-60A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 235/75R17.5 | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Top Parameters | Containers Internal Dimensions | 3850 x 2000 x 800mm |
Thickness | Bottom 4mm, side 3mm | |
Lifting Method | Middle Lift | |
Configurations: | Power steering system | |
Air Conditioner | ||
Retro-reflective Marking | ||
ABS | ||
Free Maintenance Battery | ||
Cab tilting mechanism | ||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

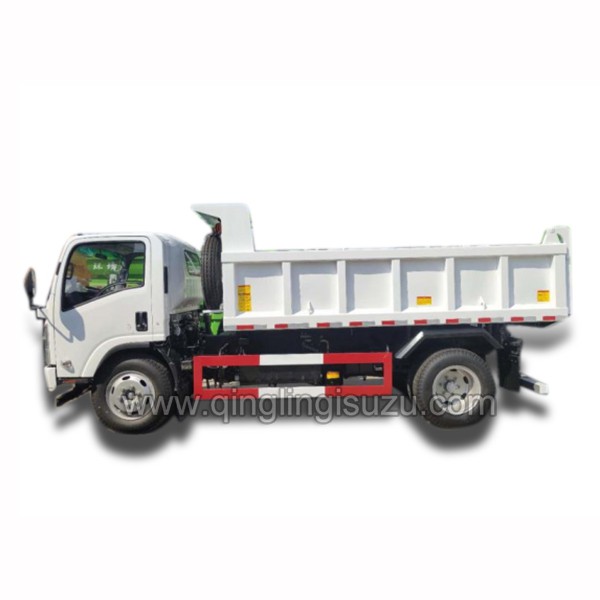

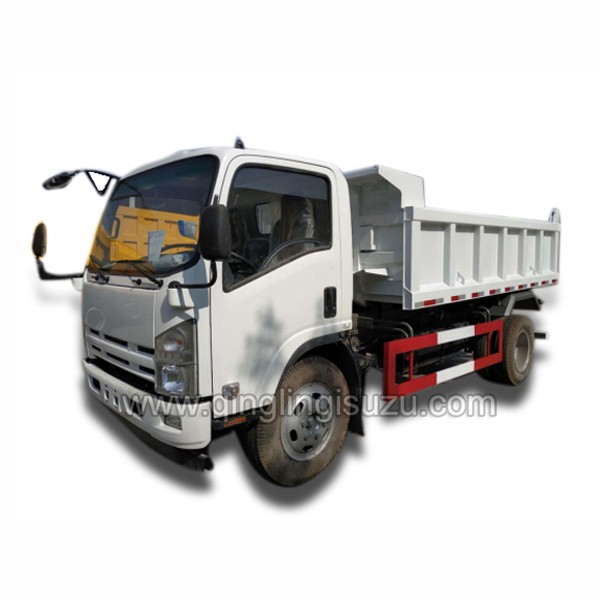

Photo for Reference:
