QINGLING developed a Euro 6 chassis with 3 seats, a wheelbase of 3365mm, GVW of 8.2 tons, 130hp, and a width of 2.1m. The aerodynamic body design ensures low fuel consumption and maintenance costs. Highly maneuverable and suitable for various vocational modifications, this truck combines parts from many famous international brands, making it a reliable choice for your business.
Specifications:
Vehicle Model: | QL1080BUHAY | |
Dimensions and Parameters | Overall Dimension(L x W x H) | 5875×2130×2315mm |
Wheelbase: | 3365mm | |
Front/ Rear Wheel Distance: | 1640/1655mm | |
Front/Rear Suspension | 1120/1390mm | |
Approach/Departure angle: | 23/19° | |
Leaf Spring: | 6/6+6 | |
Weights and Capacities | Curb Weight: | 2560kg |
Payload: | 5525kg | |
GVW: | 8280kg | |
Axle Loads: | 3000/5280kg | |
Engine | Model: | 4KH1CN6HB |
Cylinder | 4 cylinders in line | |
Torque(N.m/rpm) | 320/1400 | |
Max output: | 97Kw | |
Displacement: | 2999ml | |
Horsepower: | 130hp | |
Exhaust Technology： | SCR+DPF | |
Transmission | Forward Gear: | 6 Speed Gear |
Brake | Air Brake | |
Cab | Number of Seats: | 3 |
Chassis | Tires: | 7(Including Spare Tire) |
Tire Model: | 7.50R16LT 14PR | |
Fuel Tank | Capacity: | 100L |
Configurations: | Power Steering System | |
AC | ||
Retro-Reflective Marking | ||
ABS | ||
Free Maintenance Battery | ||

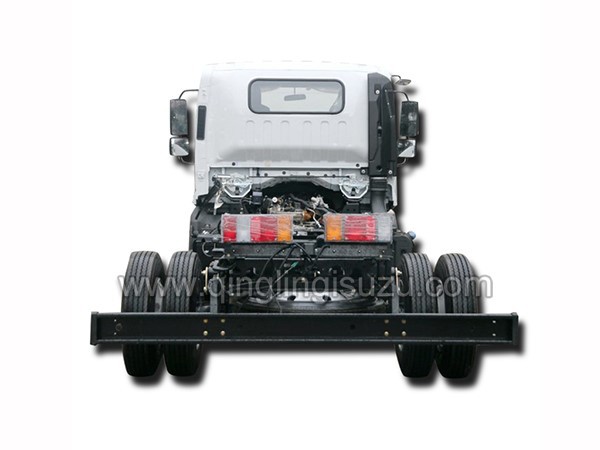

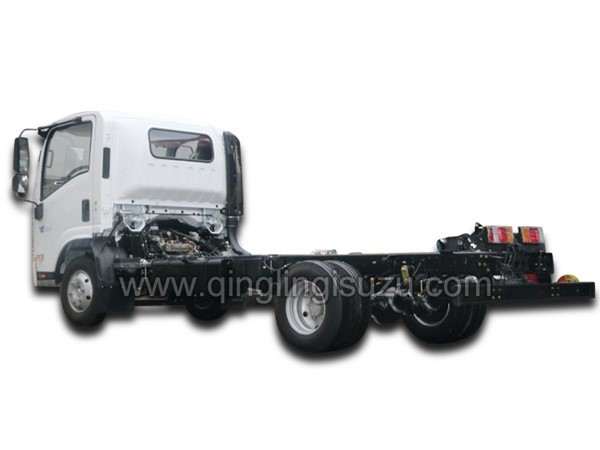

Photo for Reference:
