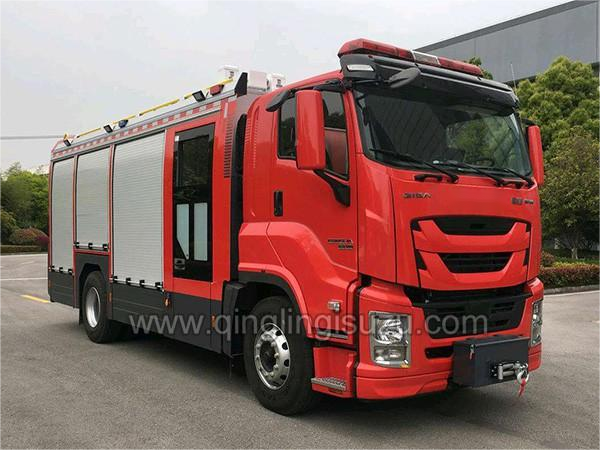

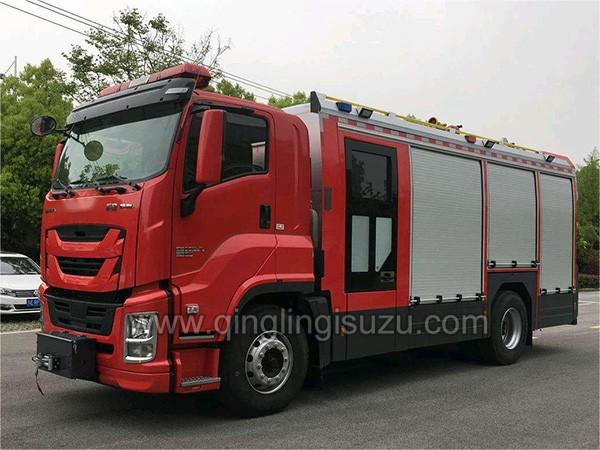

This firefighting truck is altered from Qingling chassis applied with water tanker body made of stainless steel 304 with loading capacity of 8m³. It’s powered by engine 6UZ1-TCG50 with 380 horsepower. The exhaust gas treatment technology applied in the truck makes it comply with the EuroⅤ compliant. And the equipped transmission has 8 forward gears and 1 backward gear.
This firefighting truck combines water tank, fire pump, fire monitor, alarms, signals, lighting devices, as well as essential rescue equipment. Each of these components plays a critical role in batting fires in different scenarios. It’s an ideal vehicle for extinguishing fire at the initial stage without letting it spread and cause massive damage. And after the fire spreads, it’s also competent for firefighters to rescue lives, properties, and natural resources from getting destroyed by fire. Any special requirements for specifications and configurations can be discussed and met accordingly.
Vehicle Model: | QL5210TZZU2ADRY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 8800×2540×3600mm |
Wheelbase: | 4600mm | |
Front/ Rear Wheel Distance: | 2065/1855mm | |
Front/Rear Suspension | 1370/2030mm | |
Rear Axle Ratio: | 5.571 | |
Approach/Departure angle: | 17/23° | |
Leaf Spring: | 8/6+8 | |
Weights and Capacities | Curb Weight: | 11830kg |
Payload: | 9040kg | |
GVW: | 21000kg | |
Axle Loads: | 8000/13000kg | |
Engine | Engine Model: | 6UZ1-TCG50 |
Max output: | 278Kw | |
Displacement: | 9839ml | |
Horsepower: | 380Ps | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF8S2030TO |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Generator | 24V-120A | |
Cab | Number of Seats: | 2 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 315/80R22.5 20PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Retro-reflective Marking | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Central Lock | |
7 | Power Window | |
8 | Data Recorder | |
Water Tank | Capacity: | 8 Tons |
Material： | stainless steel 304 | |
Fire Pump: | Model: | Morita MD260A |
Fire Monitor | Model: | Elk 8500-02 manual |
Alarms, Signals and Lighting Device | 1 | Long alarm lamp |
2 | Horizontal lifting lamp | |
3 | Traction Towing winch | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;
