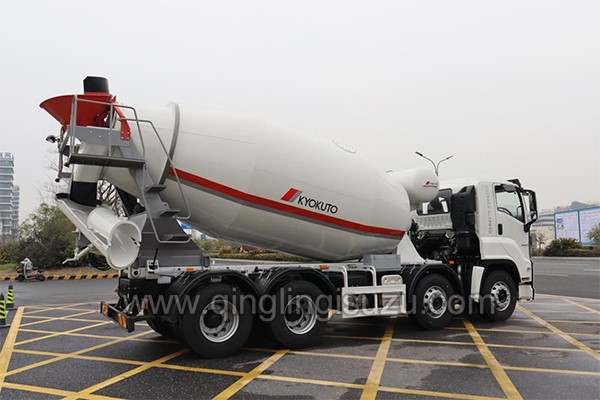

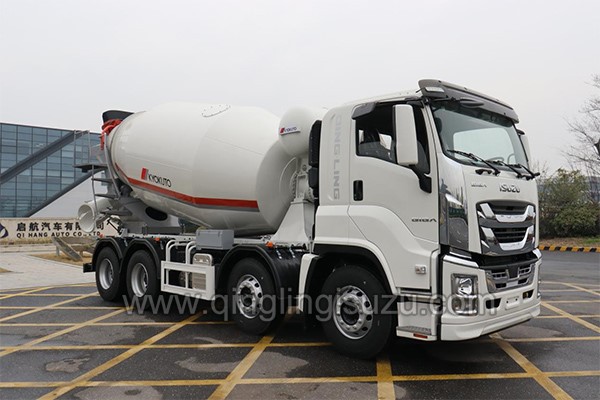

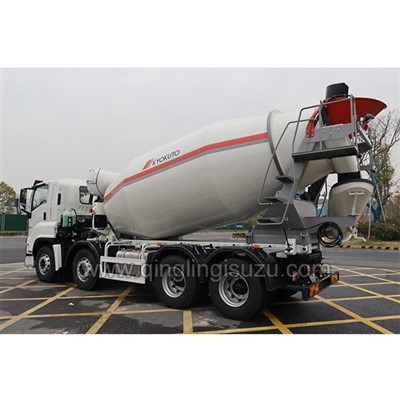

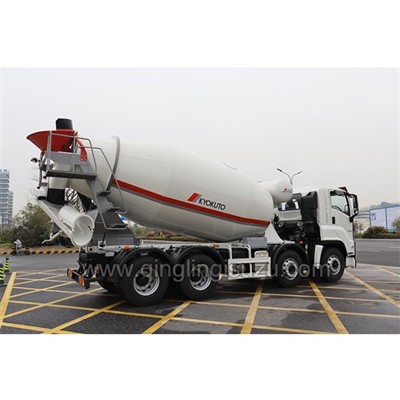

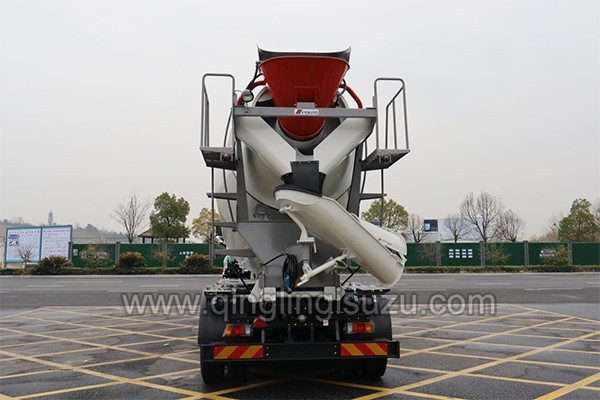

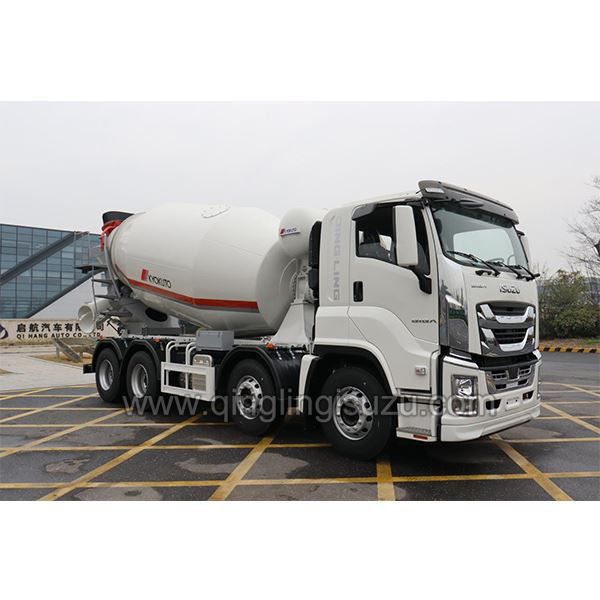

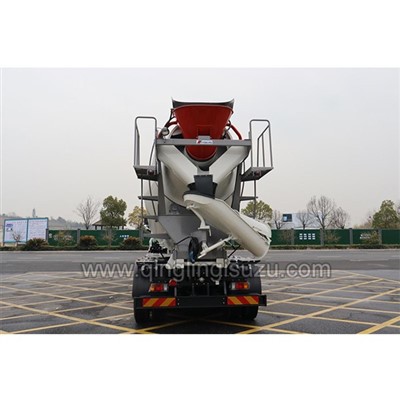

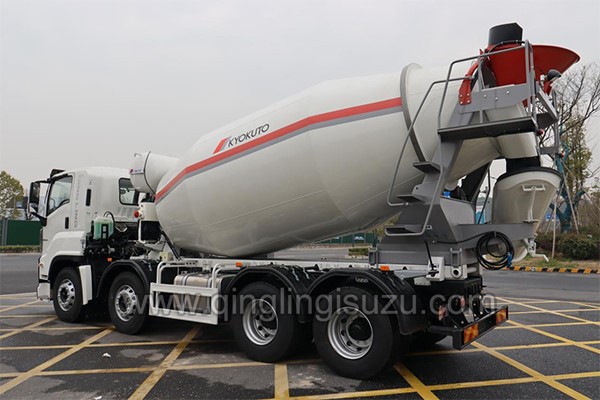

KYOKUTO 12m³ Mixer Truck-VC66-8x4

Chassis Model

QL2310U4TDHY(DE45H)

Chassis Dimensions and Parameters

Overall Dimension (L x W x H)

9892×2520×3997mm

Wheelbase

1850+2980+1370 mm

Front Wheel Distance

2060/2060mm

Rear Wheel Distance

1855/1855mm

Front/Rear Suspension

1370/1100mm

Rear Axle Ratio

5.571

Approach/Departure angle

25/25°

Leaf Spring

4/4/5

Weights and Capacities

Curb Weight

14000kg (varies to final design)

Payload

30870kg (varies to final design)

GVW

45000kg

Axle Loads

9000/9000/13750/13750 Kg

Engine

Engine Model

6UZ1-TCG61

Cylinder

6 Cylinders in line

Engine Features

Turbocharging, inter

cooling.

high-pressure common-rail

diesel injection system

liquid-cooled engine.

Torque(N.m)

1800

Max output

279KW

Displacement

9839ml

Horsepower

380Ps

Exhaust Gas Treatment Technology

SCR+DPF

Transmission

Transmission

ZF8S

Forward Gear

8 Speed Gear

Backward Gear

1 Speed Gear

Brake

Air Brake

Front Drum Back Drum

With Exhaust Brake

Generator

24V

Cab

Number of Seats

2

Cabin Type

Standard Roof One Bed

Drive Type

8x4

Tires

13(Including Spare Tire)

Tire Model

12R22.5 18PR

Fuel Tank

Number

1

Capacity

400L

Configurations

1

Power Steering System

2

Air Conditioning

3

Central Lock

4

Power Window

5

Driving Data Recorder

6

Tubeless Tire

7

ABS

8

Free Maintenance Battery

9

Aluminum Alloy Gas Tank

10

Widened Bumper

11

Air Suspension Cabin

12

Air Suspension Seat

Mixer Body

Brand

KYOKUTO

Agitating capacity

12m³

Material

B480

Reduction gearbox

PMP PMB 7.1(Italy)

Pump

PMP PMH P90(Italy)

Motor

PMP PMH M90(Italy)
