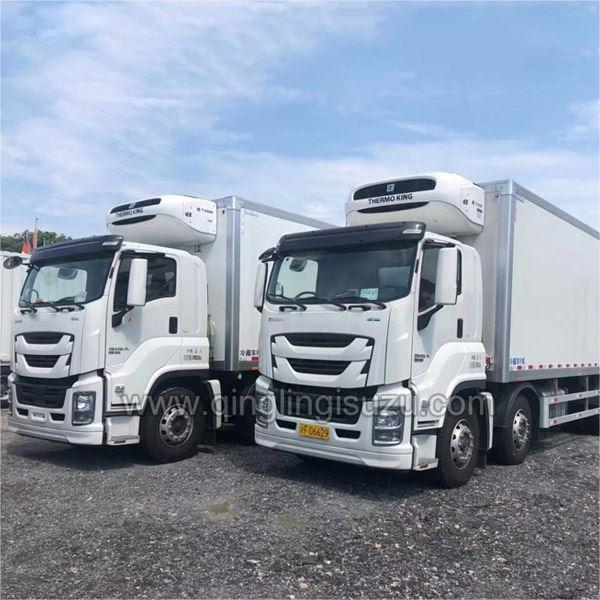

As one of the most professional Thermo King Refrigerator Truck with Qingling ISUZU VC61 Chassis. Qingling ISUZU 8.6 meter refrigerator van truck is made with an 8800*2600*2620mm box and Thermo King SV800 Refrigeration Machine which has the lowest temperature until -18℃.
Qingling Isuzu VC61 refrigerated truck, The inner and outer skins of the compartment are made of glass steel plate, and the inter-layer of the steel plate is made of polyurethane foam. The door frame, door lock parts, and hinge plate are all made of 304 stainless steel plates.

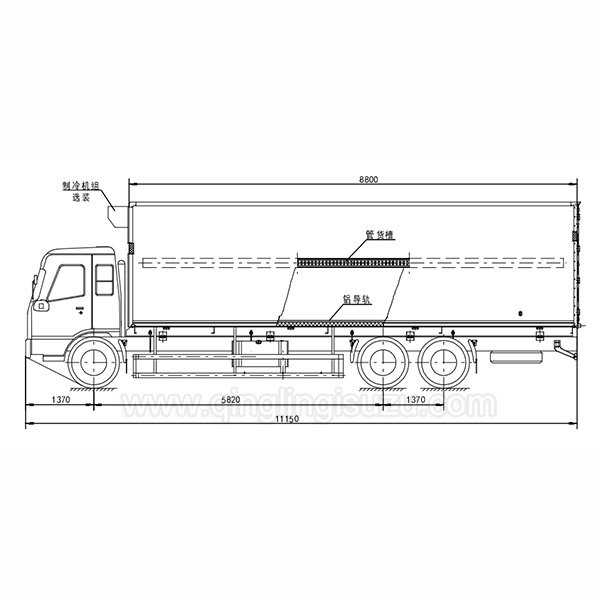

QINGLING ISUZU VC61 Refrigerated Truck(Euro V )
Vehicle Model | QL5330TZZU1VDZY | |
Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 11150×2540×3055mm |
Wheelbase: | 5820+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1855/1855mm | |
Front/Rear Suspension | 1370/2590mm | |
Weights and Capacities | Curb Weight: | 9300kg |
GVW: | 33000kg | |
Axle Loads: | 7000/26000 | |
Engine | Engine Model: | 6UZ1-TCG50 |
Max output: | 279Kw | |
Displacement: | 9839ml | |
Horsepower: | 380HP | |
Exhaust Gas Treatment Technology： | SCR | |
Cabin | Number of Seats: | 2 |
Chassis | Drive Type: | 6X4 |
Tires: | 295/80R22.5 16PR | |
Fuel Tank | Capacity | 400L |
Configurations | 1 | Power Steering System |
2 | Air Conditioning | |
3 | ABS | |
4 | Free Maintenance Battery | |
5 | Retro-reflective Marking | |
Box Size | 8800*2600*2620mm | |
Box material | The thickness of the compartment plate is 90mm | |
Refrigerator | THERMO KING SV800 | |
Lowest temperature | -18℃ | |
