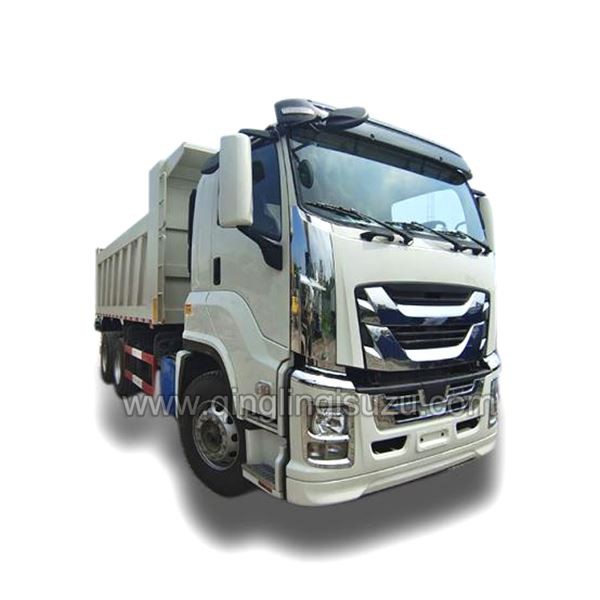

This dump truck is altered from Qingling Isuzu VC61 chassis applied with dumper body with a volume of 20m³. It’s powered by Isuzu engine model 6WG1-TCG52 with 420 horsepower. The exhaust gas after treatment system applied in the truck is SCR, and the emission standard is Euro 5. The highest speed of the truck reaches 100km per hour. And the transmission has 8 forward gears and 1 backward gear. It’s capable to reach reliable durability and strength with a reasonable price.
Description of Vocational Features
This dump truck is a great option for users who want to load various materials, especially materials used at construction sites such as stones, cement, sand, soil, bricks, and many other heavy or loose materials. The dumper hoist is operated hydraulically which would be convenient for users to unload loose materials or heavy items without an effort. Any special requirements for the specifications and configurations can be discussed and met accordingly.
ISUZU CHINA VC61 6x4 20m³Dump Truck Specifications (Euro V)
Vehicle Model: | QL1250U1QDZY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 8550x2500x3450mm |
Wheelbase: | 3985+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1855/1855mm | |
Rear Axle Ratio: | 5.571 | |
Leaf Spring: | 8/10 | |
Weights and Capacities | Curb Weight: | 14220Kg |
GVW: | 25000Kg | |
Axle Loads: | 7000/18000kg | |
Engine | Engine Model: | 6WG1-TCG52 |
Max output: | 308Kw | |
Displacement: | 9839ml | |
Horsepower: | 420Ps | |
Exhaust Gas Treatment Technology： | SCR | |
Without VGT | ||
Transmission | Transmission: | ZF8S2030T0 |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Cab | Cabin Type: | Plat Roof One Sleeper |
Number of Seats: | 2 | |
Chassis | Drive Type: | 6x4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 12R22.5 18PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Tops Parameters | Dump Body Parameter | 5600x2300x1500mm |
Hydraulic Cylinder | Middle lifting | |
Thickness of the dump body | Bottom 8mm, Side 6mm | |
Configurations: | Power Steering | |
Air Conditioner | ||
Tubeless Tire | ||
ABS | ||
Free Maintenance Battery | ||
Central Lock | ||
Power Window | ||
Data Recorder | ||
PTO | ||
Air Suspension Seat | ||
Air Suspension Cabin | ||
Front Chrome Plate Kit | ||
Aluminum Alloy Fuel Tank | ||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly

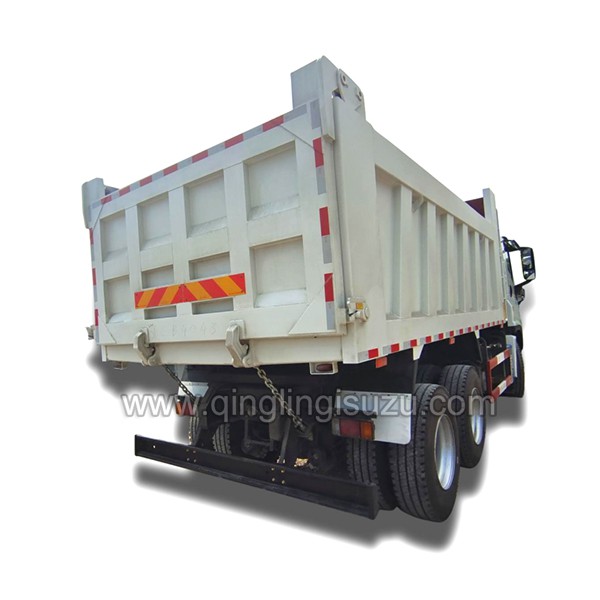

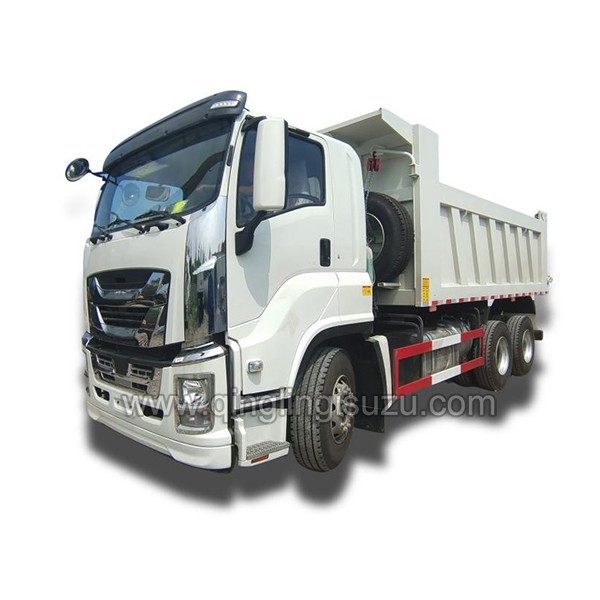

Photo for Reference:
