This dump truck is altered from Qingling Isuzu VC66 chassis applied with New “U” Type dumper body with a volume of 20m³. It’s powered by Isuzu engine model 6UZ1-TCG61 with 380 horsepower. The highest speed of the truck reaches 100km per hour. And the transmission has 8 forward gears and 1 backward gear. It’s capable to reach reliable durability and strength with a reasonable price.
This dump truck is a great option for users who want to load various materials, especially materials used at construction sites such as stones, cement, sand, soil, bricks, and many other heavy or loose materials. The dumper hoist is operated hydraulically which would be convenient for users to unload loose materials or heavy items without an effort. Any special requirements for the specifications and configurations can be discussed and met accordingly.
6x4 20m3 "U" Type Dump Truck LHD Specifications (Euro VI)
Vehicle Model: | QL1250U4QDZCY(DD25Z) | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 8400x2550x3580mm (varies to final design) |
Wheelbase | 3985+1370mm | |
Front Wheel Distance | 2060mm | |
Rear Wheel Distance | 1855/1855mm | |
Rear Axle Ratio | 5.571 | |
Leaf Spring | 8/10 | |
Weights and Capacities | Curb Weight | 14220Kg (varies to final design) |
Payload | 10650kg (varies to final design) | |
GVW | 25000Kg | |
Engine | Engine Model | |
Cylinder | 6 Cylinders in line | |
Engine Features | Turbocharging, inter cooling. high-pressure common-rail diesel injection system liquid-cooled engine. | |
Torque(N.m) | 1800 | |
Max output | 279KW | |
Displacement | 9839ml | |
Horsepower | 380Ps | |
Transmission | Transmission | ZF8S |
Forward Gear | 8 Speed Gear | |
Backward Gear | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V | |
Cab | Cabin Type | Standard Roof One Bed |
Number of Seats | 2 | |
Chassis | Drive Type | 6x4 |
Tires | 11(Including Spare Tire) | |
Tire Model | 12R22.5 18PR | |
Fuel Tank | Number | 1 |
Capacity | 400L | |
Tops Parameters | Dump Body Parameter | 5400*2300*1600mm |
Hydraulic Cylinder | Middle lifting | |
Type | "U" Type Robles Dump Box | |
Thickness of the dump body | Bottom 8mm, Side 6mm | |
Configurations: | Power Steering | |
Air Conditioner | ||
Tubeless Tire | ||
ABS | ||
Free Maintenance Battery | ||
Central Lock | ||
Power Window | ||
Data Recorder | ||
Air Suspension Seat | ||
Air Suspension Cabin | ||
Front Chrome Plate Kit | ||
Aluminum Alloy Fuel Tank | ||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly

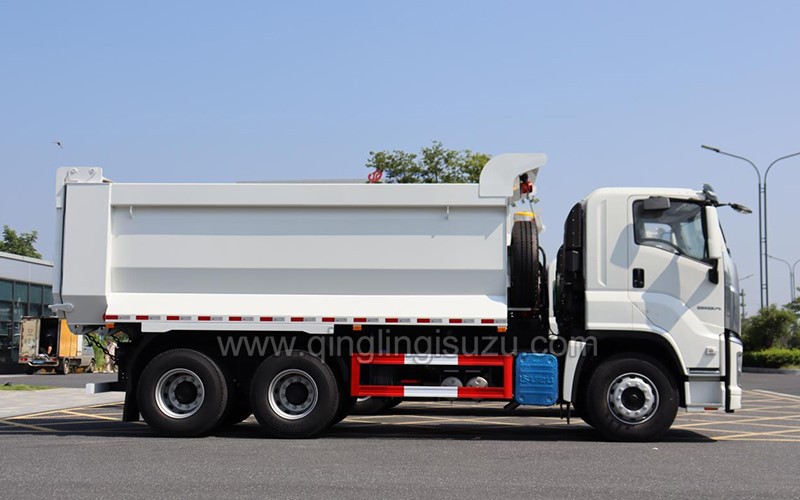

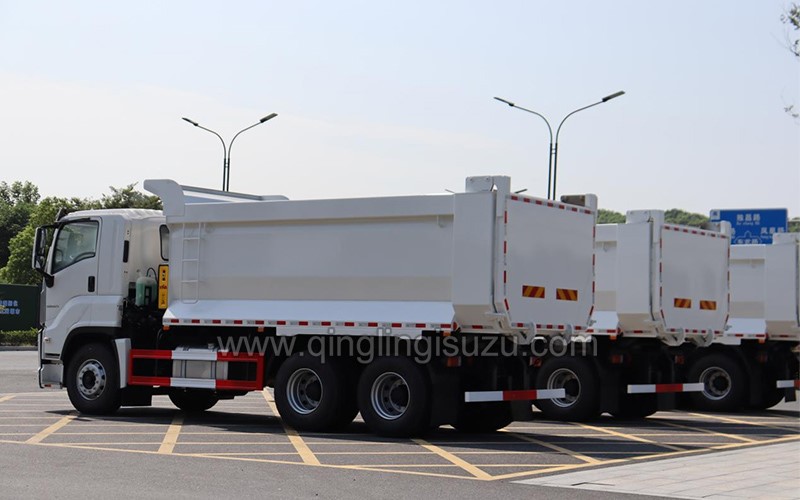

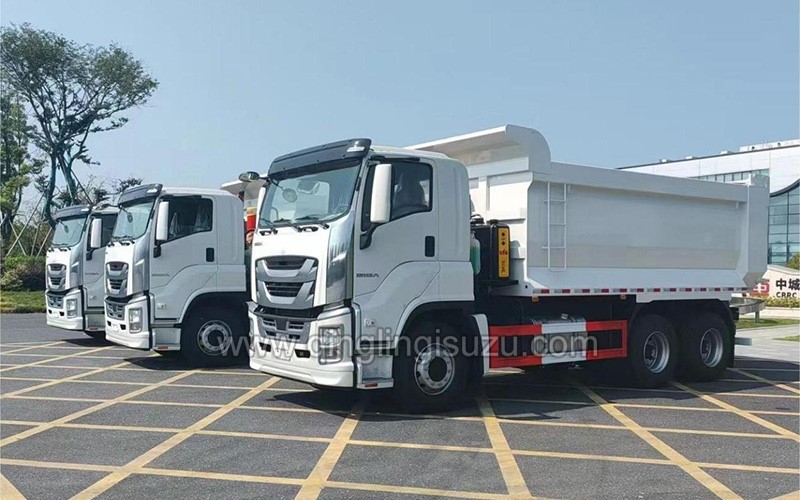

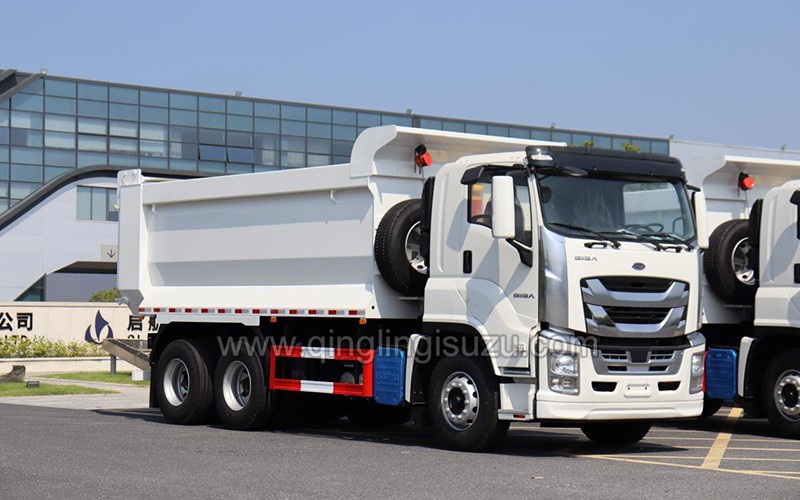

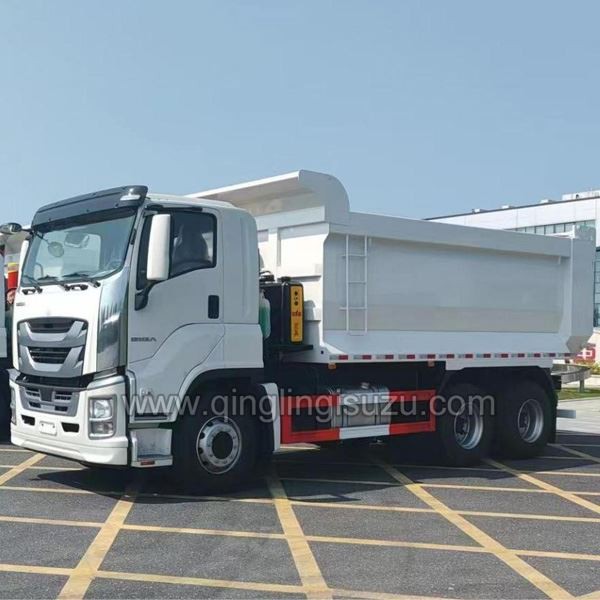

Photo for Reference:
