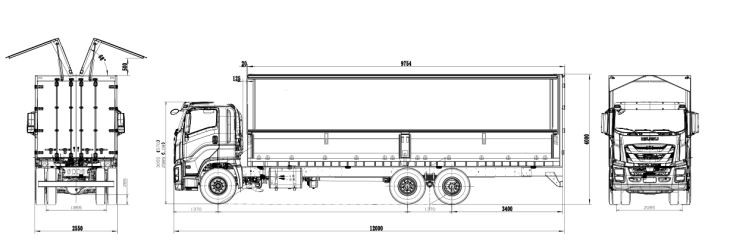

Qingling GIGA VC61 6x4 9m Aluminium Wing Van Truck 380 Horsepower

QingLing ISUZU 6x4 Aluminum Wingvan Truck:

-----Wingvan Body:

Wing opening type: Opened by hydraulic system, opening angle ≤78°; the lower part of the tank is arranged outside the longitudinal beams of the two sub-frames;The operation switch is arranged under the rear, with a cassette.

Double wing: Outer skin 0.8mm aluminum alloy corrugated plate + steel frame + inner plate 0.6mm galvanized plate; solid rivets on the outside;

1 strip (galvanized piece) is attached from the front to the back in the middle of the inner side of the wing;

The outer rivet spacing of the outer aluminum alloy corrugated board on the outer side of the wing is 50mm

Front wall: No outer skin, steel frame + inner plate is 1.5mm iron plate.

Top: 0.8mm aluminum alloy plate + steel frame + 5mm white waterproof plywood, the top of the center beam is poncho structure.

Rear wall: 1. Split rear door: 21mm laminate, open 2700, 6 hinges on one side;

2, locks: 4 sticks (2 on each side); 3, the rear hardware is stainless steel; 4, the rear tail lights need to be wrapped around.

Lower fence on each side: The lower fence is an aluminum alloy gusset, and the lower fences are double hinges;

One upper part of the inside of the lower fence is provided with a protective plate (galvanized piece) from front to back;

-----ISUZU 6U Engine:

Pursuing the fuel consumption perfromance of the practical speed zone with high frequency of use, from boosting to cooling, fuel multi-point injection, pursuing to minimize fuel cost and achieve powerful power in high torque and economic speed regions.

Low speed and high twist, continuous maximum torque in the range of 1100-1600rpm

------ZF Transmission:

The latest 4th generation ZF gearbox with high transmission efficiency (0.965-0.98), more fuel-efficient, high reliability

Lightweight: Optimized two-section aluminum housing, light weight 100 kg

Long life: short stroke long life synchronizer; gear full grinding process; built-in oil pump forced lubrication; optimized speed ratio distribution; low noise design

Fuel-saving: ZF 8-speed products, the engine is running at economic speed

Lightweight and flexible shifting: with shift servo

Dump Body：

A tipper is consisted of vehicle chassis, hydraulic lifting system, cargo body and takeoff device. The dump truck is used in the civil engineering, usually jointly operated with excavators, loaders, belt conveyor and other engineering equipment, constituting a load-transport-unload production line, which finishes earth, sand, powder material loading-transportation work.

With superior reliable product perfromance and rich accessories choices, we make a user-customized platfrom.

The whole vehicle axle load distribution is reasonable to meet the user needs.

Low gravity center, good discharge stability and vehicle perfromance.

Optimization of the structure of the hydraulic lifting system, high work efficiency, the strong lifting ability, the light overall weight, stable and reliable operation.

ISUZU CHINA VC61 6x4 Wing Van Truck Specifications (Euro V)
