The GKJH13 vehicle is a compact high-altitude operation vehicle with a 4x4 Qingling pickup truck chassis launched by Xuzhou Handler. Its performance has reached an international advanced level...
The GKJH13 vehicle is a compact high-altitude operation vehicle with a 4x4 Qingling pickup truck chassis launched by Xuzhou Handler. Its perfromance has reached an international advanced level.
Powerful Power and Good Maneuverability: The GKJH13 hybrid-arm high-altitude operation vehicle adopts a double-row, high-power SUV-level premium pickup truck. It has a compact structure, small size, lightweight, low center of gravity, and excellent maneuverability. It can quickly reach the work position and has a high pass-through rate.
Excellent Working Perfromance: It features a hybrid arm structure with articulated and telescoping booms. This design facilitates precise positioning of the aerial workspace, improves work efficiency, and excels in crossing obstacles in the air.
Outstanding Operational Perfromance: Equipped with electro-hydraulic proportional control, the operation is simple, control is precise, speed regulation is sensitive, and movements are smooth. This enables more accurate live-line operations and provides all-round safety assurance.
High Safety Standards: The vehicle is equipped with comprehensive safety devices, including cylinder anti-retraction devices, outrigger anti-retraction devices, emergency manual hydraulic pump, on-off interlocking device for getting on and off the vehicle, interlocking between arms, emergency stop device, horizontal status testing device, anti-tilting system, hydraulic system overload sensor, anti-interference sensor, and safety belt.
4x4 12.7m Insulated Bucket Tuck LHD Specifications (Euro V)
|
Vehicle Model: |
QL2040CLHWY |
|
|
Vehicle Dimensions and Parameters
|
Overall Dimension (L x W x H) |
5370×1885×1800 mm (varies to final design) |
|
Wheelbase: |
3406mm |
|
|
Front/ Rear Wheel Distance: |
1590/1590mm |
|
|
Front/ Rear Suspension |
945/1019mm |
|
|
Leaf Spring |
-/5 |
|
|
Weights and Capacities
|
Curb Weight: |
1950kg (varies to final design) |
|
Payload: |
1490kg (varies to final design) |
|
|
GVW: |
3765kg |
|
|
Axle Loads: |
1530/2235kg |
|
|
Engine
|
Engine Model: |
4KH1CN5HD |
|
Max output: |
96kw |
|
|
Displacement: |
2999ml |
|
|
Horsepower: |
130ps |
|
|
Fuel Type: |
Diesel |
|
|
Exhaust Gas Treatment Technology: |
DPF |
|
|
Transmission |
Transmission: |
Manual |
|
Forward Gear: |
5 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake
|
Hydraulic Brake |
|
|
Front Drum Rear Drum |
||
|
Generator |
12V |
|
|
Cab |
Number of Seats: |
2+3 |
|
Cabin Type |
Double Row |
|
|
Chassis |
Drive Type: |
4x4 |
|
Tires:
|
5 (Including Spare Tire) |
|
|
Tire Model: |
265/65R18 |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
76L |
|
|
Configurations:
|
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Free Maintenance Battery |
|
|
6 |
Box Protection Frame |
|
|
Top Brand |
Handler |
|
|
Basket |
Fiberglass single-person construction:600x700x1000mm, withstand 50kV lining bucket, multifunctional handle moves all direction of bucket. |
|
|
Boom |
section articulated boom + 2-section telescoping boom |
|
|
Rated Voltage |
0.4/10 kv |
|
|
Basket Rated Load |
120kg |
|
|
Max. Work Height |
12.7m |
|
|
Bucket Rotation |
±90° |
|
|
Span of Outrigger |
Longitudinal(left/right) 2580/1855mm Crosswise(front/rear) 1855mm |
|
|
Boom Rotation Speed |
40≤t≤100 s/r |
|
|
Bucket Acting Time |
60≤t≤120 s |
|
|
Outriggers Acting Time |
≤100 s |
|
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly.

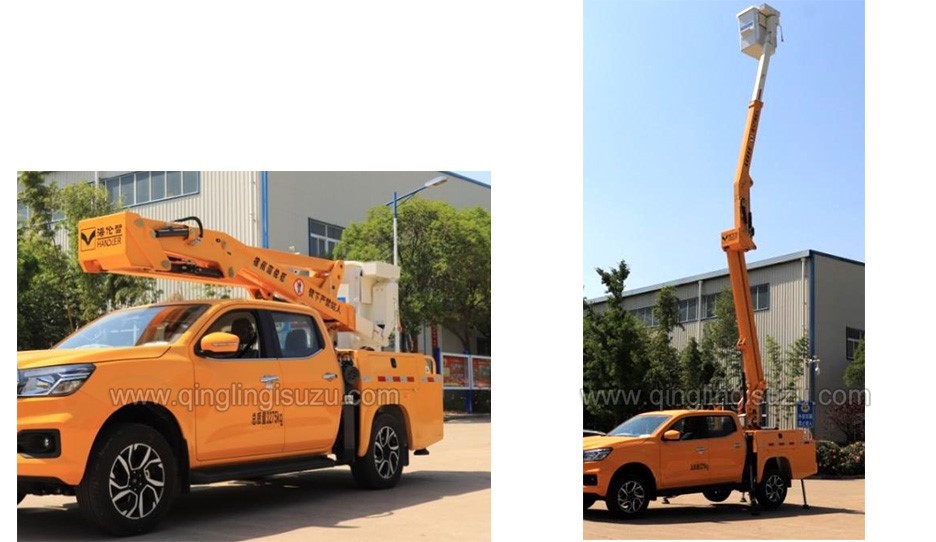

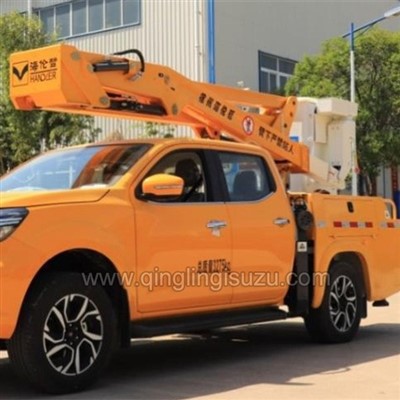

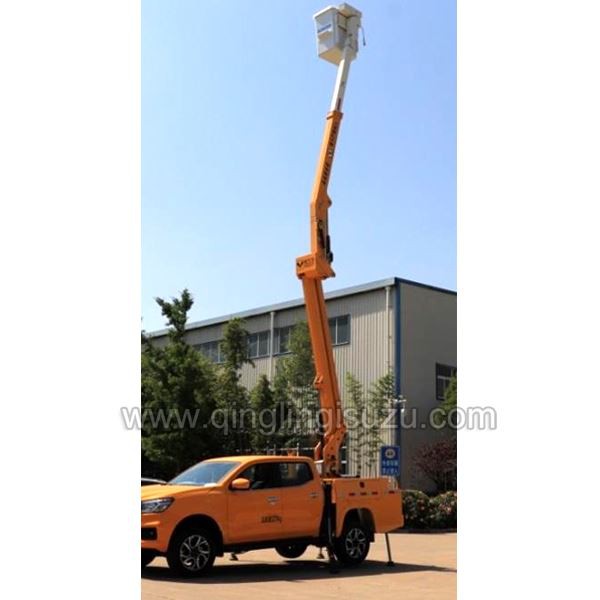

Photos reference:

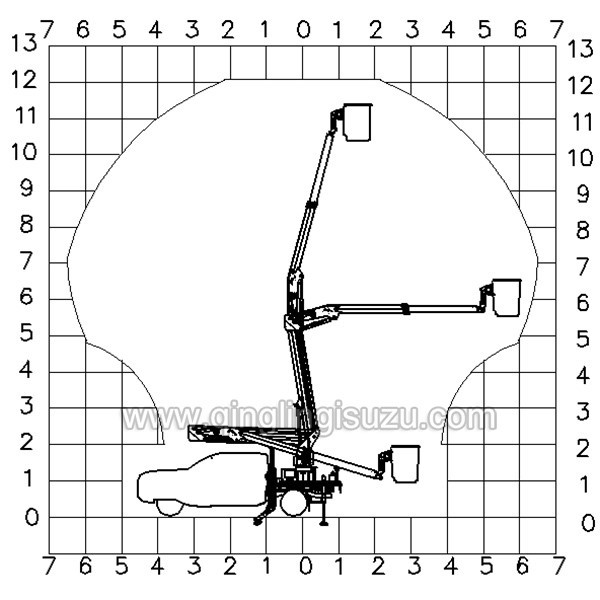

Working Range
