19.3m Insulated Bucket Truck

Telescopic boom

It can work with electricity on because of multiple insulating layers, easy operation, and a broader and higher working range.

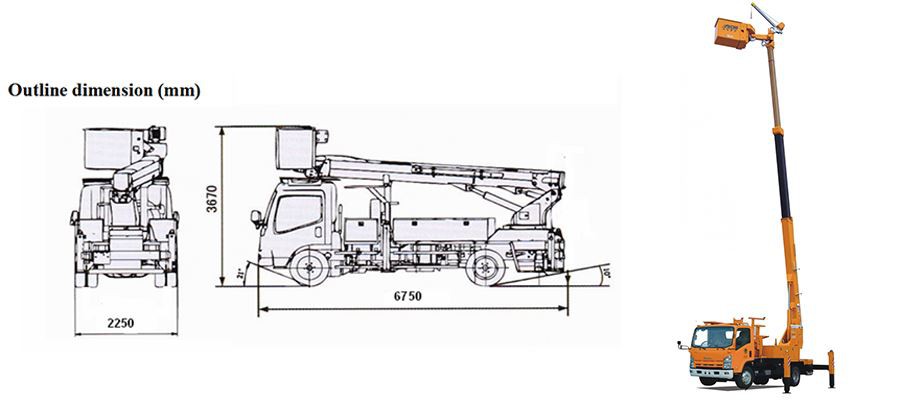

Working height and radius

This vehicle has a maximum working height of 22.7 meters / 74.48 feet and a working radius of 12.7 meters / 41.67 feet.

Low noise

This model only generates approximately 55 decibels during operation (lower than a human speaking voice); no disturbing at night.

Hoisting capacity

It can hoist a maximum of 490kg weight during aerial operation.

Overload alert system

Any overload condition will show on the system, better protecting the vehicle.

Automatic control

Different outrigger range for different road condition;

Built-in cable

No exposure to the open field; prevent the cable from being accidentally cut.

No overlap between boom and bucket

This function prevents any accidental contact between boom and bucket; no visual inspection requires.

Internal lock mechanism

If one of them is not set among the outrigger, the boom, and the bucket, the rest of the parts cannot move.

One-touch retraction for boom and bucket

It goes by retraction, rotation, and down.

Economical

The engine can turn off approximately 85% energy saving during bucket operation.

ISUZU CHINA 700P 4x2 Insulated Bucket Truck Specifications (Euro V)

Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly；

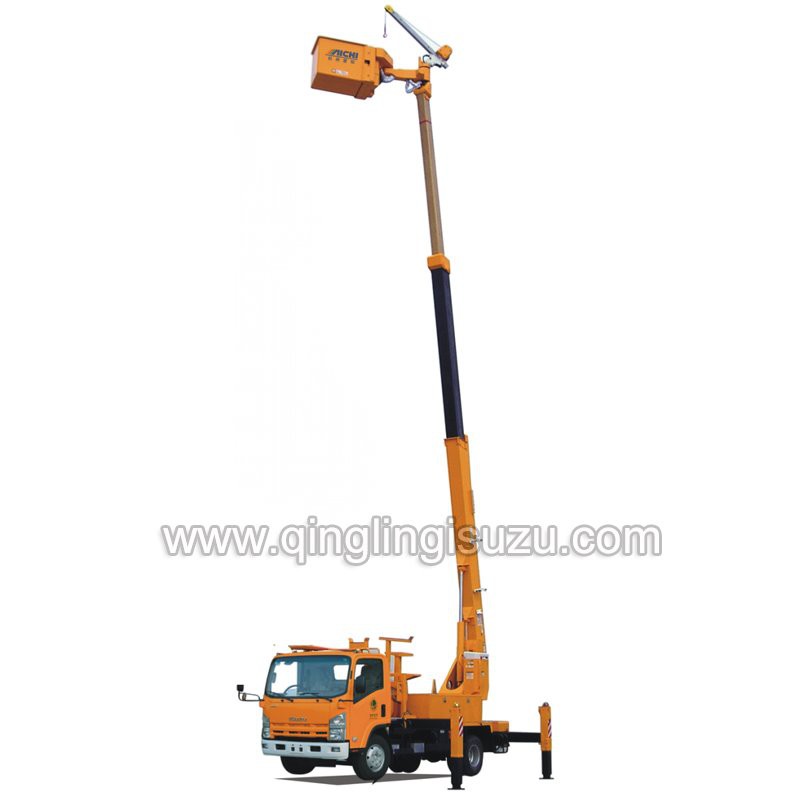

Photo for Reference:
