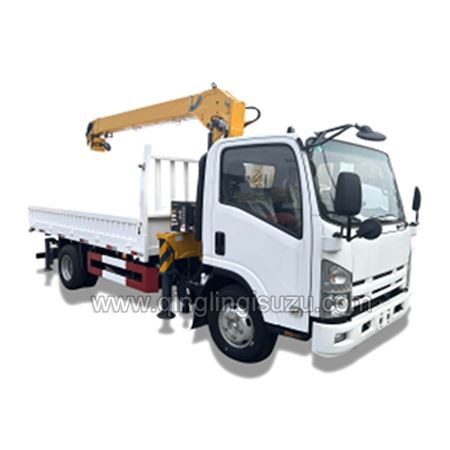

This crane truck is converted from Qingling Isuzu KV600 chassis with 130 horsepower using Isuzu engine model 4KH1CN5HD which is competent to reach durability and strength. It conforms to Euro 5 emission standard by installing DPF on the rear of the vehicle. The transmission has 5 forward gears and 1 backward gear.
![[[smallImgAlt]]](jpg/3-ton-crane-lorry-truck38321565670-2.jpg)
Description of vocational Features:
This vehicle is capable to lift heavy loads with a maximum of 3 tons to 9.4 meters high. It is commonly used in construction industries due to its various benefits such as better site accessibility, safe work on height, and no risk of accidents and injuries. If you are interested in this vehicle, please feel free to contact us. Any special requirements regarding the specifications and configurations can be discussed and met accordingly.
——Single cylinder synchronization guy cable technology makes work efficiency higher than before.
——Compact hinge point design take up smaller space
——The work is safer after being fitted with over wind alarm equipment.
——The integer lifting winch improved the work efficiency greatly and prolonged the work life of the hydraulic system.
——Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
——Self-designed&developed slewing machine with greater drive force can meet varied requirements of working situations.
——Anti-slewing impulse equipment that makes vehicles run safely.
——Strong power, strong carrying capacity, and fast running speed
——Low fuel consumption, more prominent ultra-low operation cost at the time of high fuel price
——It is provided SCR/PF/DPF three kinds of post-processing systems, PF and DPF without the addition of urea. No urea device has better refitting adaptability.
——ISUZU world-leading 4KH1CN-type brand new diesel engine with fully-electronic precise control and high-pressure common rail with stronger power, lower oil consumption, better oil adaptability, and better low-temperature starting property. The engine has strong power, low fuel consumption, reliability, and durability.
ISUZU CHINA KV600 4x2 3Tons Crane Truck Specifications (Euro V)
Vehicle Model: | QL1072A5KAY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6800*2050*3120 |
Wheelbase: | 3815mm | |
Front/ Rear Wheel Distance: | 1685/1525mm | |
Front/Rear Suspension | 1110/1835mm | |
Rear Axle Ratio: | 5.375 | |
Approach/Departure angle: | 19/13° | |
Leaf Spring: | 3/3+2 | |
Weights and Capacities | Curb Weight: | 4570kg |
Payload: | 2600kg | |
GVW: | 7300kg | |
Axle Loads: | 2580/4720kg | |
Engine | Engine Model: | 4KH1CN5HD |
Max output: | 96Kw | |
Displacement: | 2999ml | |
Horsepower: | 130Ps | |
Exhaust Gas Treatment Technology: | DPF | |
Transmission | Transmission: | MSB-5SM |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 12V-60A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16 14PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Top Parameters | Crane Model | SQ3.2SK2Q |
Max.Lifting Capacity | 3000Kg | |
Max.Hook Height | 9.4m | |
Max.Working Radius | 7.56m lift 500kg | |
Boom Sections | 3 | |
Outrigger Extension | 3329mm | |
Outrigger Quantity: | 4(2 front and 2 rear) | |
Max.Pressure of Hydraulic System | 20MPa | |
Pump Capacity | 40ml/r | |
Oil Tank Capacity | 30L | |
Crane Weight | 1100kg | |
Installation Space | 750mm | |
Rotation Angle | 360 Continuous | |
Box Dimension | 3200x1800x380mm | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Retro-reflective Marking | |
4 | ABS | |
5 | Tubeless Tire | |
6 | 90A Alternator | |
7 | Free Maintenance Battery | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

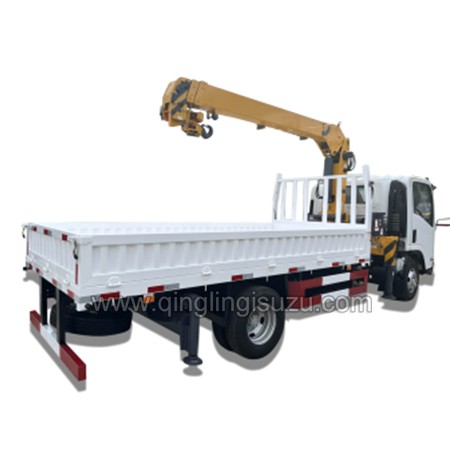

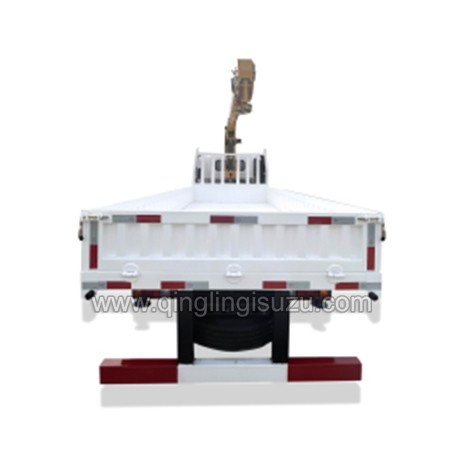

Photo for Reference:
