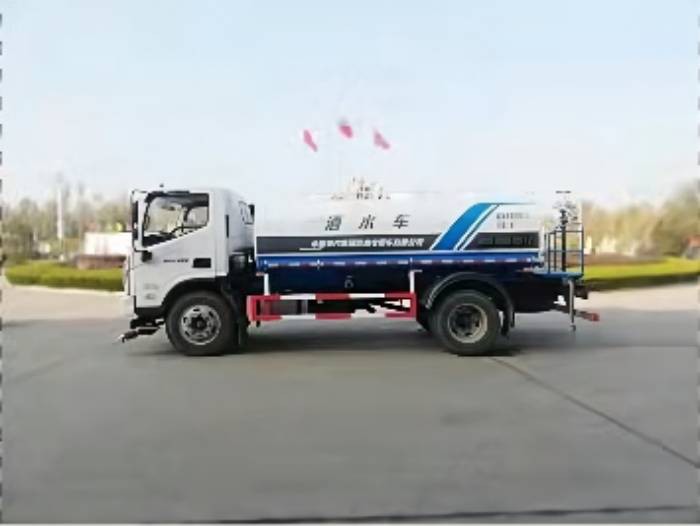

Qingling Mini Sprinkling Truck 4m³ NKR/100P

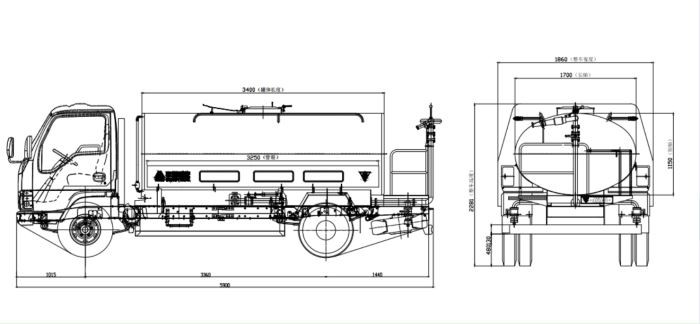

Vehicle Dimensions and Parameters

Overall Dimension(L x W x H)

5900*1860*2750(mm)

Wheelbase:

2765mm (Optional)

Front/ Rear Wheel Distance:

1504/1525mm

Front/Rear Suspension:

1015/1450mm

Approach/Departure angle:

24/16°

Leaf Spring:

3/3+2

Weights and Capacities

Curb Weight:

2906kg

Payload:

5394kg

GVW:

7300kg

Engine

Engine Model:

4KH1CN5HD

Max output:

96Kw

Displacement:

2999ml

Horsepower:

130Ps

Exhaust Gas Treatment Technology:

DPF

Brake

Hydraulic Brake

Front Drum Back Drum

Generator

12V-60A

Transmission

Transmission:

MSB-5

Forward Gear:

5 Speed Gear

Backward Gear:

1 Speed Gear

Cabin

Number of Seats:

2

Chassis

Drive Type:

4x2

Tires:

 7(Including Spare Tire)

Tire Model:

7.00R16-14

Fuel Tank

Number:

1

Capacity:

100L

Top Parameters

Water Tank Volume:

4m3

Water Tank Material:

Carbon steel

Top Configurations:

Equipped with Front spray, rear spray, high-pressure water gun，pressure outlet, self flow discharge, self absorption and other functions

Configurations:

1

Power Steering System

2

Air Conditioning

3

Tubeless Tire

4

Cab Tilting Mechanism

5

ABS

6

Free Maintenance Battery
