Name: QINGLING M100 15 Meters Manlift Truck LHD
Brand: QingLing ISUZU
SKU: 229271925

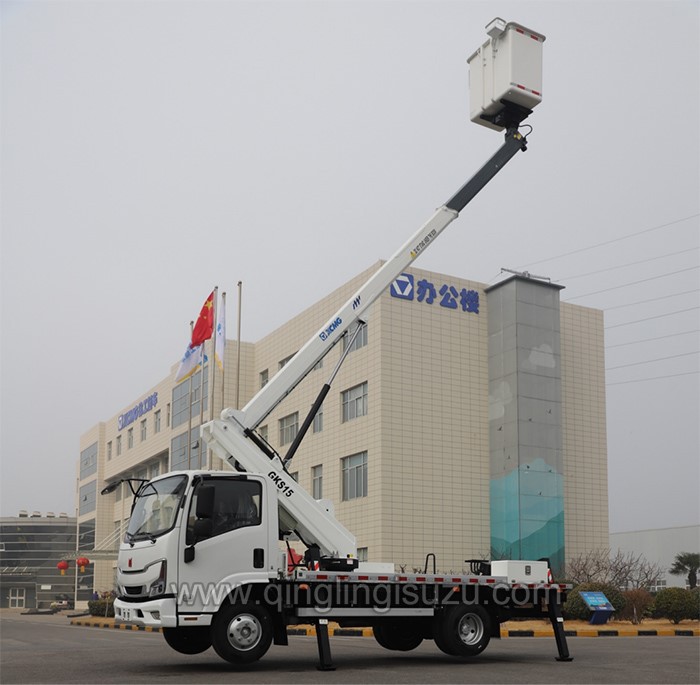

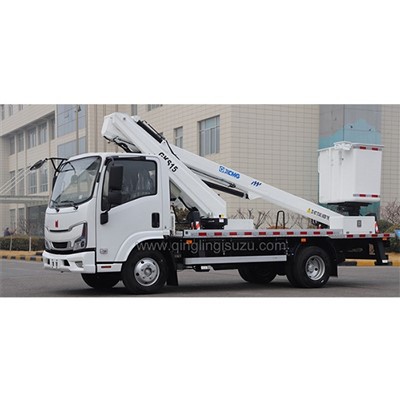

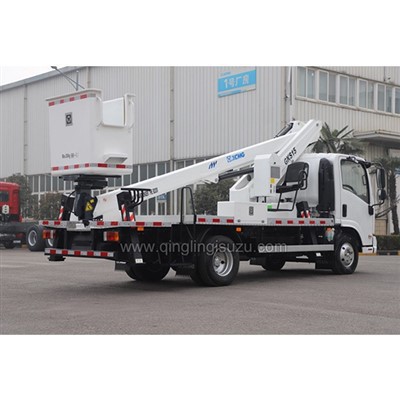

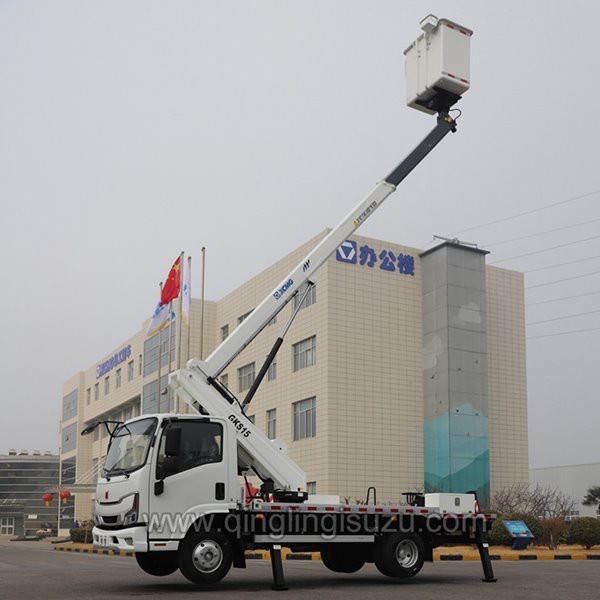

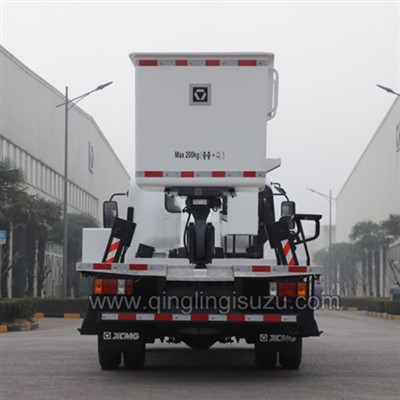

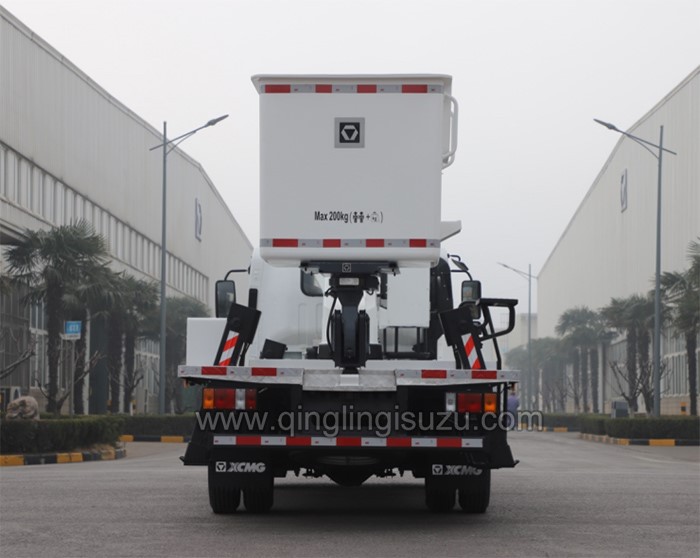

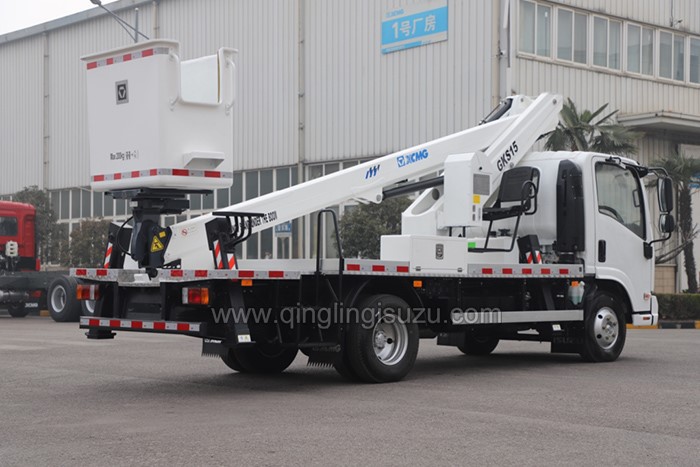

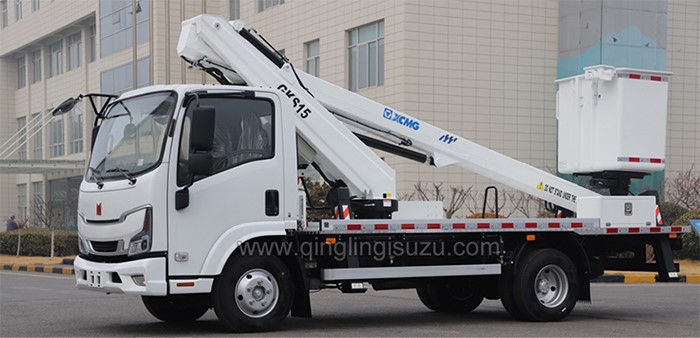

This Manlift truck is composed of Qingling Isuzu M100 chassis and XCMG hopper. The chassis has been completely upgraded with a new front face and a 3-seater cab; The engine is 4KH1CN5HD 130ps; the Wheelbase is 3360mm; GVW7300kg; Hydraulic or air brakes are optional, multifunctional steering wheel, modern body design, low fuel consumption, low maintenance costs, and strong maneuverability. This truck can lift 200 kg of manpower and materials to a height of 15 meters. The maximum height of the bucket bottom is 13.1 meters. This car is an ideal choice for construction work, painting, maintenance and repair tasks, as well as other industrial tasks such as tree pruning, installation of large signs, lighting for movies or theaters, etc. If you are interested in this car, please feel free to contact us at any time. Any special requirements for specifications and configurations can be discussed and met accordingly.

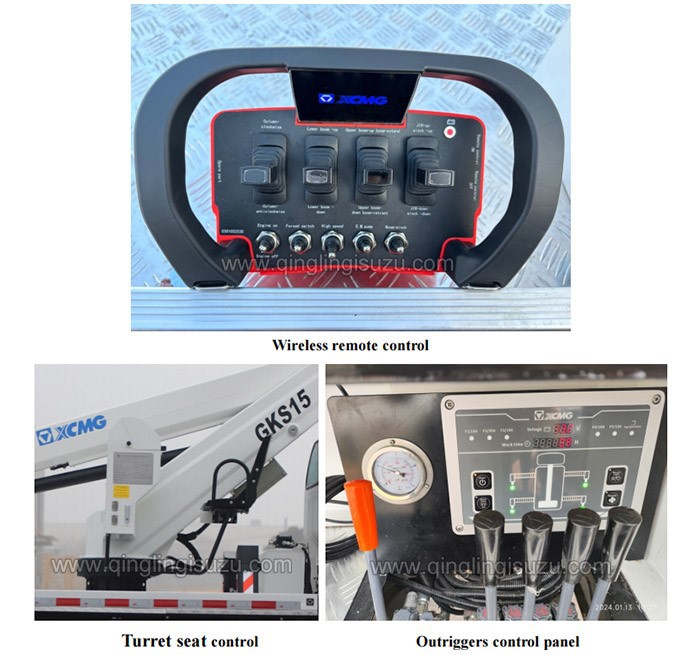

A-type outriggers without horizontal extension. Extremely compact footprint when stabilized.Wireless remote control as standard. By operating the unit from a distance, where the view is better. 360° continuous rotation on both turret and basket as standard for greater agility, more flexible when meeting complex working conditions.XCMG's unique speed control system is smooth and efficient. Built-in telescopic cylinder and pipelines for safety. Streamlined exterior.Fiberglass basket, with 1000V basket insulation.

● Hydraulic system: Electro-hydraulic proportional control

● Electrical system: CAN bus protocol

● Turntable seat and wireless remote control

● Boom and outriggers interlocked, outriggers can be operated separately with safety

inspection.

● Automatic hydraulic leveling system to make sure bucket stable

● Equipped emergency pump

M100 15 meters Manlift Truck Specifications LHD (Euro V)

Vehicle Model		QL1049A5HAY(M55EA-C)
Chassis Parameters	Vehicle Dimension(L x W x H)	6600×2070×2960mm
	Wheelbase	3360mm
	Front/ Rear Wheel Distance	1640/1525mm
	Front/Rear Suspension	1120/1510mm
	Approach/Departure angle	20/21°
	Leaf Spring	3/3+2
Weights and Capacities	Curb Weight	4110kg
	Payload	190kg
	GVW	4495kg
	Axle Loads	1750/2745kg
Engine	Engine Model	4KH1CN5HD
	Cylinder	4 Cylinders in line
	Engine Features	Turbocharging, inter cooling. high-pressure common-rail diesel injection system liquid-cooled engine.
	Torque(N.m/rpm)	290/1500
	Max output	96Kw
	Displacement	2999ml
	Horsepower	130Ps
	Exhaust Gas Treatment Technology	Remove DPF
Transmission	Transmission	MSB-5
	Forward Gear	5 Speed Gear
	Backward Gear	1 Speed Gear
Brake	Air Brake
Brake	Front Drum Back Drum
Generator	12V
Cab	Number of Seats	3
Chassis	Drive Type	4x2
	Tires	7(Including Spare Tire)
	Tire Model	7.00R16
Fuel Tank	Number	1
Fuel Tank	Capacity	100L
Configurations:	1	Power Steering System
	2	Air Conditioning
	3	Chrome plated Corner plate grille
	4	Retro-Reflective Marking
	5	Free Maintenance Battery
	6	Power window and Central lock
	7	New style steering wheel with multi-function and clock spring
	8	reversing radar
	9	Central lock/ Power window
	10	Remote key
Hopper	Brand	XCMG
	Model	GKS15
	Max. working height	15.1 m
	Max. bucket bottom height	13.1 m
	Max. outreach (From the center of turntable)	9.3 m
	Max. loading capacity	200 kg
	Bucket dimension	1100 × 700 × 1100 mm
	Bucket material	Fiberglass, 1000V insulation
	Rotation of turntable	360° continuous
	Rotation of bucket	360° continuous
	Boom type	2 sections telescoping boom
	Outrigger span	2150 mm, A type
	Operation	Wireless remote control and turret seat
