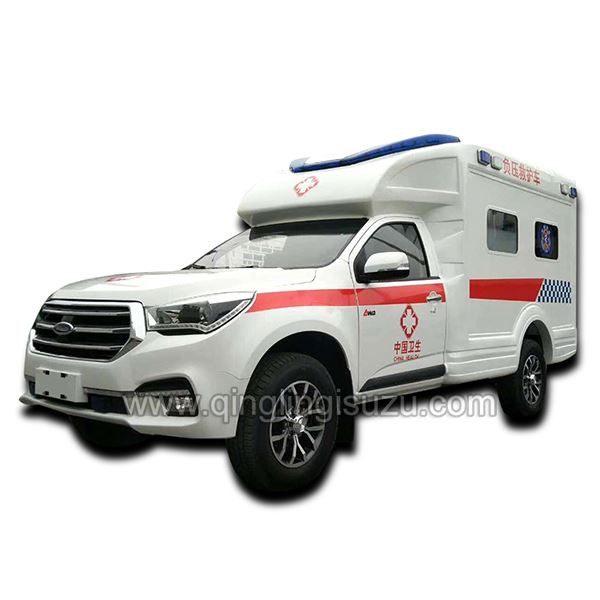

Qingling TAGA Brand New 4*4 Negative Pressure Ambulance Pick Up

Overall   Dimension:(L x W x H)

5850×1930×2550(mm)

Box Dimension: (L   x W x H)

2580×1730×1620(mm)

Curb   Weight:

2795(Kg)

Vehicle   Parameters

GVW:

3120(Kg)

Wheelbase:

3406(mm)

Drive   Type:

4x4

Engine   Model:

4KH1CT5H1

Engine

Engine   Power:

96(kw)

Number of Cylinder:

4

Displacement:

2999(ml/cc)

Horsepower:

130PS

Transmission

Manual

Transmission

Forward gear:

5 Speed Gear

Reverse   gear:

1 Speed Gear

Cab

Type of cab:

Single Row

Seats:

5

Front/Rear   Track:

1570/1570mm

Tires:

5(Including spare tire)

Axle   Loads:

1360/1760kg

Approach/departure angle (°):

33/20(°)

Chassis

Number   of springs:

-/5 pcs

Maximum   speed (km / h):

140km/h

Tire   model:

245/70R17LT

Front / rear suspension:

945/1499(mm)

Fuel tank capacity (liters):

53L

Appearance of   Negative Ambulance:

Structure:

Square cabin

Modeling   concept:

RV’s   modeling concept, equipped with Built-in multi-point highlight arc LED   warning light

Medical   Cabin Interior:

Internal   layout:

Adopting the international   mainstream ambulance three-zone design, reasonably distribute the functional   areas in the cabin

Device layout:

Equipped with fast device bracket,   adhering to the one-arm operation concept

Internal device:

Multiple sterilization and   purification, it can reach more than 99.99% filtering effect for 0.3 micron   aerosol particles

Negative pressure body device:

The ventilation volume reaches 510m³ / h, and the national   standard negative pressure value can be reached within 3 seconds in the   medical cabin

Cabin Internal design：

It has the physical isolation froms   a strong pressure gradient between the medical cabin and the cab, ensuring   the safety of drivers and passengers.

Smart Device:

Smart truck networking system:

It can do a series of smart   emergency functions such as smart emergency dispatch, advance triage, remote   consultation, patient physical data transmission, remote transmission of   medical equipment data, and automatic analysis and reporting.

Location monitoring:

GPS + BeiDou satellite dual-mode   positioning monitoring

Electric Smart Pedal:

Electric smart pedals are settled on the sides and rear of the vehicle

Stretcher:

Convenient  transporting  stretche  is     equipped

Standard   Configuration of Negative Ambulance:

1

Negative   pressure device

2

Oxygen cylinder

3

Fire extinguisher

4

Control panel and camera

5

Bottle ring

6

Folding cart

7

UV disinfection lamp

Optional Configuration

1

ECG machine

2

Truck  defibrillation monitor

3

Truck ventilator

4

Electric suction device
