The combo vacuum truck can unblock the underground pipes, suck the sludge, separate the waste liquid from the sewage and discharge it back to the underground. Dredging the river and emergency response to sudden environmental pollution accidents are some of the many activities it can pull off too. It also has optional sewage recycling and numerical control technology to improve the vehicle’s overall function and automation level...
The combo vacuum truck can unblock the underground pipes, suck the sludge, separate the waste liquid from the sewage and discharge it back to the underground. Dredging the river and emergency response to sudden environmental pollution accidents are some of the many activities it can pull off too. It also has optional sewage recycling and numerical control technology to improve the vehicle’s overall function and automation level.
Vacuum suction: Our premium vacuum pump has a high vertical suction range and long horizontal suction distance. Wide diameter hoses make the thick, heavy, sizeable substance easy to pass.
High-pressure unblocking: Adjustable pressure to achieve large flow, long unblocking distance, hydraulic retracting/releasing hoses with different suitable nozzles according to the actual working conditions.
Various discharge methods: gravity discharge, pressure discharge, etc.
Remote control boom: 360°directions.
Sludge separation: By the separation system in the tank, the waste liquid can be filtered out and discharged back to the underground. An additional function is sending the dry material up to the silo.
Safety design: Multiple sets of self-protection devices to prevent improper operations or other causes of safety accidents, minimizing the malfunction to avoid unnecessary downtime.
Chassis Model: | QL5330TZZU1VDZY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 11120x2540x3935mm |
Wheelbase: | 5820+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1855/1855mm | |
Front/Rear Suspension | 1370/2950mm | |
Approach/Departure angle: | 17/18° | |
Leaf Spring: | 8/10 | |
Weights and Capacities | Curb Weight: | 17580kg |
Payload: | 15290kg | |
GVW: | 33000kg | |
Axle Loads: | 7000/26000/26000kg | |
Engine | Engine Model: | 6UZ1-TCG51 |
Max output: | 279Kw | |
Displacement: | 9839ml | |
Horsepower: | 380Ps | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF8S2230TO |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-120A | |
Cab | Number of Seats: | 2 |
Cabin Type: | Standard Roof One Bed | |
Chassis | Drive Type: | 6x4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 315/80R22.5-18PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Central Lock | |
4 | Power Window | |
5 | Driving Data Recorder | |
6 | Tubeless Tire | |
7 | ABS | |
8 | Free Maintenance Battery | |
9 | Front Chrome Kit | |
10 | Aluminum alloy gas tank | |
11 | Air Suspension Cabin | |
12 | Air suspension Seat | |
Top Parameters | Pressure-Vacuum Tank Volume | 9000L |
Clean Water Tank Volume | 5000L | |

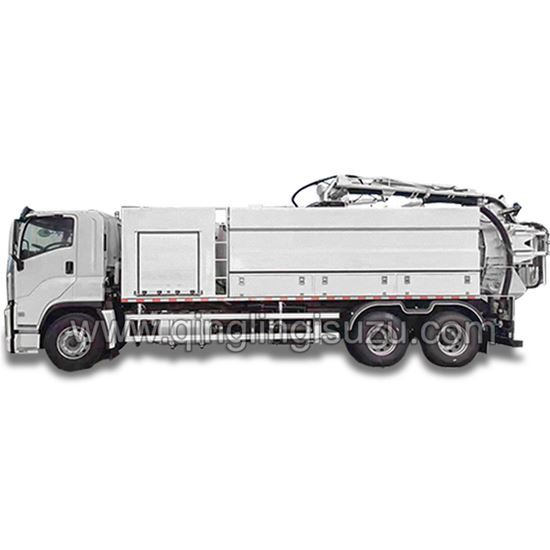

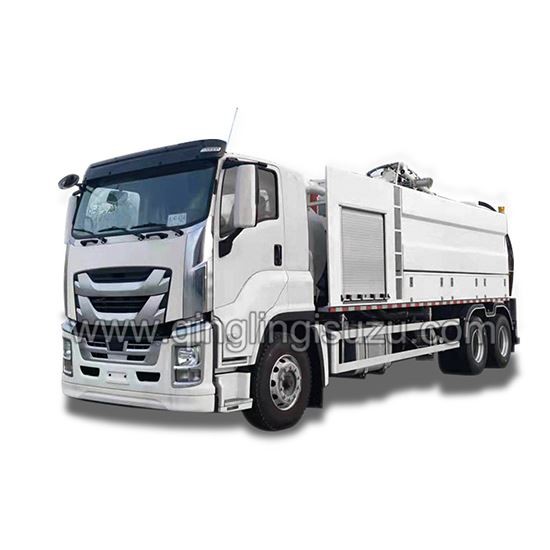

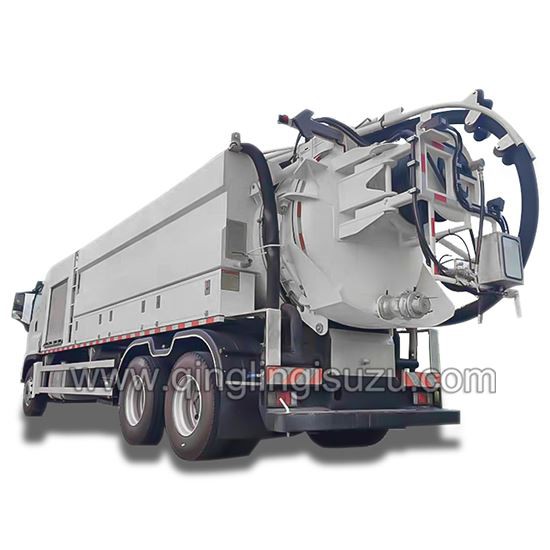

Photo for Reference:
