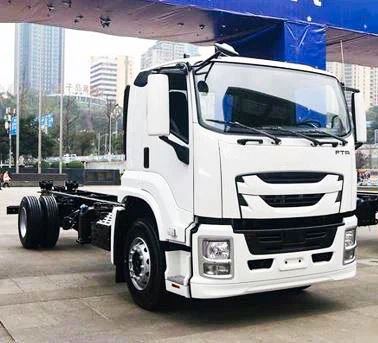

The new Isuzu FTR truck will provide you with more wheelbase options such as 3900 and 7300. The size of the short axle FTR vehicle (length x width x height) is 6835x2540x2810mm, and the wheelbase is only 3.9 meters. Such a short chassis is mainly used for the modification of special vehicles, not for ordinary logistics purposes. It is convenient for customers to choose more suitable trucks according to their own needs under the same horsepower and load capacity.
The new FTR model is based on Isuzu's original world-leading quality 4HK1-TC50 with Japanese technology and has developed a Euro VI emission 4HK1-TCG60 engine. The in-line four-cylinder diesel engine has a maximum output of 205 horsepower and a maximum torque of 650 Nm. MLD-6Q six-speed manual gearbox adopts Isuzu technology, high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion, exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and noise. The perfect combination Diesel Truck.
|
Vehicle Model |
QL1180JQFRY |
|
|
Vehicle Dimensions and Parameters |
Overall Dimension |
8685x2530x2810(mm) |
|
Wheelbase |
5550mm |
|
|
Front/ Rear Wheel Distance |
1960/1855mm |
|
|
Front/Rear Suspension |
1335/2115 mm |
|
|
Weights and Capacities |
Curb Weight |
5600(kg) |
|
GVW |
18000kg |
|
|
Axel Loads |
6500/11500 kg |
|
|
Engine |
Model |
4HK1-TCG60 |
|
Power |
150Kw |
|
|
Displacement |
5193ml |
|
|
Exhaust Gas Treatment Technology |
DPF+SCR |
|
|
Cab |
Number of Seats |
3 |
|
Chassis |
Drive Type |
4x2 |
|
Tires |
7(Including Spare Tire) |
|
|
Fuel Tank |
Capacity |
200L |
|
Configurations |
Power Steering System |
|
|
Air Conditioner |
||
|
Retro-reflective Marking |
||
|
ABS |
||
|
Free Maintenance Battery |
||
