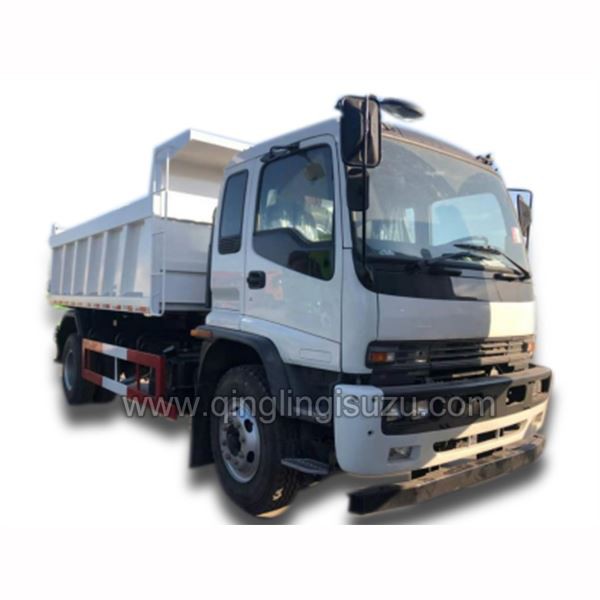

This dump truck is converted from Qingling Isuzu FTR chassis mounted with dumper body with 10m³volume. It’s powered by the Isuzu engine model 4HK1-TC50 with 205 horsepower. The exhaust gas after-treatment system applied in the truck is DPF, and the emission standard is Euro 5. The highest speed of the truck reaches 105km per hour. And the transmission has 6 forward gears and 1 backward gear. It’s capable to reach reliable durability and strength at a reasonable price.
Description of Vocational Features
This dump truck is an ideal choice for users who want to load various building materials such as stones, cement, sand, soil, and bricks at construction sites since the dumper can be operated hydraulically which would be convenient for users to upload loose materials or heavy items without an effort. Any special requirements for the specifications and configurations can be discussed and met accordingly.
ISUZU CHINA FTR 4x2 10m³ Dump Truck Specifications (Euro V)
Vehicle Model: | QL1180VMFRY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 8500×2490x3100mm |
Wheelbase: | 4500mm | |
Front/ Rear Wheel Distance: | 1960/1855mm | |
Front/Rear Suspension | 1335/1735mm | |
Rear Axle Ratio: | 5.571 | |
Approach/Departure angle: | 15/17° | |
Leaf Spring: | 7+7/7 | |
Weights and Capacities | Curb Weight: | 5250kg |
GVW: | 18000kg | |
Axle Loads: | 6500/11500kg | |
Engine | Engine Model: | 4HK1-TC50 |
Max output: | 151Kw | |
Displacement: | 5193ml | |
Horsepower: | 205Ps | |
Exhaust Gas Treatment Technology： | DPF | |
With VGT | ||
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 11.00R20 | |
Fuel Tank | Number: | 1 |
Capacity: | 200L | |
Top Parameters | Box Volume: | 10m³ |
Box Dimension: | 4500*2300*1000mm | |
Lifting Type: | Middle Lifting | |
Thickness: | Bottom 6mm, Side 4mm | |
Configurations: | Power Steering System | |
Air Conditioning | ||
Speed Light & Large Indoor Light | ||
ABS | ||
Free Maintenance Battery | ||
Central Lock | ||
Power Window | ||
Driving Data Recorder | ||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

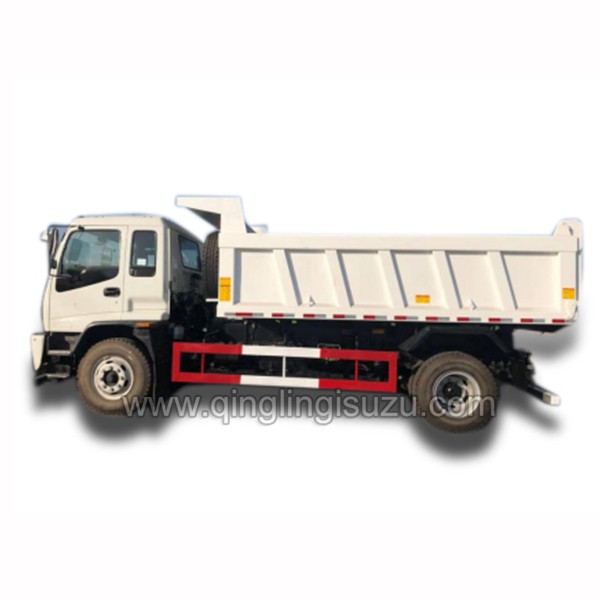

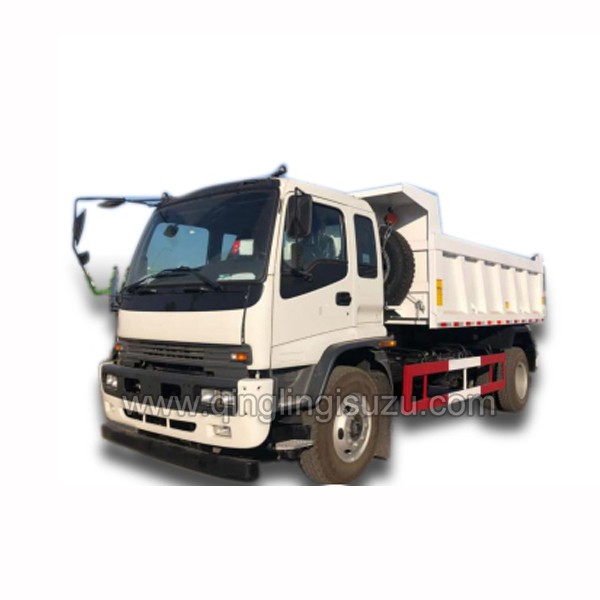

Photo for Reference:
