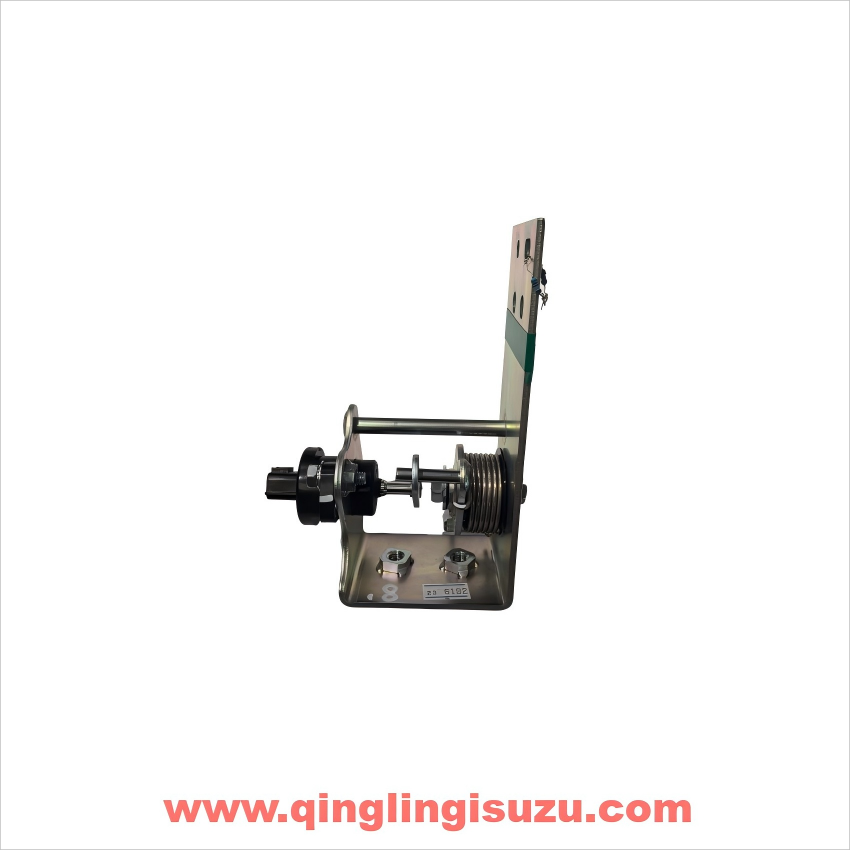

Name: 8972194664 Joystick Assembly Remote Throttle
Brand: QingLing ISUZU
SKU: 253346656

Remote throttle is a technology that allows the engine throttle to be controlled from a distance, depending on the length of the wire. Its function is to control other auxiliary functions related to the engine. For example, when a truck crane is traveling, it uses the main throttle, and when lifting heavy objects, it needs to switch to the upper throttle, also known as the hand throttle.

The remote throttle control system has the following control methods:
1. Throttle conversion control: this control mode can change the engine speed arbitrarily in different use cases, with a wide range of variable speed, more flexible, and flexible remote throttle installation position. If you use this method, the on-board throttle and off-board throttle must be implemented interlock function, cement mixer trucks are more often used in this way.
2. Cruise control: this control mode can also change the engine speed. If the car is equipped with cruise control system switch, we can also use the cruise control system reset switch to activate the PTO role, or cruise control system "plus" and "minus" to control the engine speed. When the reset switch is pressed, the engine speed increases by 1300 rpm. The engine speed can also be changed by controlling the cruise switch. The speed of the car is generally 0-3KM/H. If this method is used, the switch can also be located in different positions for control, the disadvantage is that the speed can not be infinitely controlled, up to 1450 rpm, and the ECU must ensure that the program is open.
3. Polymorphic switch control: this method is generally used in automotive cranes to use, by changing the resistance in series within the polymorphic switch, so that the engine is running at several different speeds set to achieve speed and torque control.
4. A/C switch control: this method is generally used in garbage trucks, the A/C switch is installed in the engine air conditioning and refrigeration system, when the switch is pressed the engine speed is raised to 800 rpm, this speed can also be computerized calibration, according to the user's requirements, it can also be calibrated to a certain speed, such as 1300 rpm. The use of this method can also be controlled, but with the use of air conditioning to produce contradictions.
The use of the above several control methods, the necessary conditions are calibrated at the factory, generally set according to user requirements, if the above hardware connection is normal, it is likely that the program problem, resulting in the system does not work, which requires the engine factory for program brushing.

QINGLING ISUZU MOTORS IMPORT & EXPORT CO.,LTD provides full range of original spare parts for ISUZU trucks and for ISUZU diesel engines. Please contact us for any inquiry.
